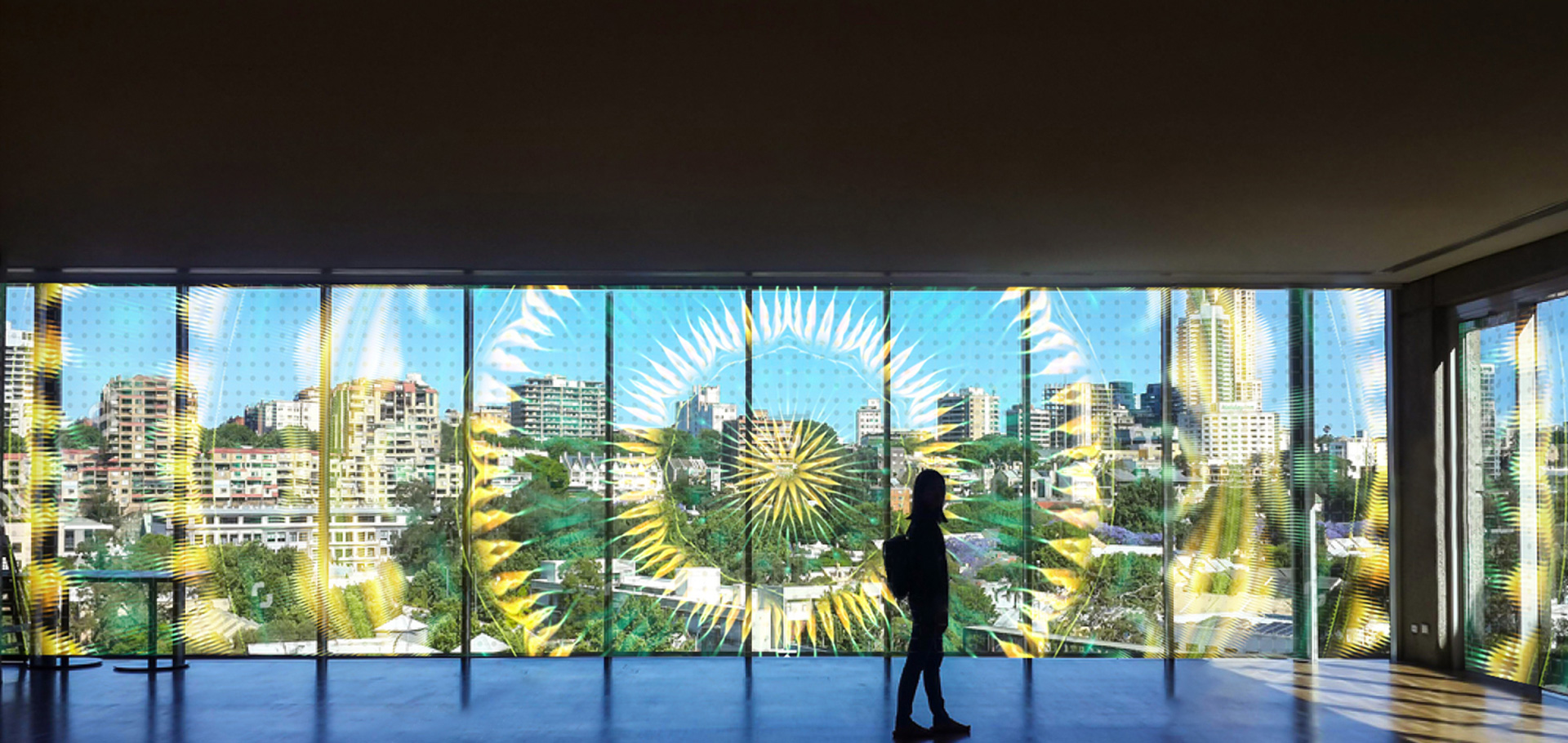

High Transparency-Over 85%
Hollow-carved design to ensure natural lighting of buildings, farewell to "dark display” time.

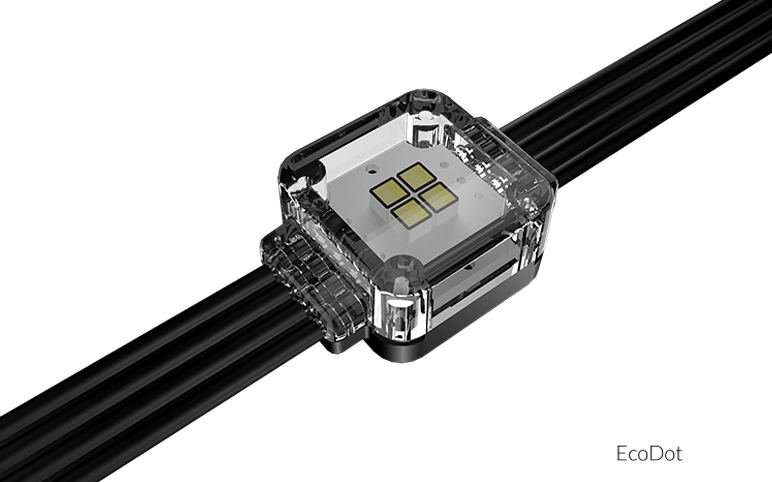

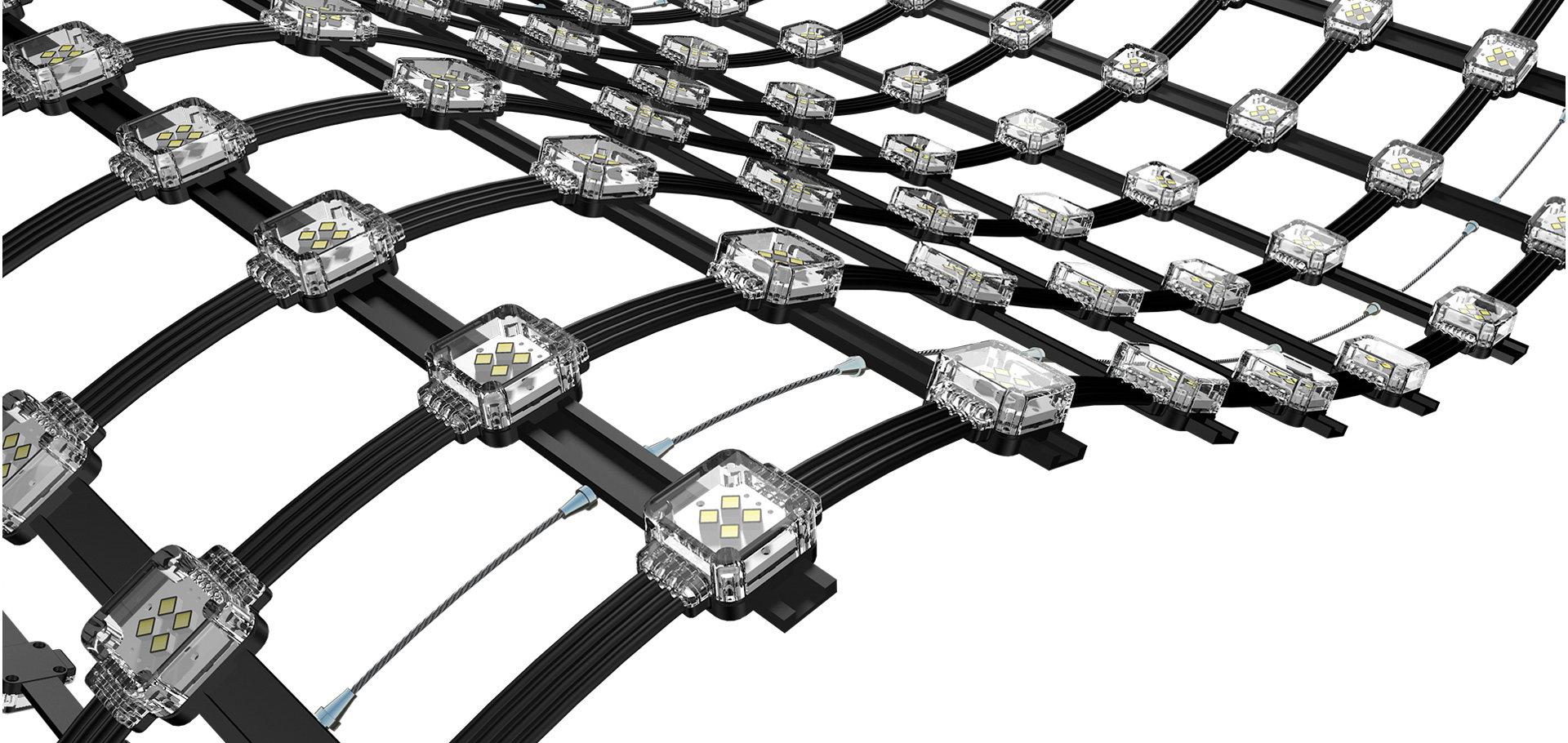

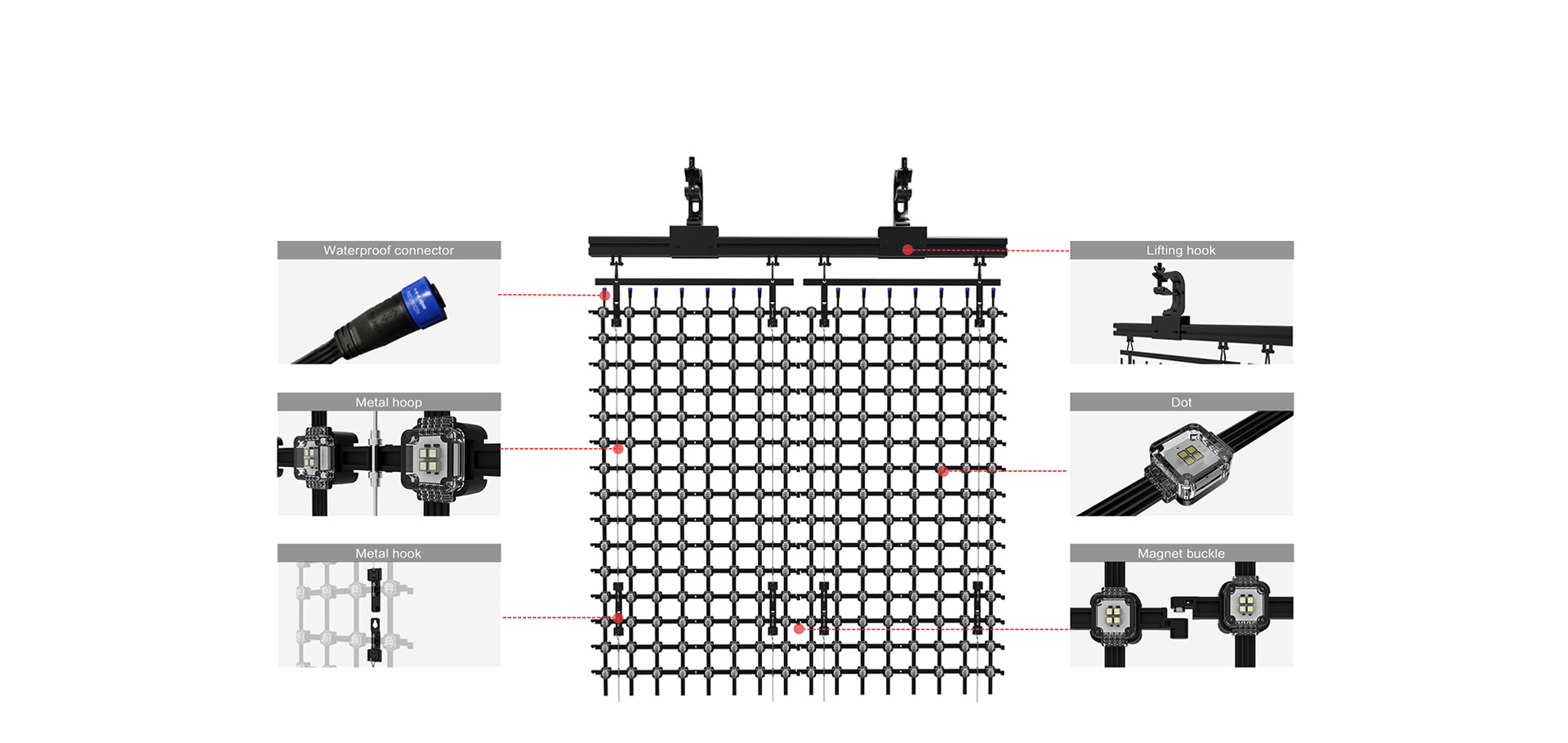

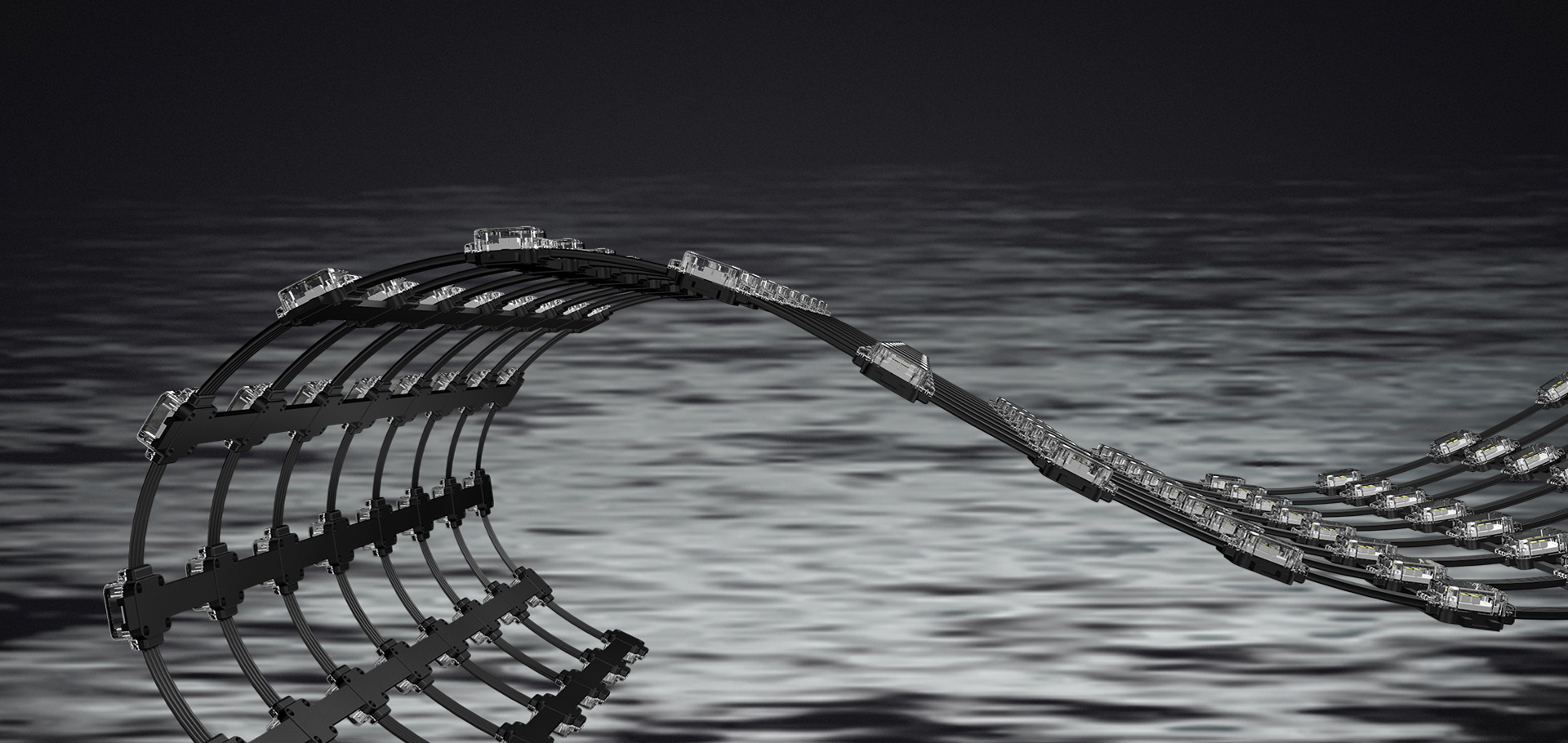

Leyard Vteam conformal LED display is one of the flexible transparent LED display panels. LED dot screens can be waterproof, curved, folded, rolled, and hung with high brightness and waterproof features. This kind of flex LED display can be freely combined into any other shapes with artistic, ornamental, and creative. It's widely applicable for building facades, indoor commercials, import holiday events, and night scene areas. Dot matrix display module for different industry applications.
Pixel Pitch
35mm/40mm/55mm/80mm/100mm/110mm/160mm
| Part Number | EcoDot | Eco LM | Eco SM | ||||||
| Eco-1 | Eco-2 | Eco-4 | Eco LM-1 | Eco LM-2 | Eco LM-4 | Eco SM-1 | Eco SM-2 | Eco SM-4 | |

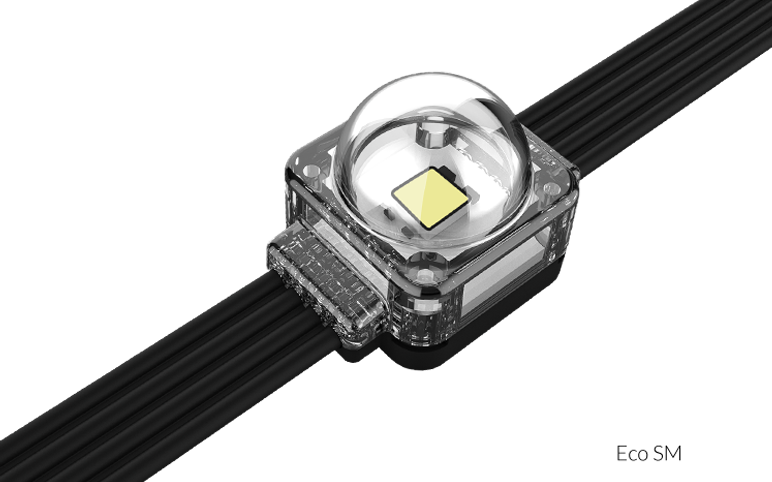

| LED Type | SMD3535 1LED | SMD2727 2LEDs | SMD2727 4LEDs | SMD3535 1LED | SMD2727 2LEDs | SMD2727 4LEDs | SMD3535 1LED | SMD2727 2LEDs | SMD2727 4LEDs |
| Brightness | 2.5CD/dot | 5CD/dot | 10CD/dot | 3.7CD/dot | 7.5CD/dot | 15CD/dot | 2.5CD/dot | 5CD/dot | 10CD/dot |
| The rated voltage | DC7.5V | DC9V | DC15V | DC7.5V | DC9V | DC15V | DC7.5V | DC9V | DC15V |
| DOT.Power Consumption | 0.45W/dot | 0.6W/dot | 0.9W/dot | 0.45W/dot | 0.6W/dot | 0.9W/dot | 0.45W/dot | 0.6W/dot | 0.9W/dot |
| DOT Size | 18X18X10.5mm | 18X18X10.5mm | 18X18X10.5mm | 18X18X15.4mm | 18X18X15.4mm | 18X18X15.4mm | 18X18X17.9mm | 18X18X17.9mm | 18X18X17.9mm |
| DOT Weight | <4.6g /Pixel | <4.6g /Pixel | <4.6g /Pixel | <5g /Pixel | <5g /Pixel | <5g /Pixel | <5g /Pixel | <5g /Pixel | <5g /Pixel |
