Smart Series Led Mesh Screen Outdoor
+

Smart Series Smart LED Display Screen

LEYARD VTEAM Smart led display screen is an outdoor LED mesh screen series, its unique soft structure allows the screen to bend, roll up, hang and fold a variety of unique shapes. The smart LED screens are widely used in the stage background design, bar, building facades, and a variety of scene layout and decorative lighting.


Pixel Pitch of Flexible LED Display Panels:

55mm/80mm/100mm/110mm/160mm/ x mm

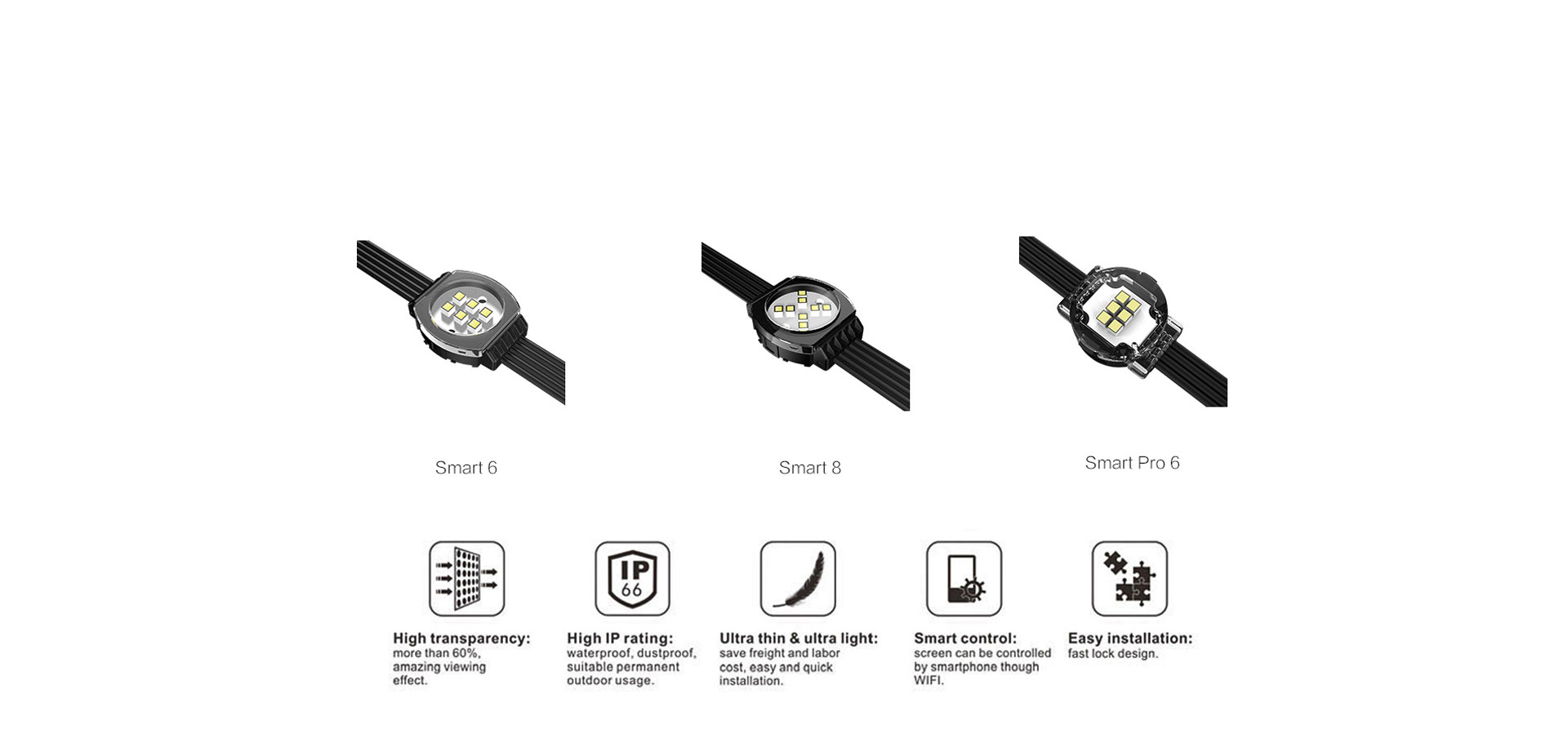

Features of Smart LED Display Screen

Smart LED Screen

Leyard provides three main types of smart LED display with high transparency, high IP rating, ultra-thin & ultra-light, smart control, easy installation properties.
Smart LED Screen

Flexible LED Display Screen

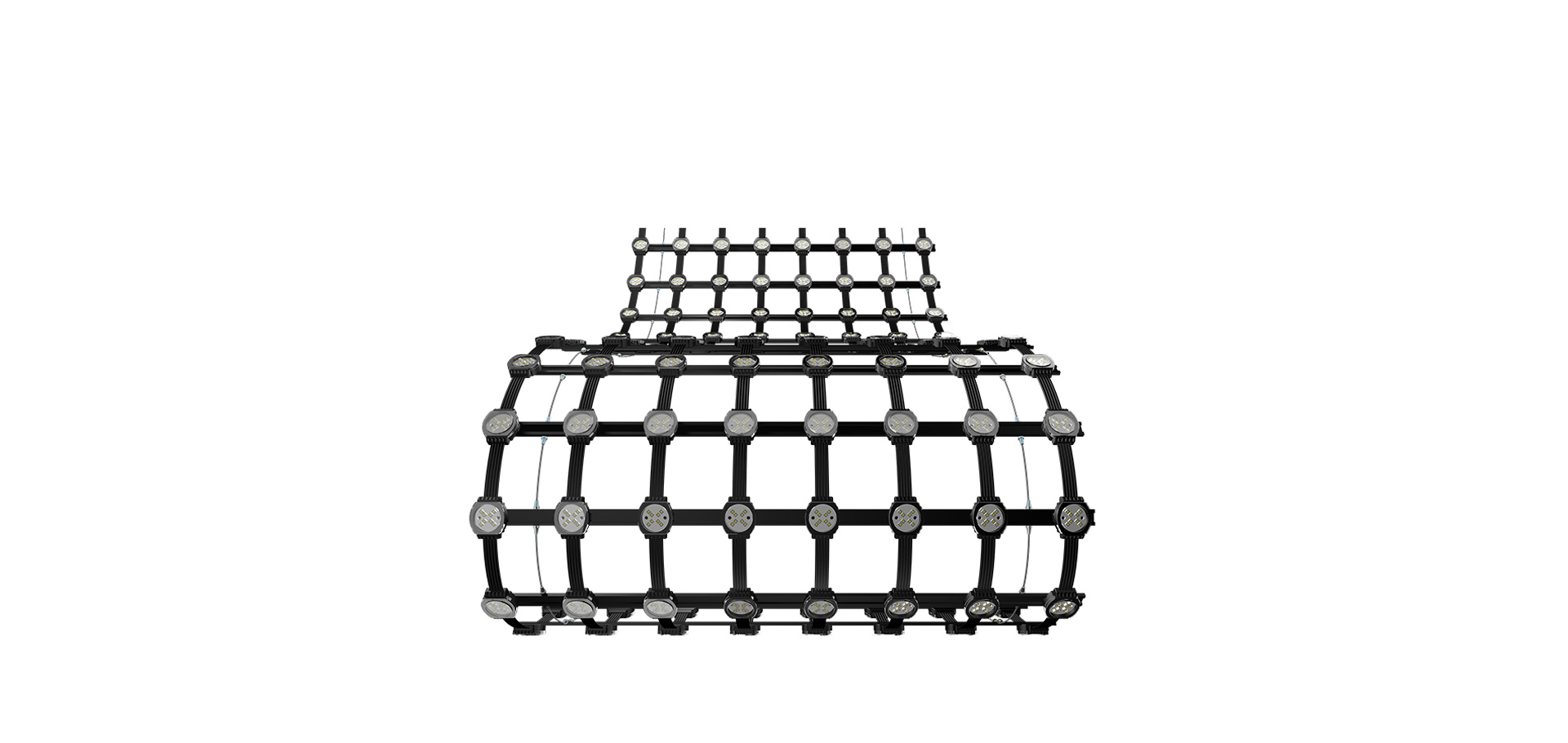

LED mesh display is easy to bend, roll up, hang up and fold.
Flexible LED Display Screen

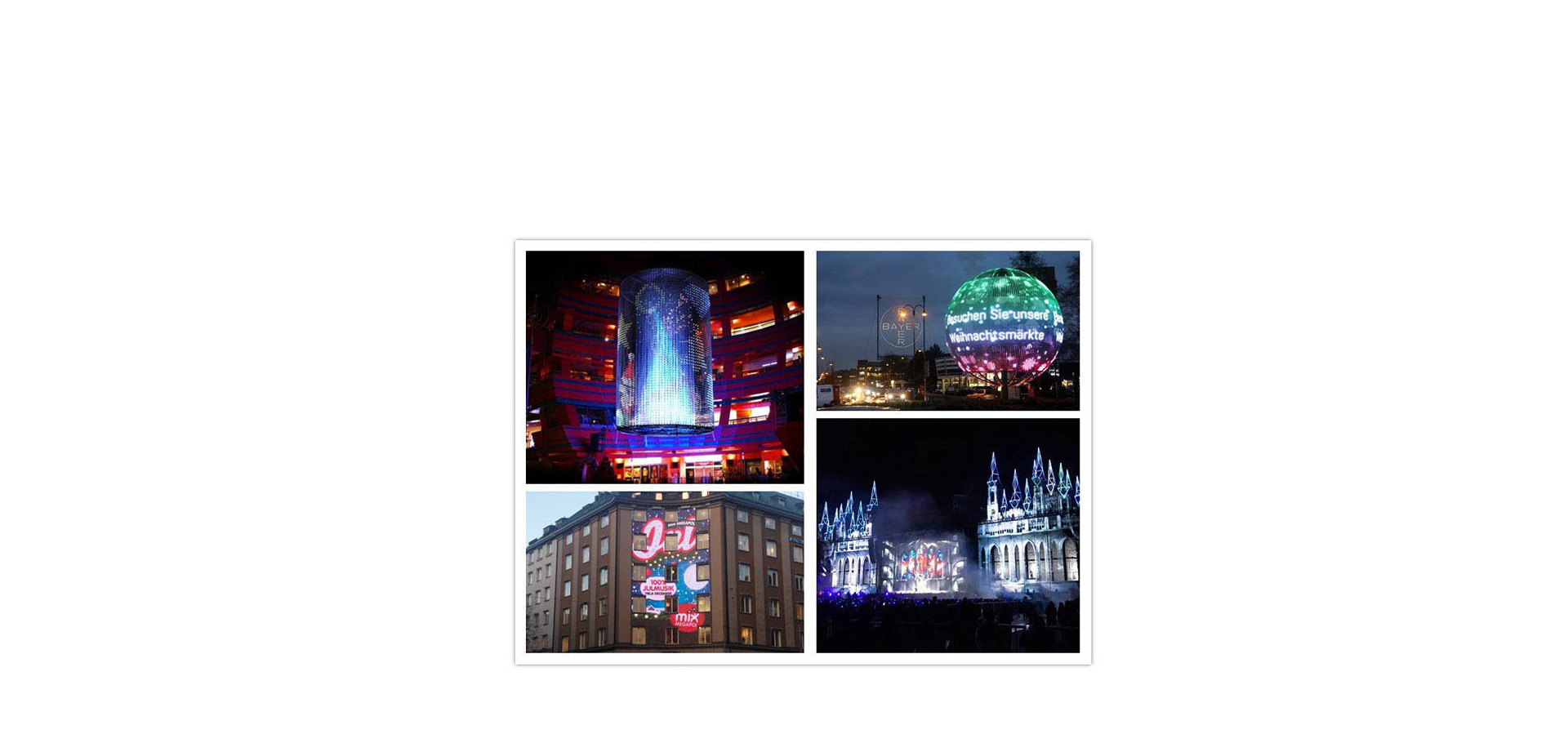

Flexible LED Display Panels To Meet Any Kind Of Applications

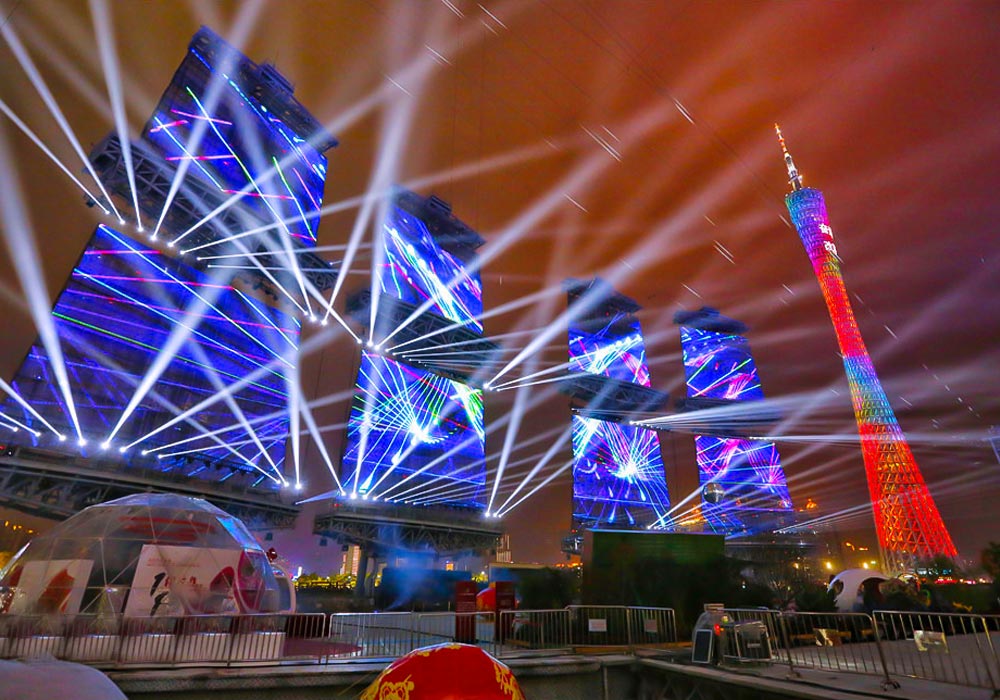

Creative solutions of real 3D, spherical shape, building advertising and lighting, stage background.
Flexible LED Display Panels To Meet Any Kind Of Applications

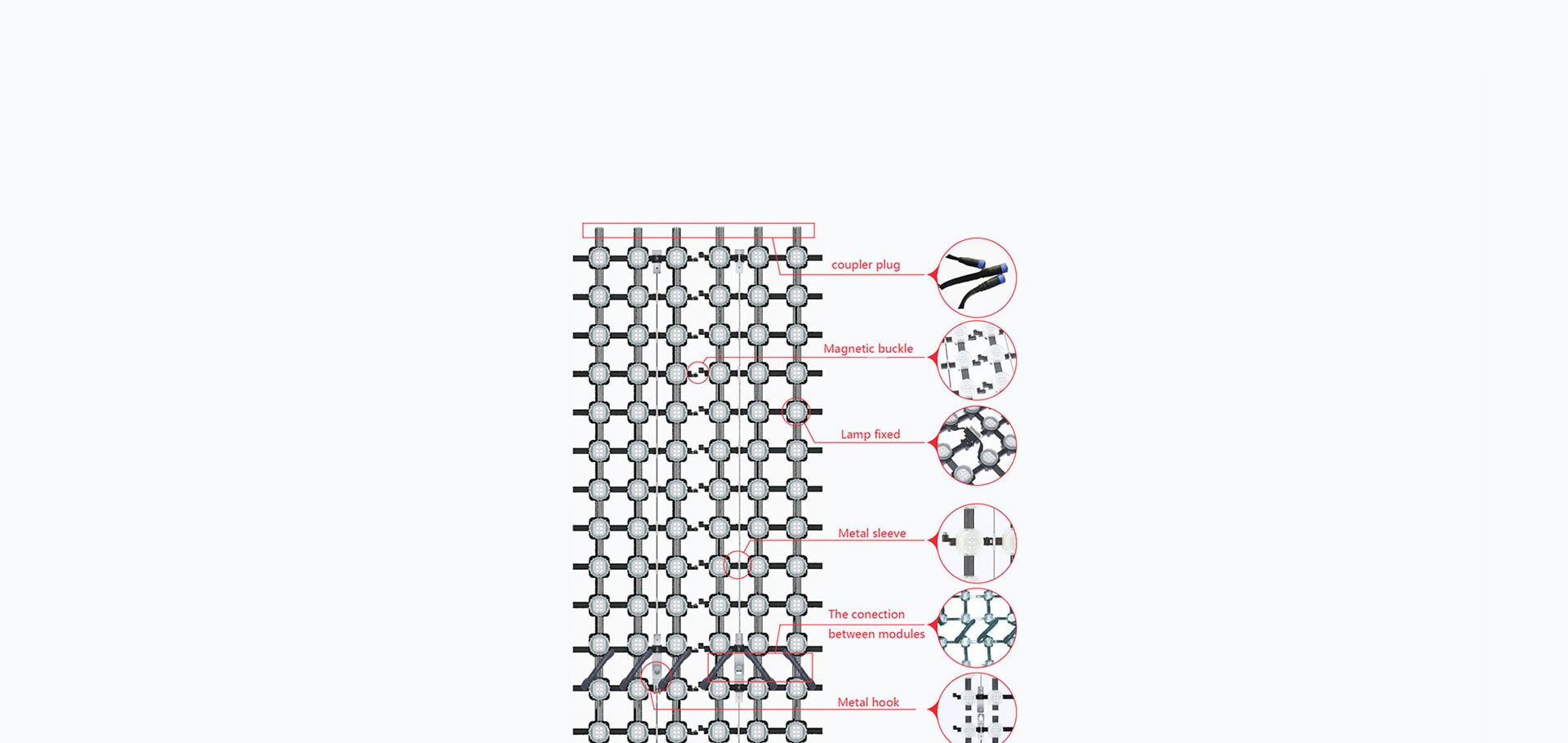

Magnetic Buckle Design of Transparent LED Mesh

Fast installation, could achieve triple efficiency.
Magnetic Buckle Design of Transparent LED Mesh

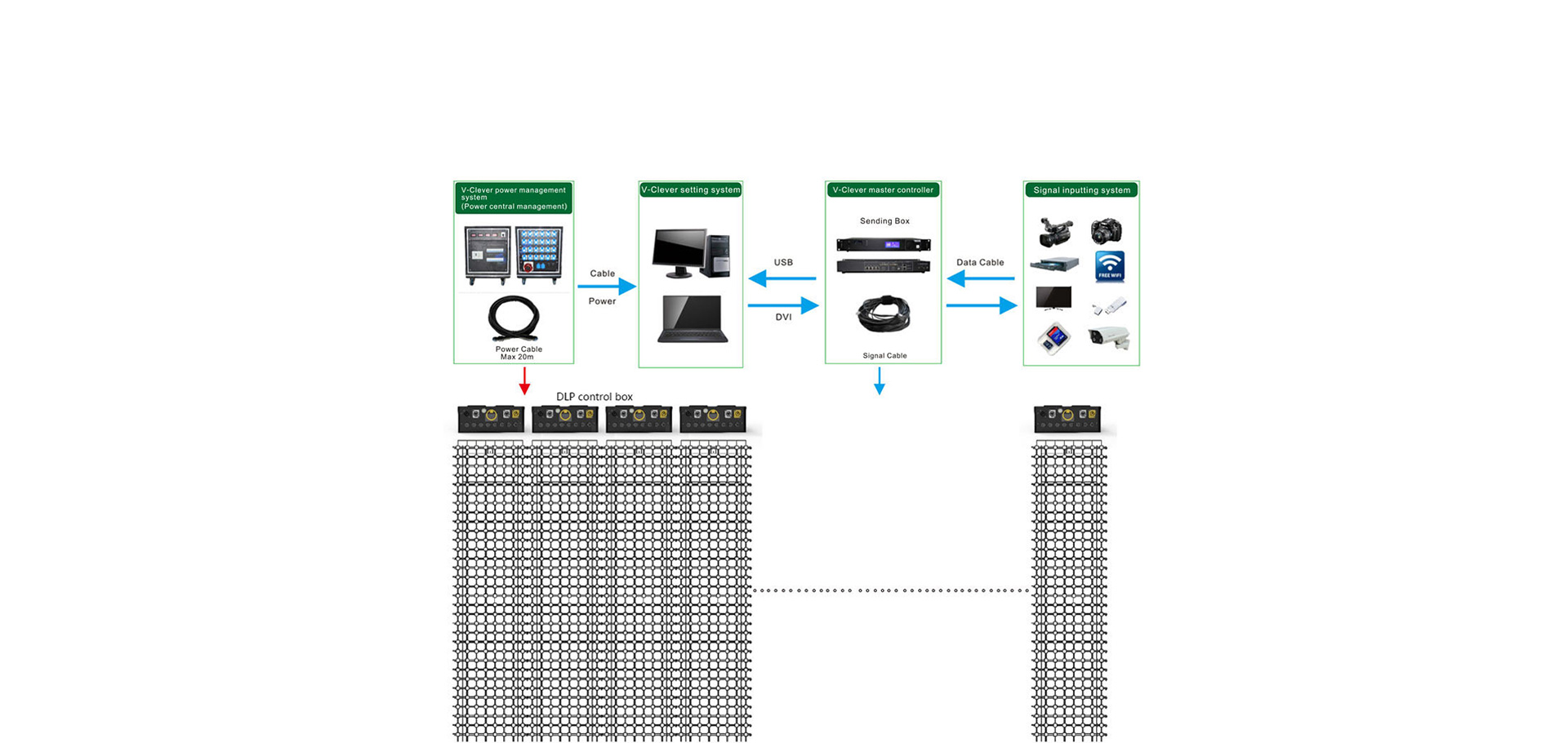

System Topological Graph

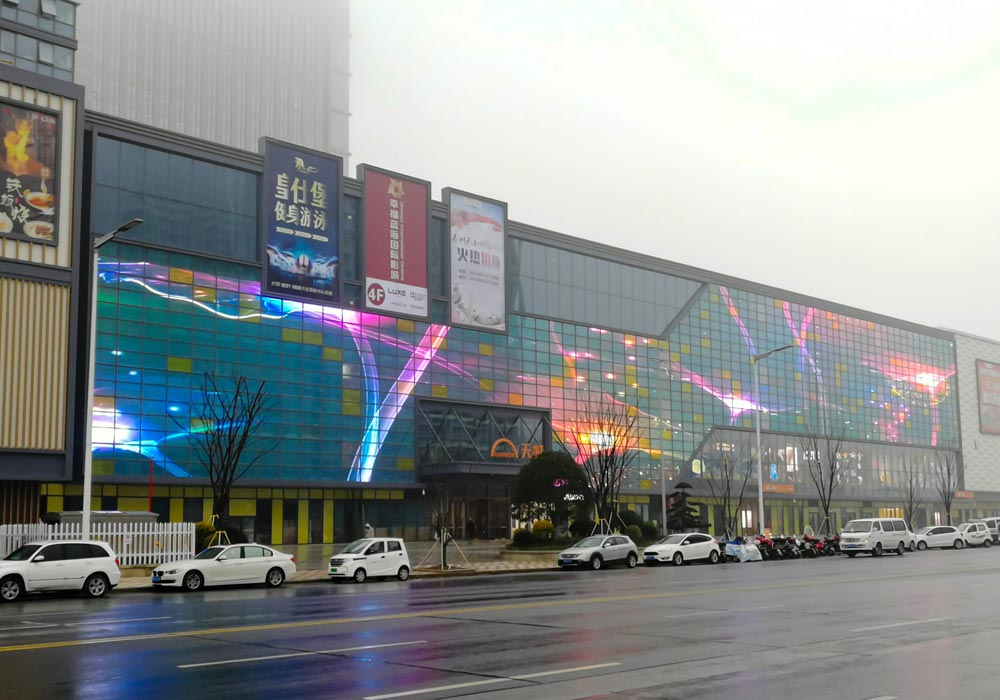

Outdoor LED screen cost is reasonable and differentiated according to the application needs. Our outdoor waterproof LED screens are widely used in shopping buildings, malls, squares, hotels, etc.
System Topological Graph

Smart LED Screen Specification

Part NumberSmartSmart Pro
Smart6-DMXSmart8-DMXSmart6-BPRSmart8-BPRSmart Pro-1Smart Pro-2Smart Pro-4Smart Pro-6
LED TypeSMD2727 6LEDsSMD2727 8LEDsSMD2727  6LEDsSMD2727  8LEDsSMD3535 1LEDSMD2727 2LEDsSMD2727 4LEDsSMD2727 6LEDs
Brightness15CD/Pixel20CD/Pixel15CD/Pixel20CD/Pixel2.5CD/dot5CD/dot10CD/dot15CD/dot
The rated voltageDC24VDC24VDC24VDC24VDC7.5VDC9VDC15VDC24V
DOT.Power Consumption1.5W/pixel2.8W/pixel1.5W/pixel2.8W/pixel0.45W/dot0.6W/dot0.9W/dot1.5W/dot
DOT Size38*31*12.2mm38*31*12.2mm38*31*12.2mm38*31*12.2mm25*25*12.5mm25*25*12.5mm25*25*12.5mm25*25*12.5mm
DOT Weight15g/pixel15g/pixel15g/pixel15g/pixel<6g /Pixel<6g /Pixel<7g /Pixel<7g /Pixel
Pixel Pitch55mm/80mm/100mm/110mm/160mm/xmm40mm/55mm/80mm/100mm/110mm/160mm/xmm
Module Resolution4x65dot/8*65dot8x100dot
IP Rating ( front/back)IP66IP66


*Note: For more product materials, pleaseDownloadhere, or contact us directly
