MG
+

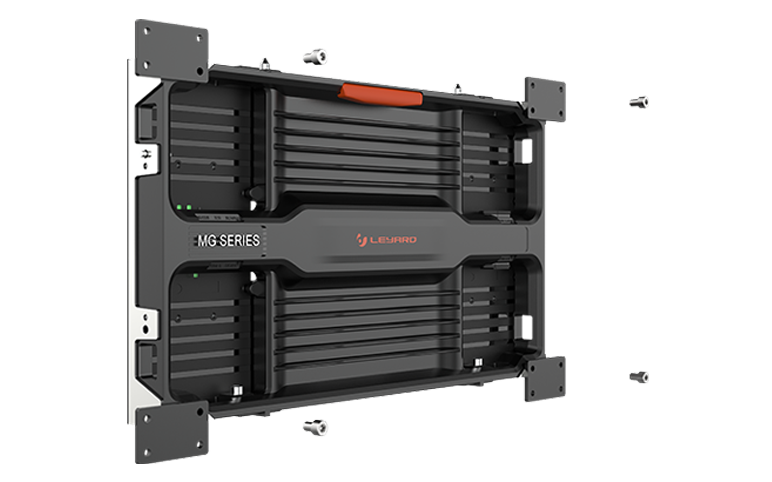

Fine Pixel pitch-MG Series

The MG series is positioned as mainstream small-pitch products, with a width of 600mm and an aspect ratio of 16:9, with the feature of full front maintenance, which lowers the barriers to use for customers. The MG series adopts a minimalist design concept, condensing the years of design experience of Leyard's small-pitch products into the core performance of MG, which reduces the total cost of ownership of customers while ensuring high-quality video display effects. The appearance has been carefully designed. While the key components are contained in the beautiful shape, the function detection function is also added to ensure good heat dissipation of the system. MG has optional power backup and standard signal loop backup.


Pixel Pitch:

P0.9, P1.2, P1.5 P1.8


MG Features

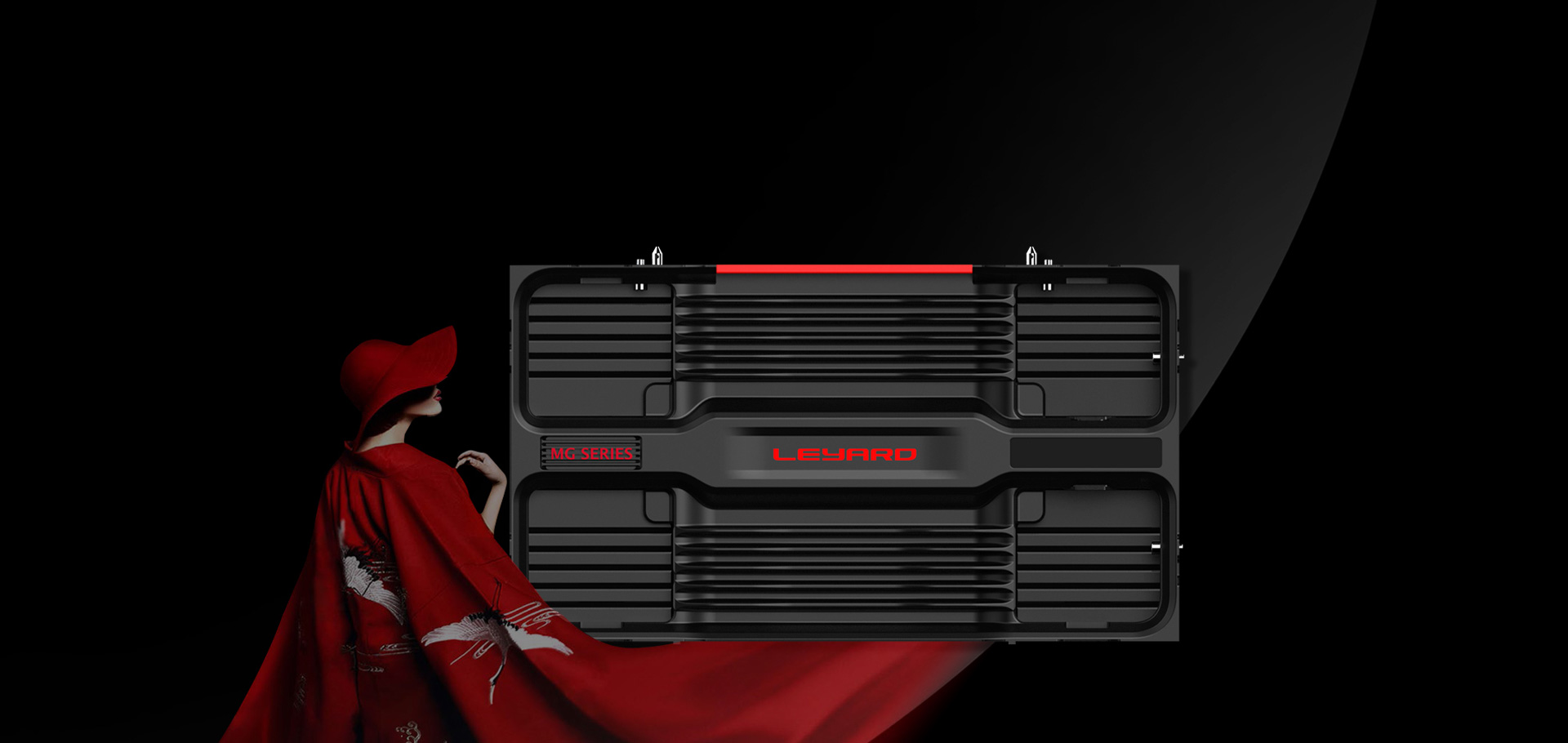

Megapixels, Full Color
Sophisticated and elegant, the best choice
Megapixels, Full Color

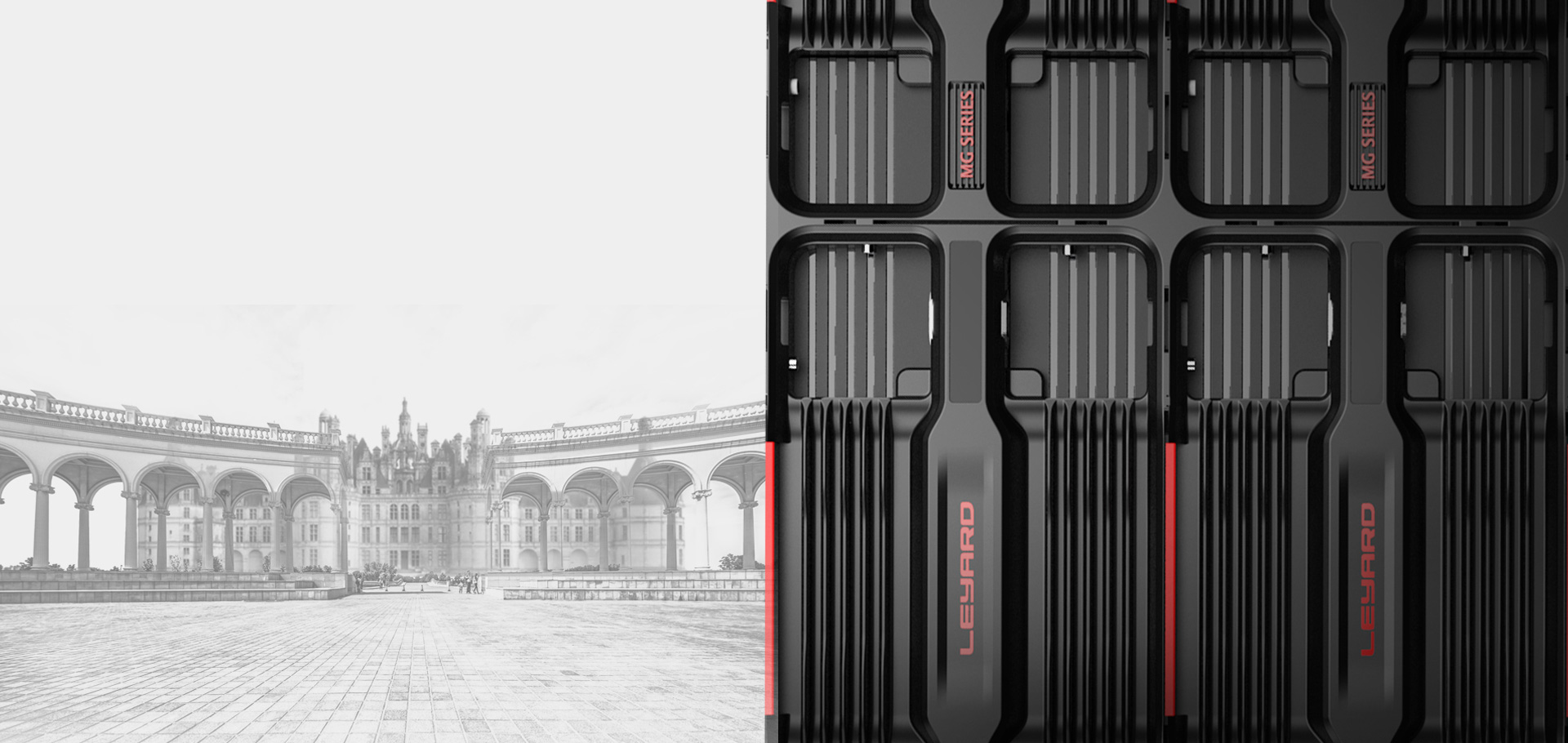

Full Die-cast Aluminum Body, Interpretation Of Light Luxury Quality
One-time integral die-casting aluminum alloy box, hollow box, fully enclosed module design, natural heat dissipation, single box weight 6 Kg, weight per square meter 30 Kg
Full Die-cast Aluminum Body, Interpretation Of Light Luxury Quality

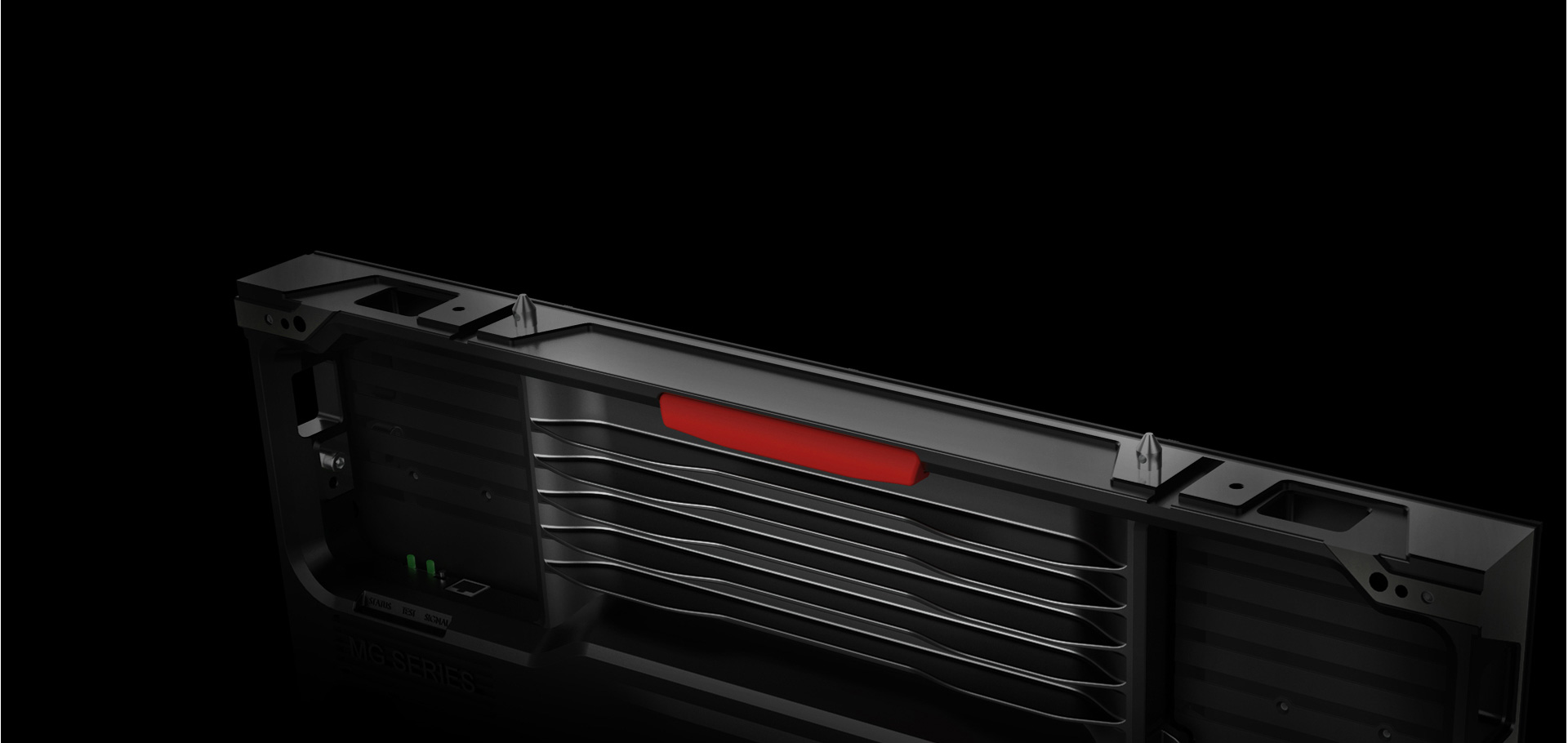

Wave-shaped Heat Sink, Rigid And Soft, Beautiful And Natural
The wave-shaped heat sink increases the heat dissipation area and makes the heat dissipation efficiency higher. It supports the strength of the cabinet structure, the structure is firm, the size is stable, and the large-size screens are spliced ​​to ensure flatness
Wave-shaped Heat Sink, Rigid And Soft, Beautiful And Natural

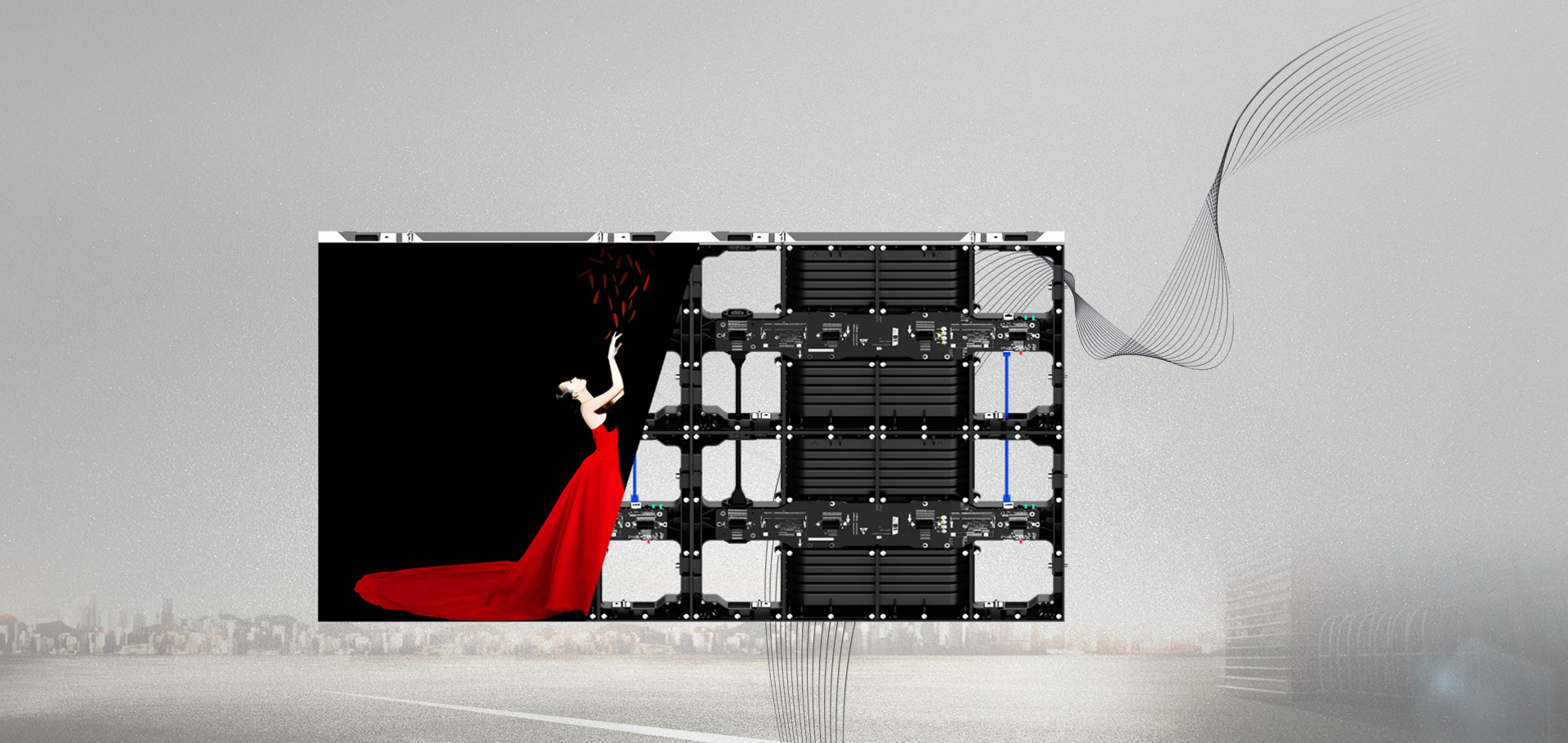

Internal Threading, Vertical And Horizontal Cascade, Six-way Adjustment, Precise Splicing
The cascade line between the boxes passes through the prefabricated holes of the box. Beautiful and tidy, not taking up space. Power supply standard C 1 3 / C 1 4 interface, X / Y / Z six-way adjustment, box flatness ≤ 0. 1 mm
Internal Threading, Vertical And Horizontal Cascade, Six-way Adjustment, Precise Splicing
Standard Ratio, High-definition Display
5 0 0 0: 1 High-contrast intelligent module design, 3840 Hz refresh rate, support HDR display, 16-bit grayscale, single box standard 16:9 27"
Standard Ratio, High-definition Display

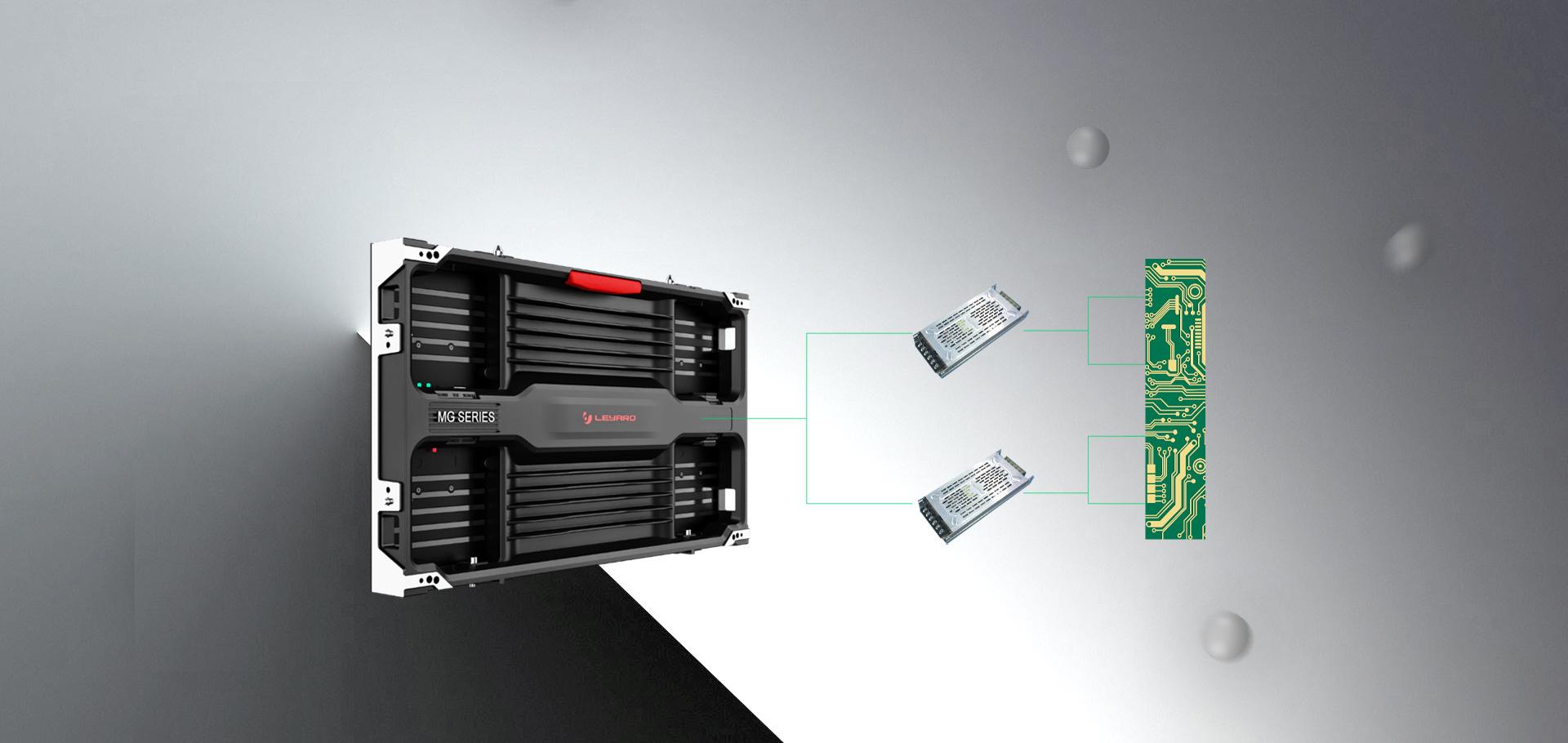

Moisturize Things Silently To Create A New
The cabinet has no built-in fan, natural heat dissipation design, average heat dissipation ≤ 2 0 0 W / ㎡ cabinet noise ≤ 7 D B, can be used normally after disconnecting one power supply
Moisturize Things Silently To Create A New

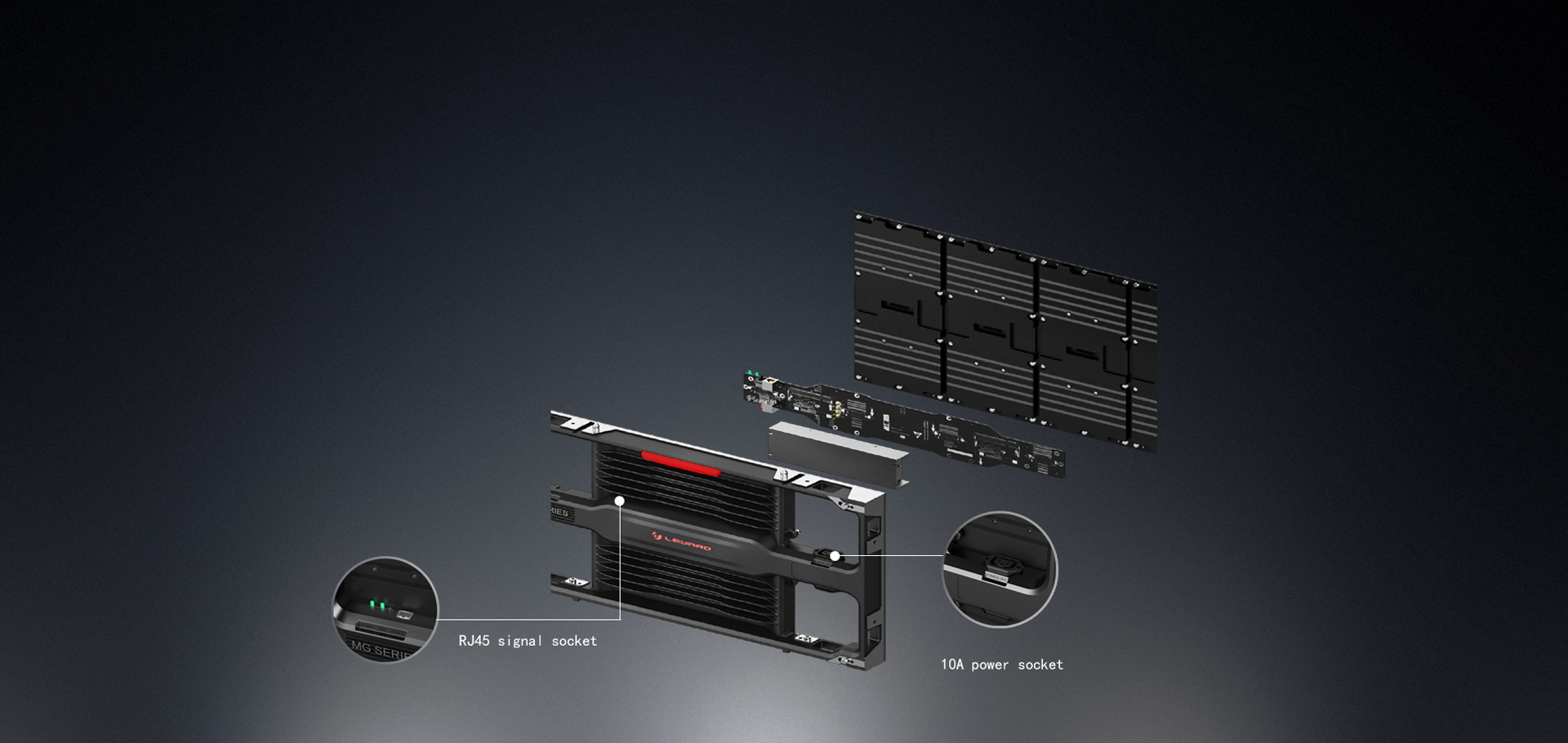

Scientific And Reasonable Layout, Highlighting The Aesthetics Of Craftsmanship
Single receiving card control (signal loop backup technology) supports dual power supply backup power input A C 1 0 0 ~ 2 4 0 V (5 0-6 0 Hz) lower entry and upper exit in order to reduce strong electrical interference, The signal transmission is stable and reliable, the distance between the strong and weak electrical sockets of the box body>300 mm A floating connector is used between the module and the drive board, which has the function of fitting and correcting deviation, making the connection more stable RJ45 signal socket, 10A power socket
Scientific And Reasonable Layout, Highlighting The Aesthetics Of Craftsmanship

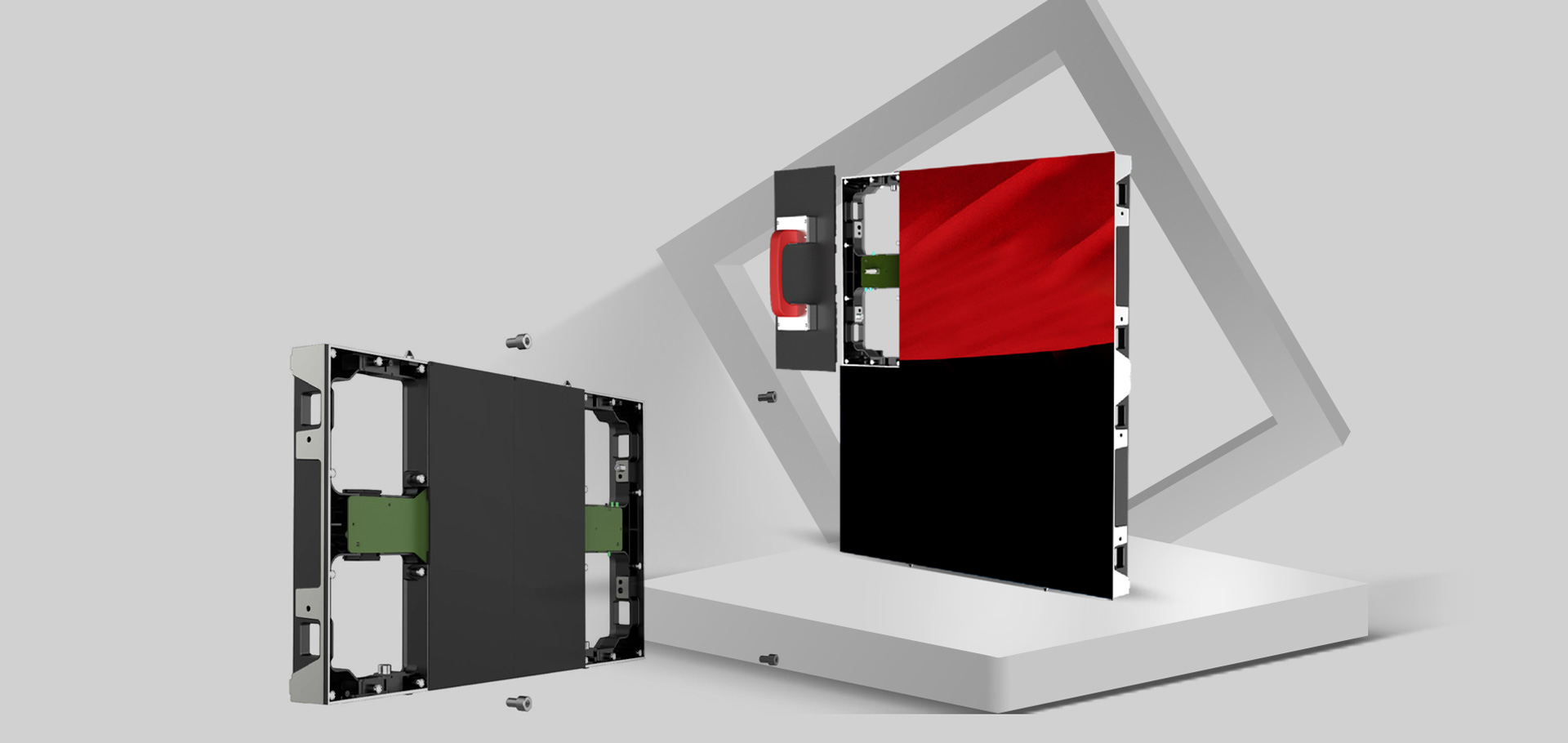

Front Maintenance, Convenient And Quick
Front and rear installation, can be completely disassembled front, front disassembly_x0001_ only dismantle two light boards to operate, it is convenient and quick
Front Maintenance, Convenient And Quick
