MC Series HD conformal screen series

MC focuses on high-definition conformal screen display solutions. P16-25mm perfectly complements the existing conformal screens (LED flexible screens/mesh light sources) in the market with large spacing, low resolution, and low brightness.

It has high-definition, high-brightness, low energy consumption, strong waterproof, UV resistance, high and low temperature resistance and other superior performance. Because the product itself can be bent, folded, and wound at will, it provides excellent display solutions for large-scale performing arts activities, building curtain walls, creative buildings, cultural tourism night tours, landmark projects, etc., and creates unlimited commercial value.


Pixel pitch:

16mm / 20mm / 25mm

Features of HD conformal screen series

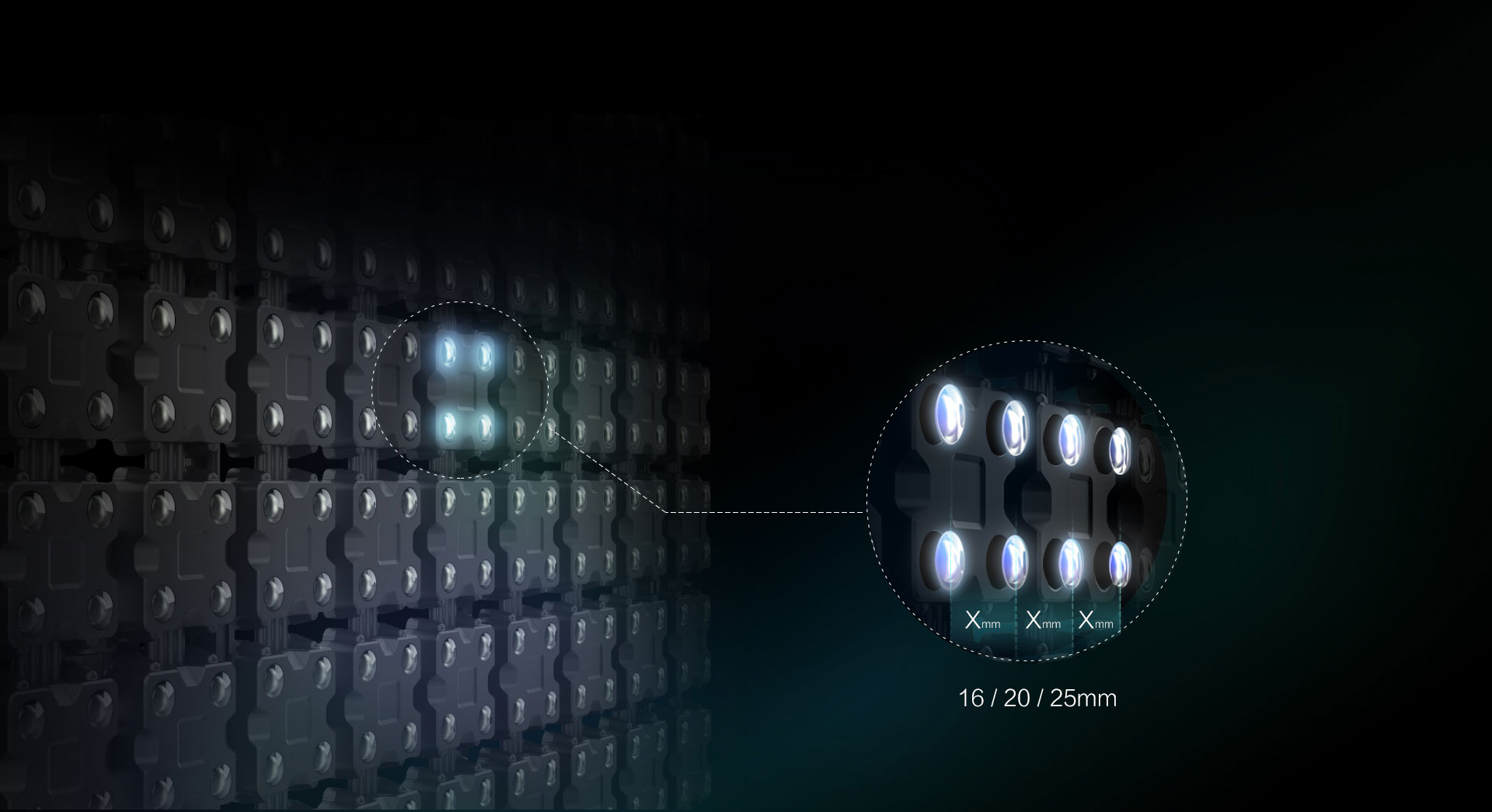

Innovative Structural Design

Through excellent industrial aesthetics design and creative design concepts, which increases the pixel pitch of the conformal screen to a new height and perfectly expands the product line of the conformal screen series so that the conformal screen can develop in the direction of smaller pitch, higher definition and higher brightness.
Innovative Structural Design

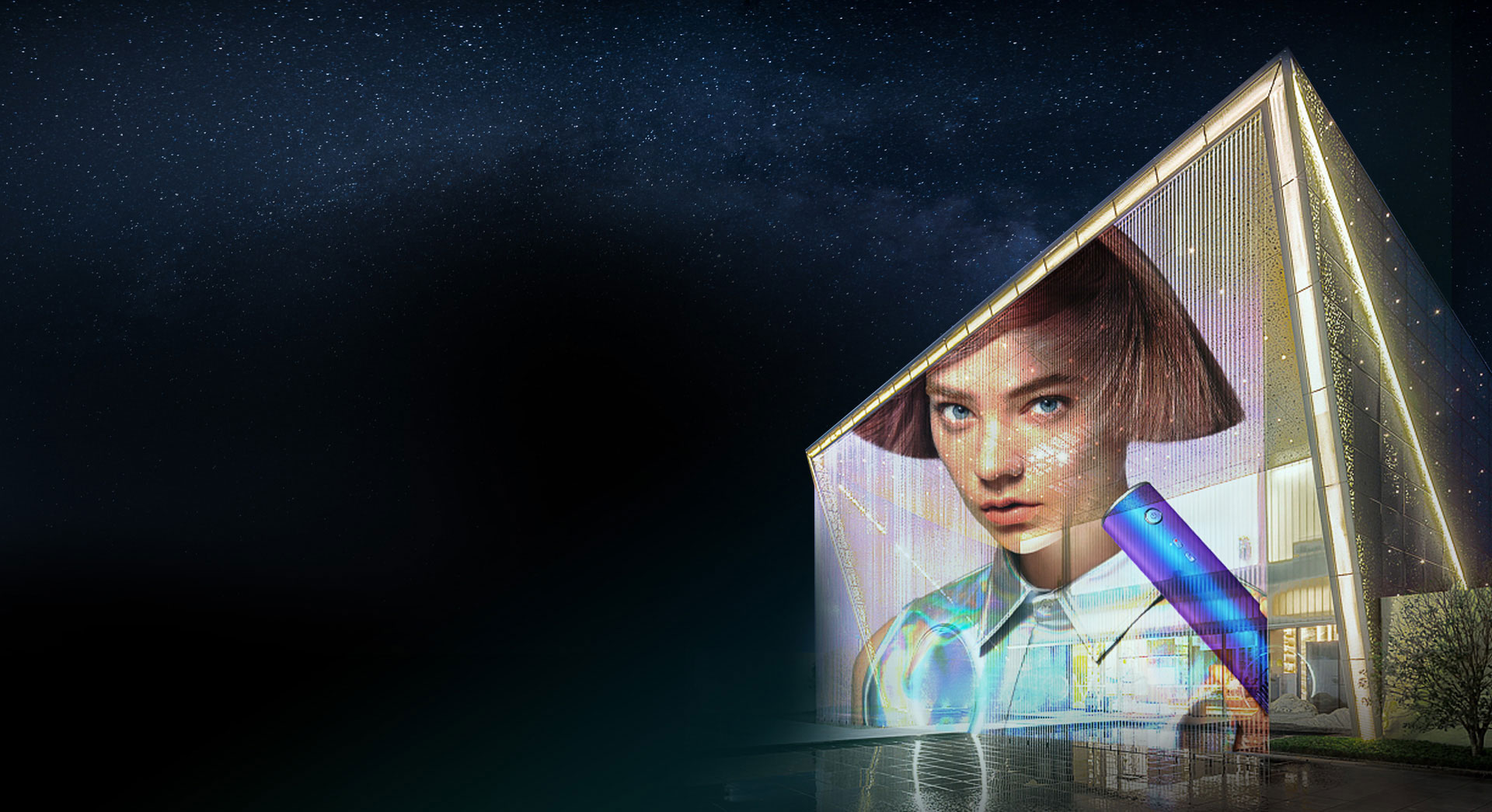

Gorgeous HD, Cinema - level Effect

The Min pixel pitch is only 16mm. The led design is denser and more high-definition, with high refresh, high contrast, high grayscale, etc., clearly showing the details, realizing all kinds of colors, and what you see is lifelike. The all-black design makes it super invisible. The playback screen is wide and unobstructed, and the field of vision is shocking and immersive.
Gorgeous HD, Cinema - level Effect

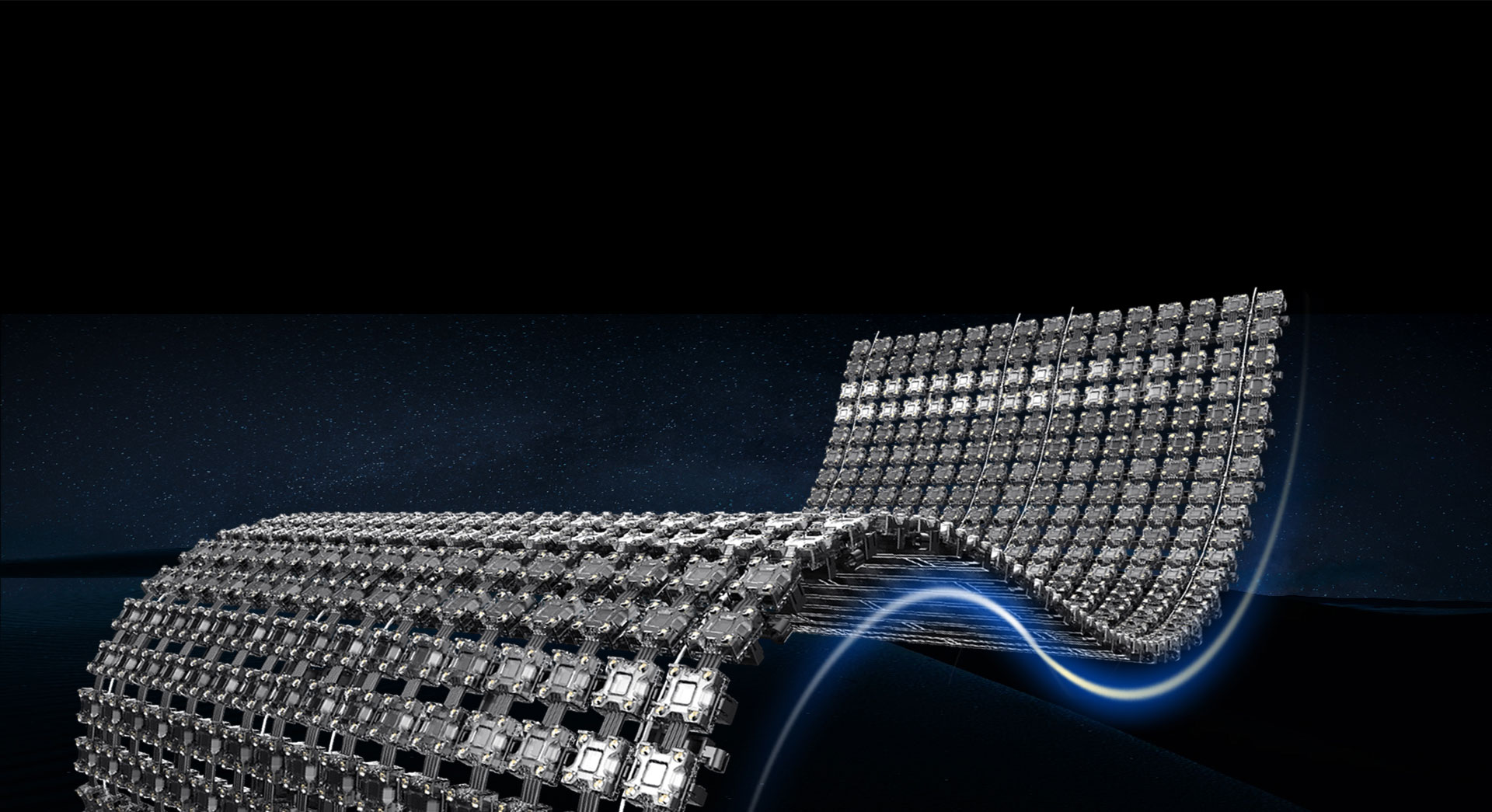

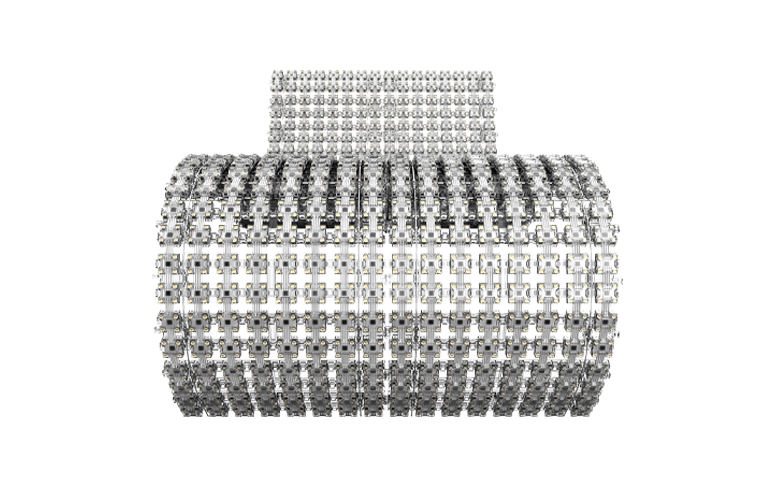

Soft and Flexible, changeable Shape

Flexible , can be a variety of special-shaped and spot, not limited by the application scene, special-shaped creative display
Soft and Flexible, changeable Shape

Hollow out Design, Tansparent Display

Hollow out design, structural wind and earthquake resistance, does not affect the transparency and lighting
Hollow out Design, Tansparent Display

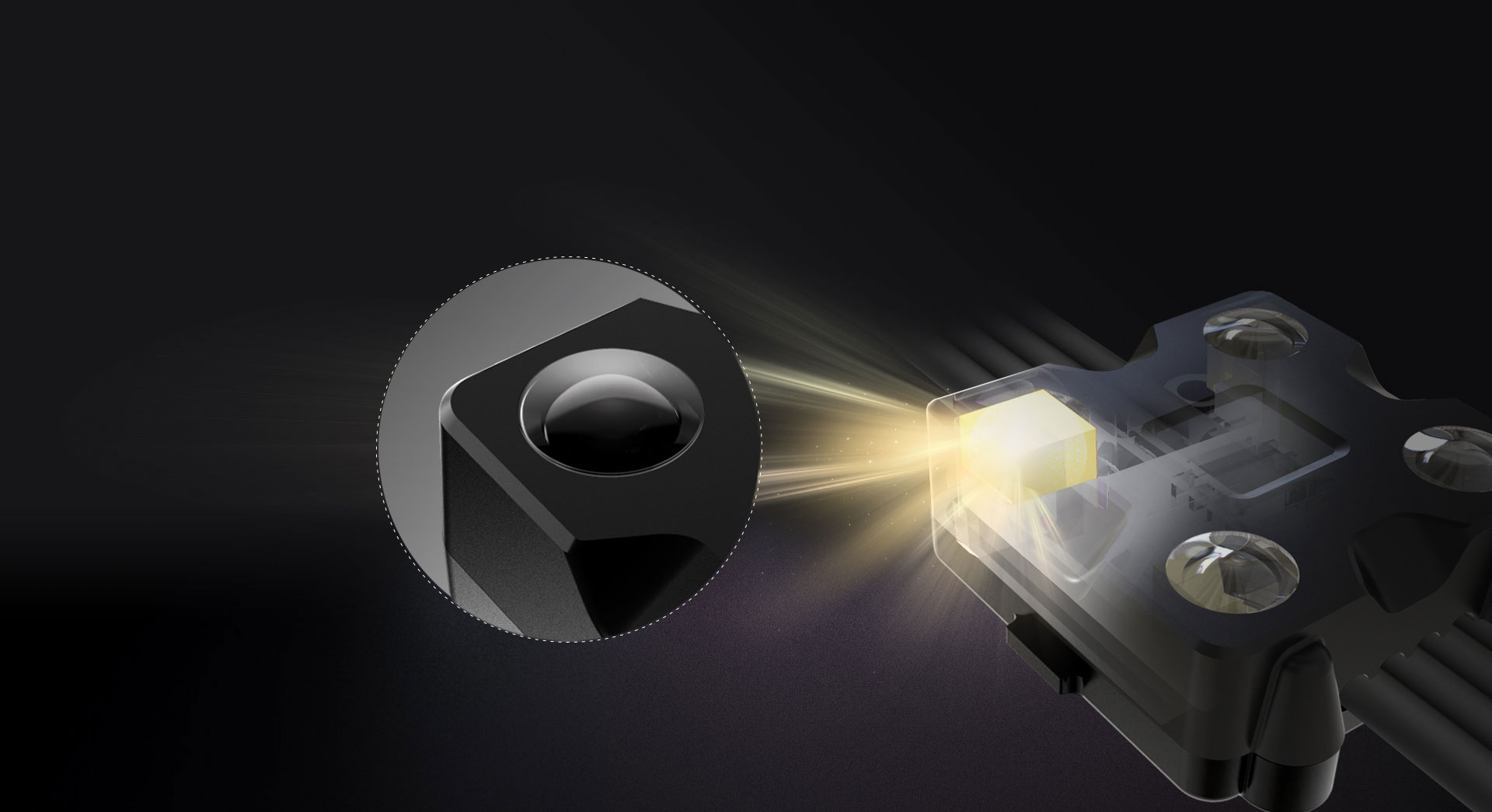

Super Light and Thin

Weight only 12kg/㎡, light and dexterous, convenient low-cost packaging and transportation; 11cm ultra-thin screen, easily placed in all kinds of narrow, special position space, free from space constraints
Super Light and Thin

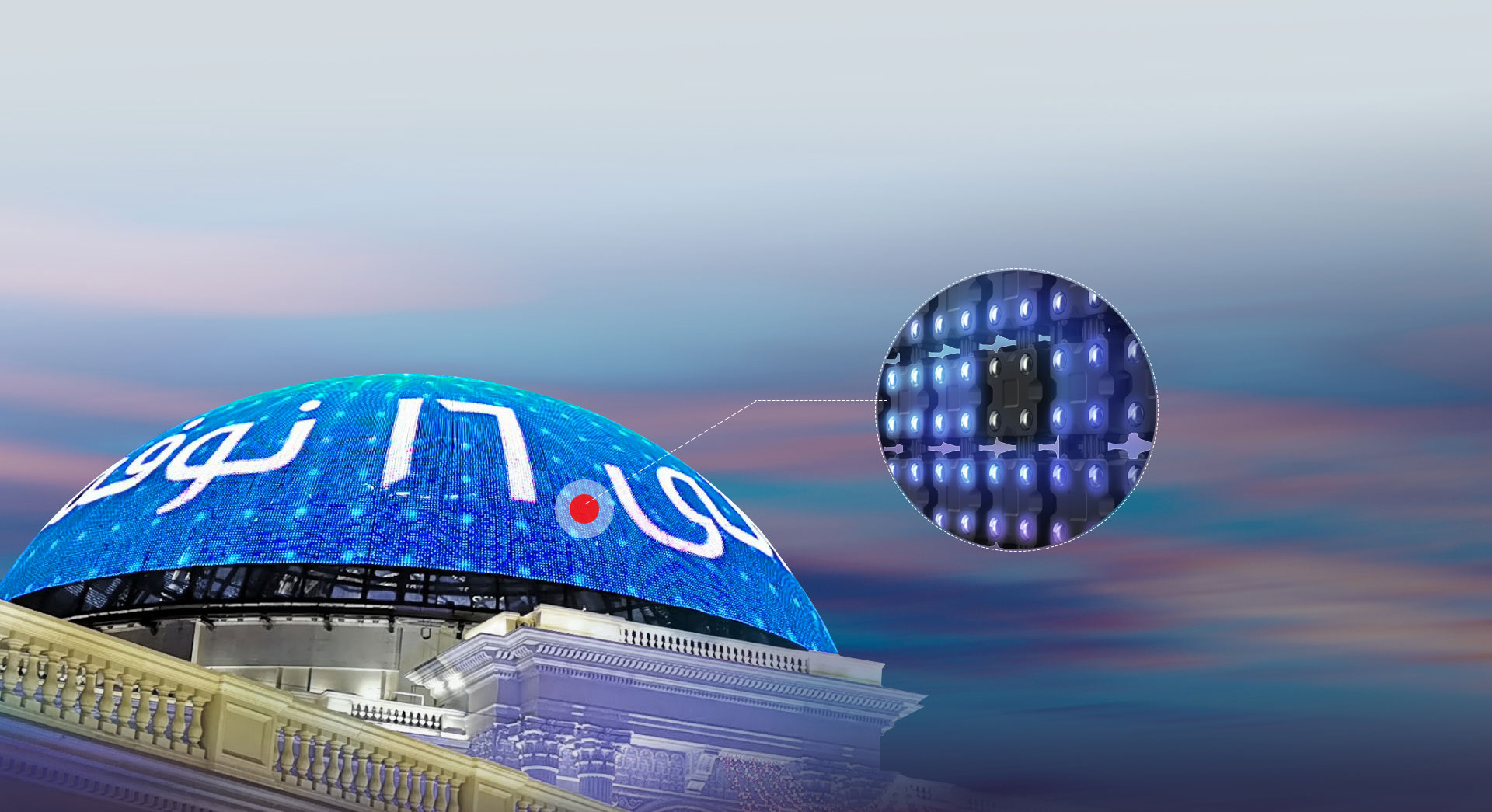

Wide Viewing Angle of 140°

The LED dot is embedded with spherical mask design. 140°/140° viewing Angle; wider transmission area; better transmission effect; covering 90% transmission rate
Wide Viewing Angle of 140°

Breakpoint Resume

Adopt dual channel failure point continuous drive design-- When single led failure, it does not affect the normal work of other led dots to ensure the safety of the project.
Breakpoint Resume

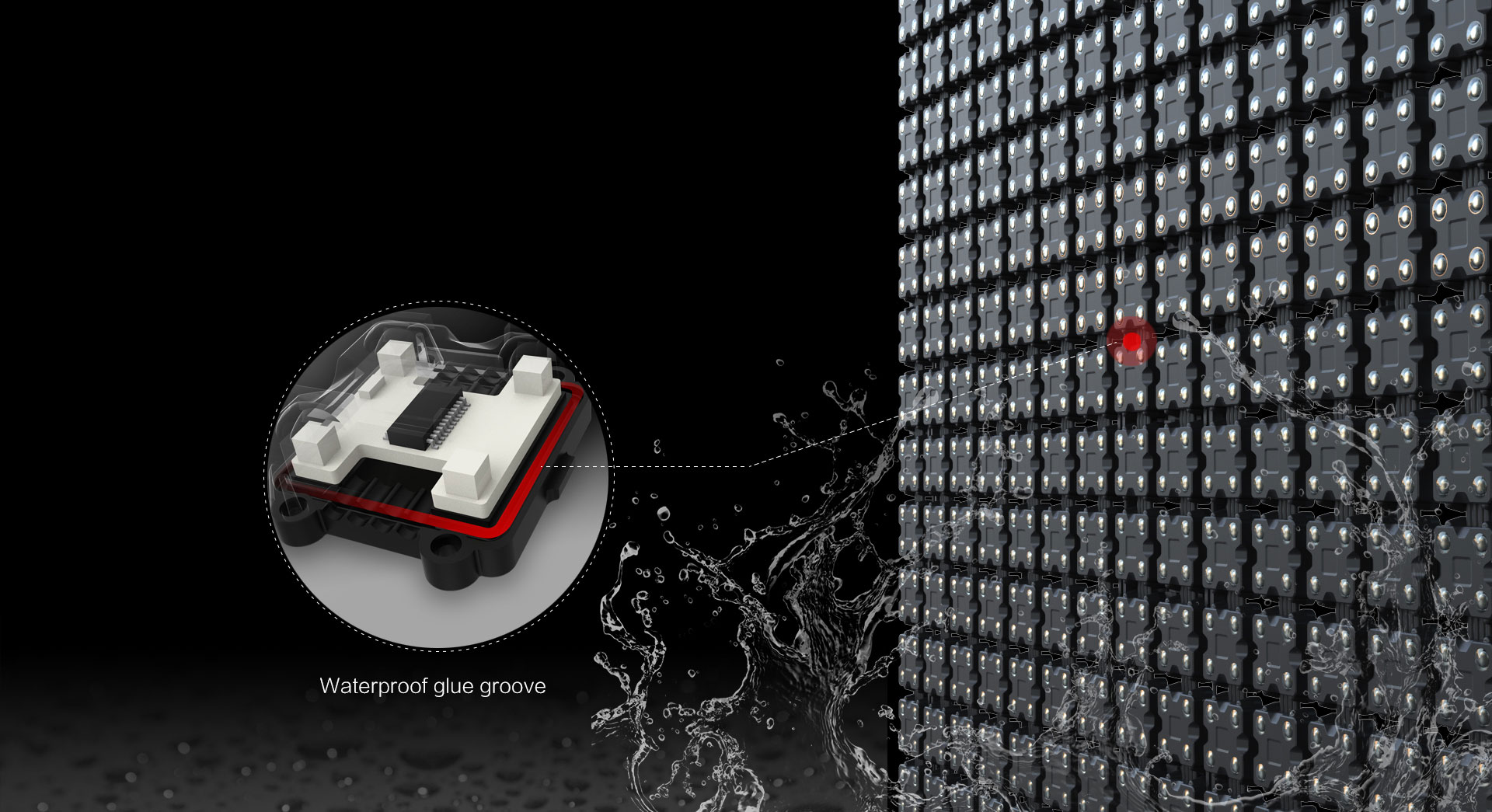

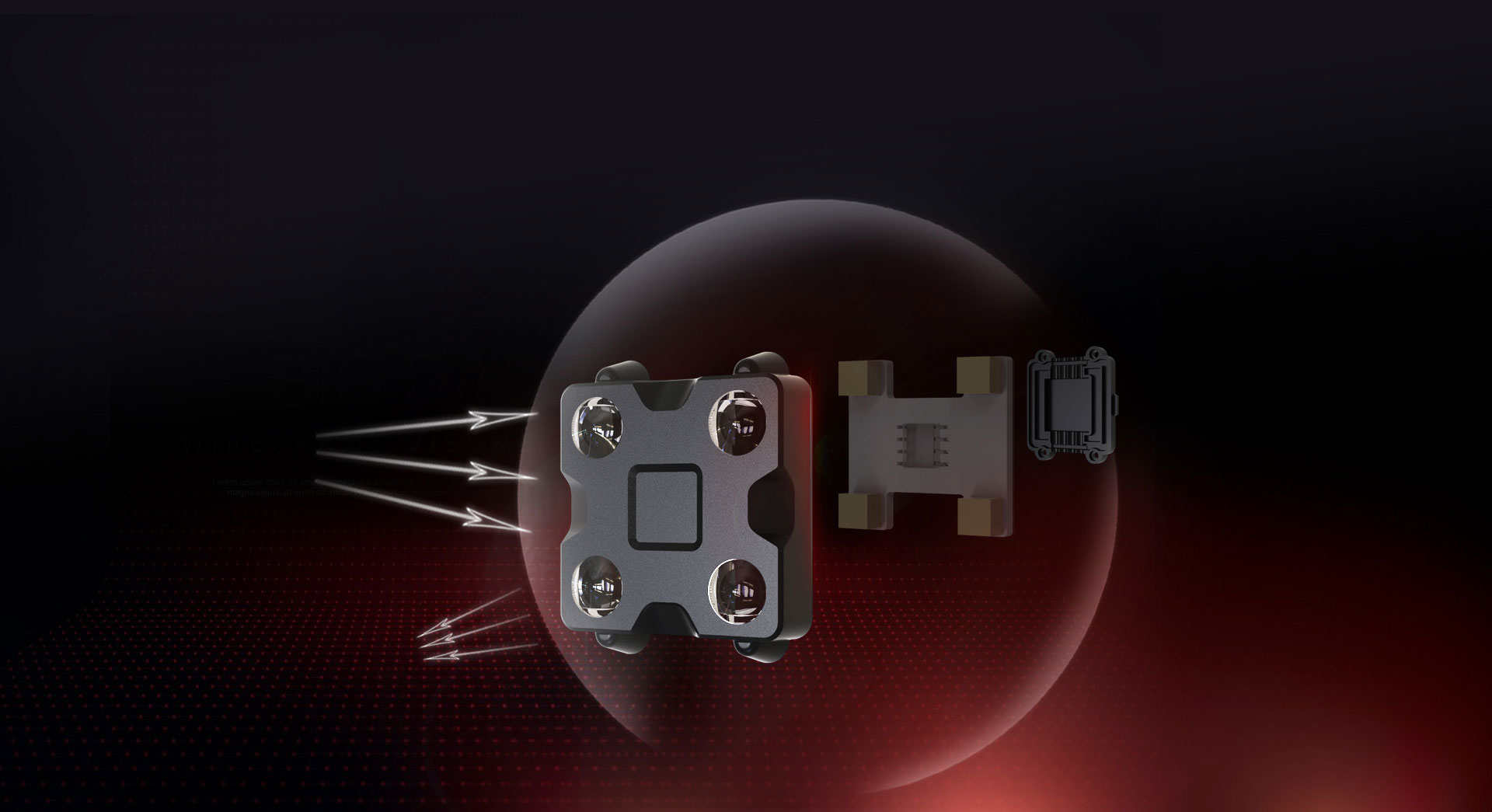

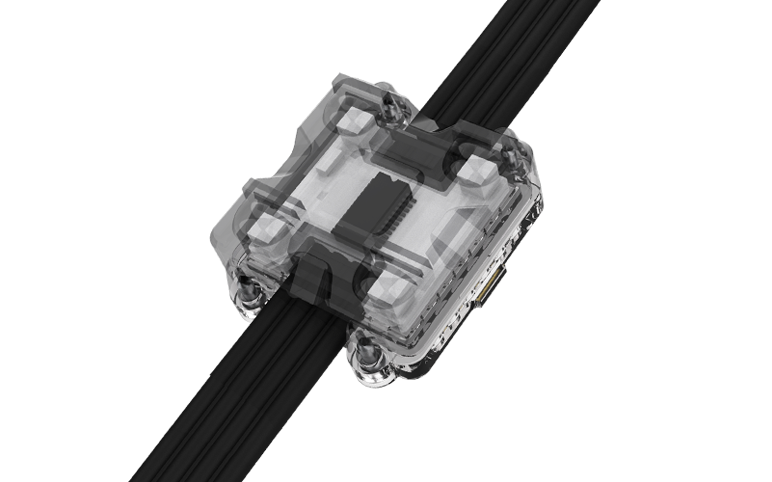

Waterproof -- IP66

A better waterproof glue groove design is used between the upper and lower shells of the lamp point, which has a better waterproof effect and avoids excessive weight caused by too much glue.
Waterproof -- IP66

High Flame Retardant | UV Resistance | High and Low Temperature Resistance | Corrosion Resistance

It adopts anti-UV materials imported from Germany, which has excellent light transmittance, heat insulation, impact resistance, aging resistance, flame retardancy, adaptability to large temperature differences, and impact resistance. The flame retardant grade reaches 94-V0, which can be used in harsh environments for a long time and stably, providing a strong technical guarantee for the stable operation of the project.
High Flame Retardant | UV Resistance | High and Low Temperature Resistance | Corrosion Resistance

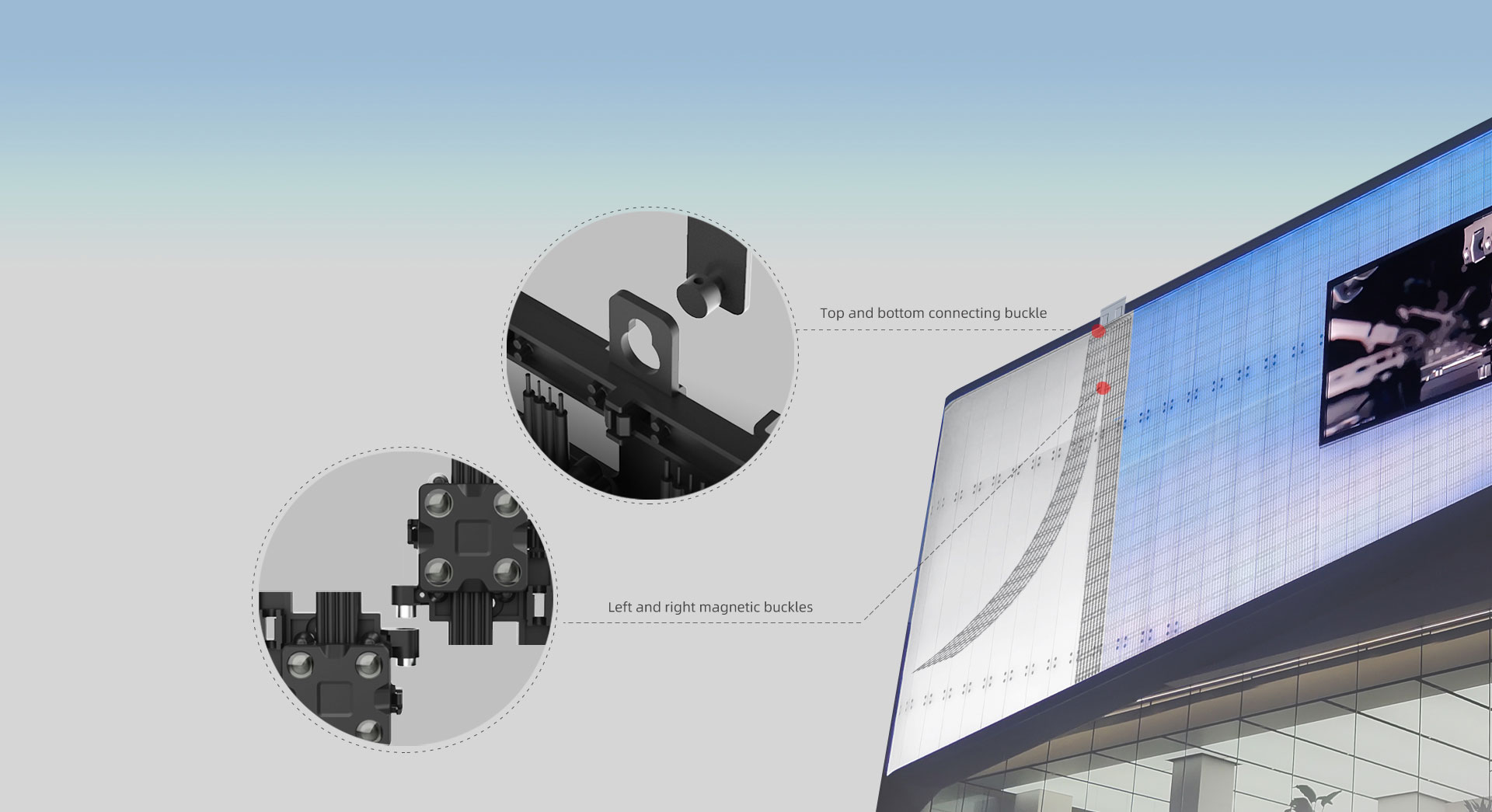

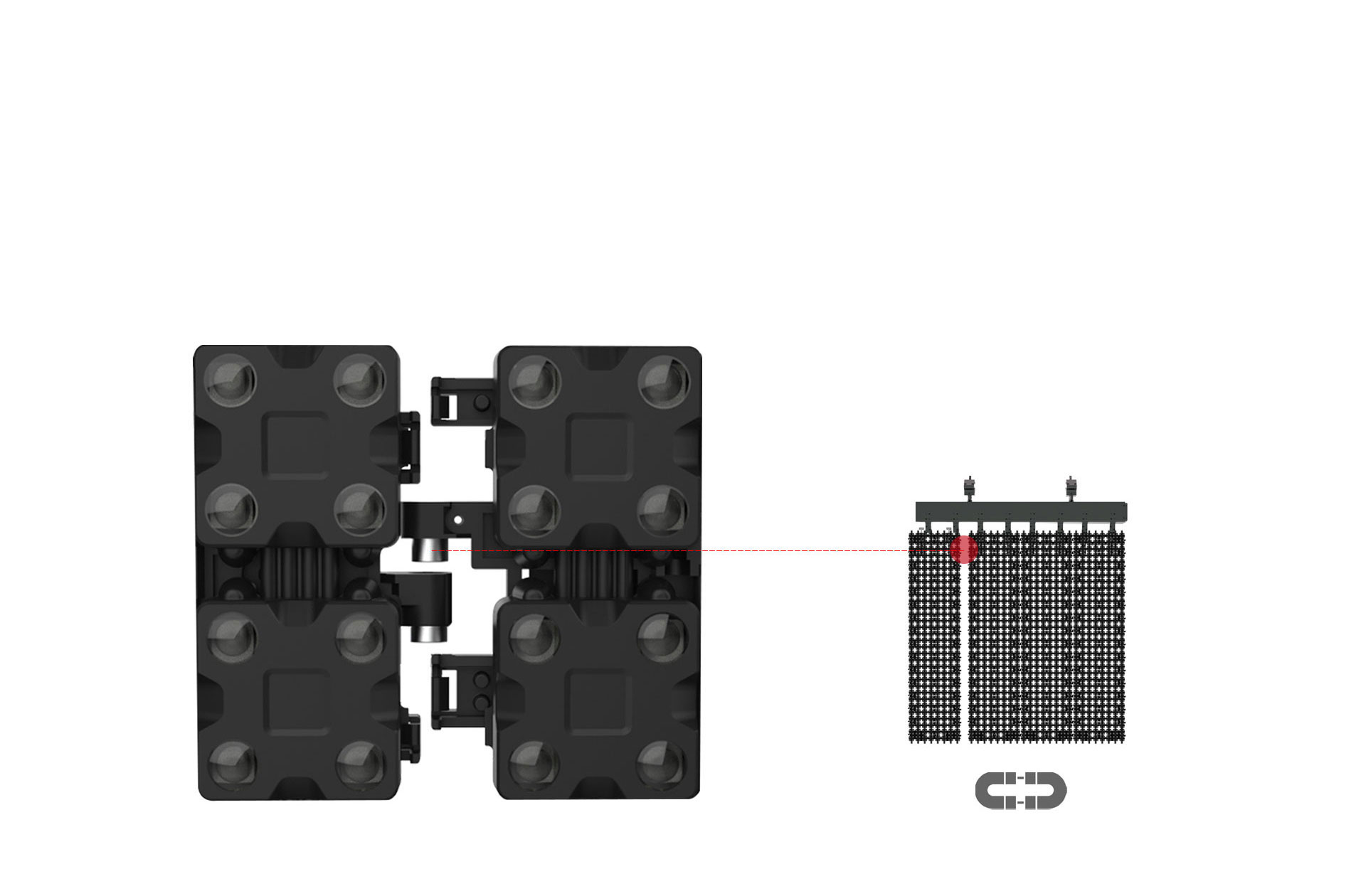

Magnetic Buckle (Patent)

Left and right connection module; Fast connected and dismantled with magnet buckle, and the installation and disassembly efficiency is increased by more than 3 times
Magnetic Buckle (Patent)

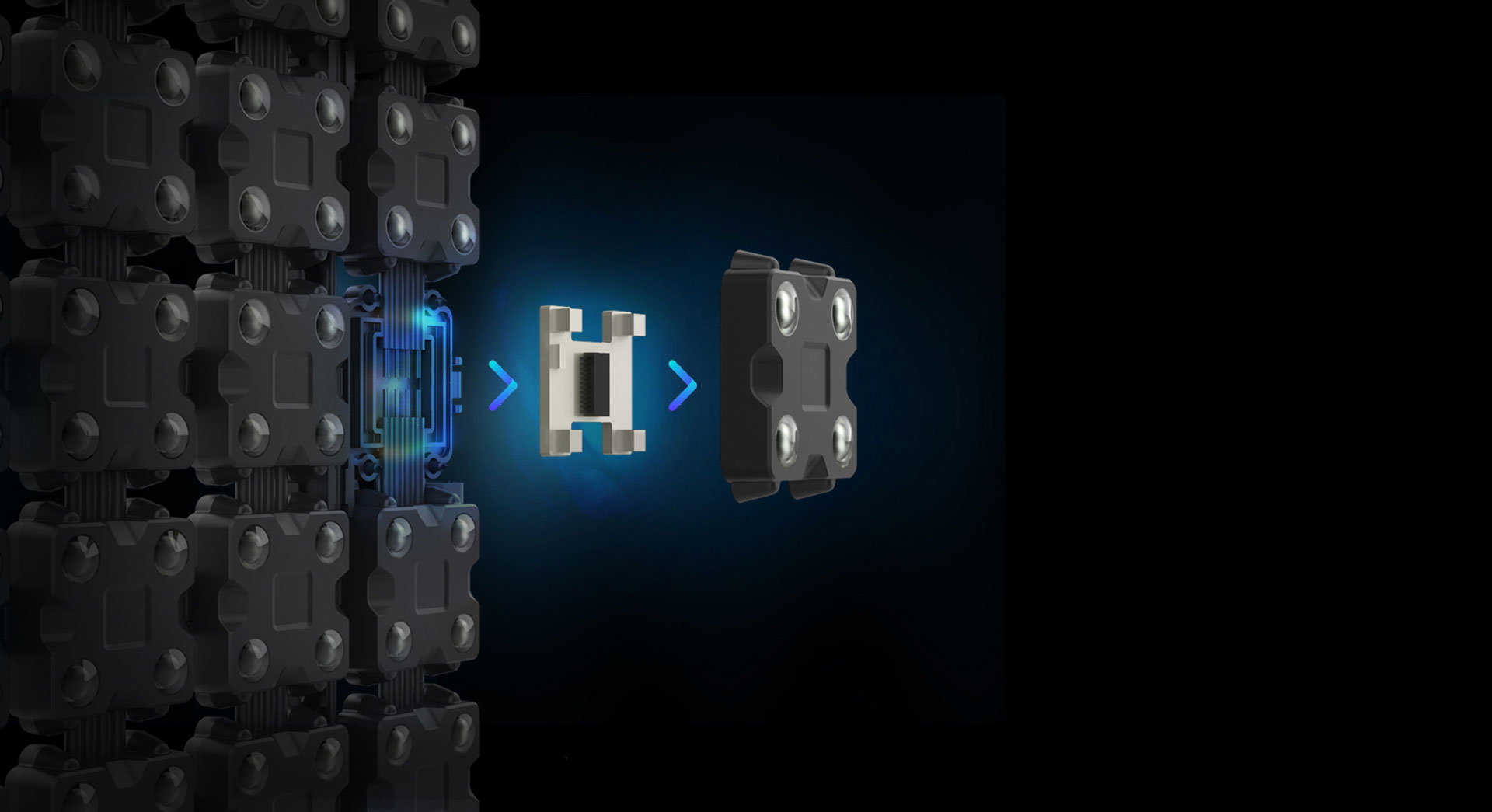

Minimalist and Quick Installation

Ergonomic design of professional fast lock; no complicated operation; single person can also quickly disassemble and install the screen, convenient, smooth and tidy.
Minimalist and Quick Installation

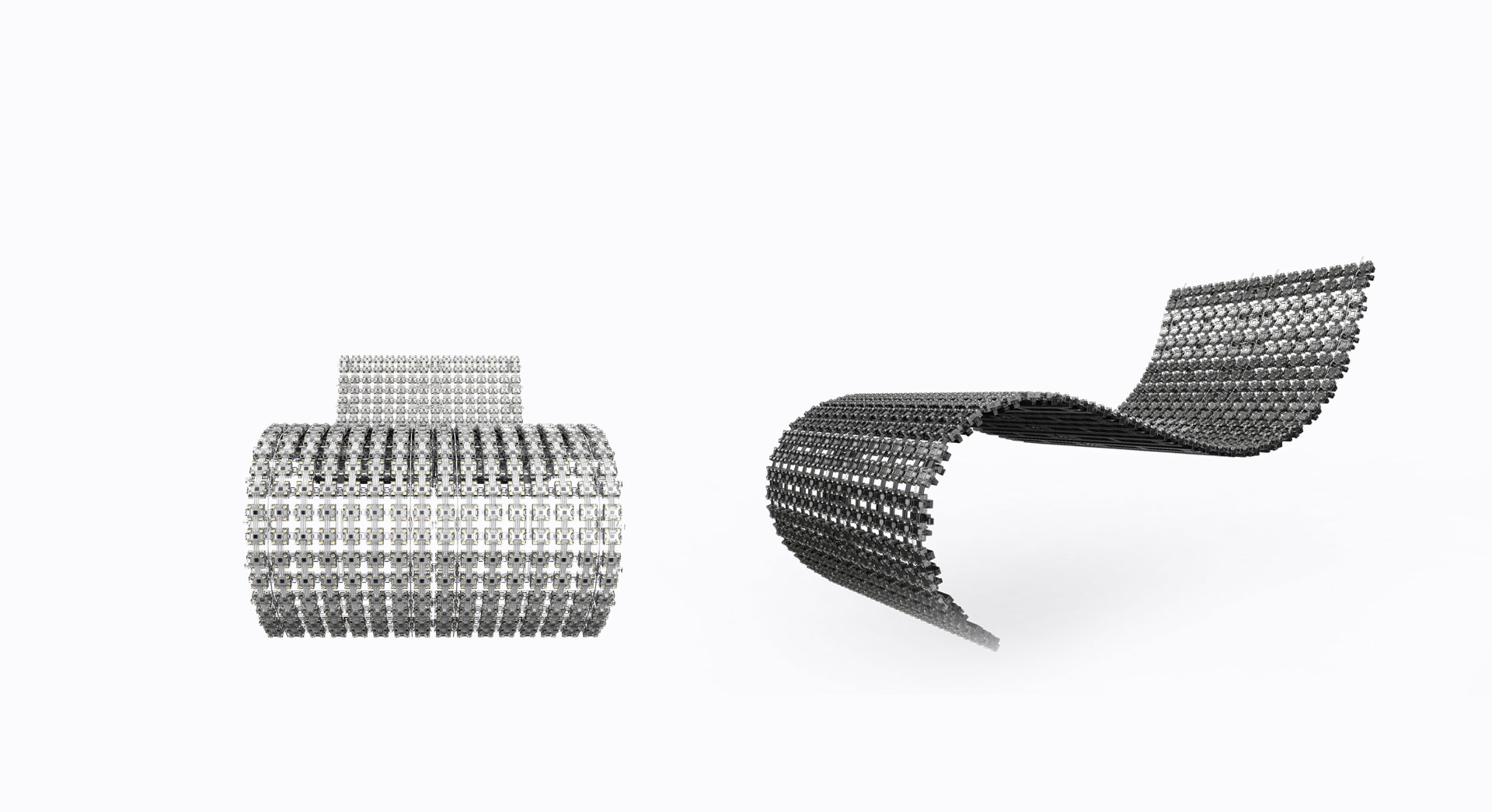

Optional MC HD conformal screen

MC HD Series includes MC Spherical Lens and MC Polarized Lens.Available in black and white
Optional MC HD conformal screen

MC Series Specifications

Conformal Screen | MC HD conformal screen series
Part NumberMC-16
Spherical Lens
MC-16T
Polarized Lens
MC-20
Spherical Lens
MC-20T
Polarized Lens
MC-25
Spherical Lens
MC-25T
Polarized Lens
Pixel Pitch16mm16mm20mm20mm25mm25mm
LED ConfigurationSMD2727LEDSMD2727LEDSMD2727LEDSMD2727LEDSMD2727LEDSMD2727LED
The Rated VoltageDC7.5VDC7.5VDC7.5VDC7.5VDC7.5VDC7.5V
DOT Power Consumption0.25W / dot0.25W / dot0.25W / dot0.25W / dot0.25W / dot0.25W / dot
Dot Resolution16 x 128 / dot16 x 128 / dot16 x 128 / dot16 x 128 / dot16 x 128 / dot16 x 128 / dot
Dot Size22.9x22.9x11mm22.9x22.9x11mm28.8x26.9x11mm28.8x26.9x11mm33.8x31.9x11mm33.8x31.9x11mm
Viewing Angle (H/V)120°(H) / 120°(V)120°(H),Polarized downward 60°120°(H) / 120°(V)120°(H),Polarized downward 60°120°(H) / 120°(V)120°(H),Polarized downward 60°
Cabinet Weight<10g /Modular
(4 leds/pixel)
<10g /Modular
(4 leds/pixel)
<12g /Modular
(4 leds/pixel)
<12g /Modular
(4 leds/pixel)
<15g /Modular
(4 leds/pixel)
<15g /Modular
(4 leds/pixel)
IP Rating ( front/back)IP66IP66IP66IP66IP66IP66
Brightness1.5CD / dot2.2CD / dot1.5CD / dot2.2CD / dot1.5CD / dot2.2CD / dot


*Note: For more product materials, pleaseDownloadhere, or contact us directly
