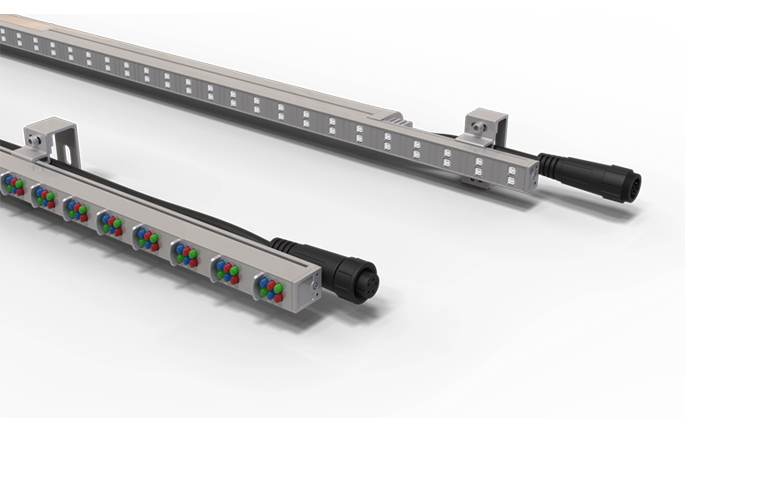

VLO Linear Screen

Leyard – linear screen is a video grade lighting product designed for architectural landscape lighting. New independent research and development design, the use of professional waterproof joint multistage connection combination, can constitute a point, line, surface of various shapes display graphics and video.Highly integrated design, simple and elegant appearance, with light, thin, outdoor waterproof, no steel structure, no heat dissipation equipment, low power consumption, centralized control and other characteristics, suitable for the construction of super large outdoor led screen, is the first choice to create a landmark dynamic display landscape.


Pixel Pitch:

VLO-SMD: 50, 40, 32pixel/m

VLO-DIP: 40, 32, 20pixel/m


Features of Linear Screen

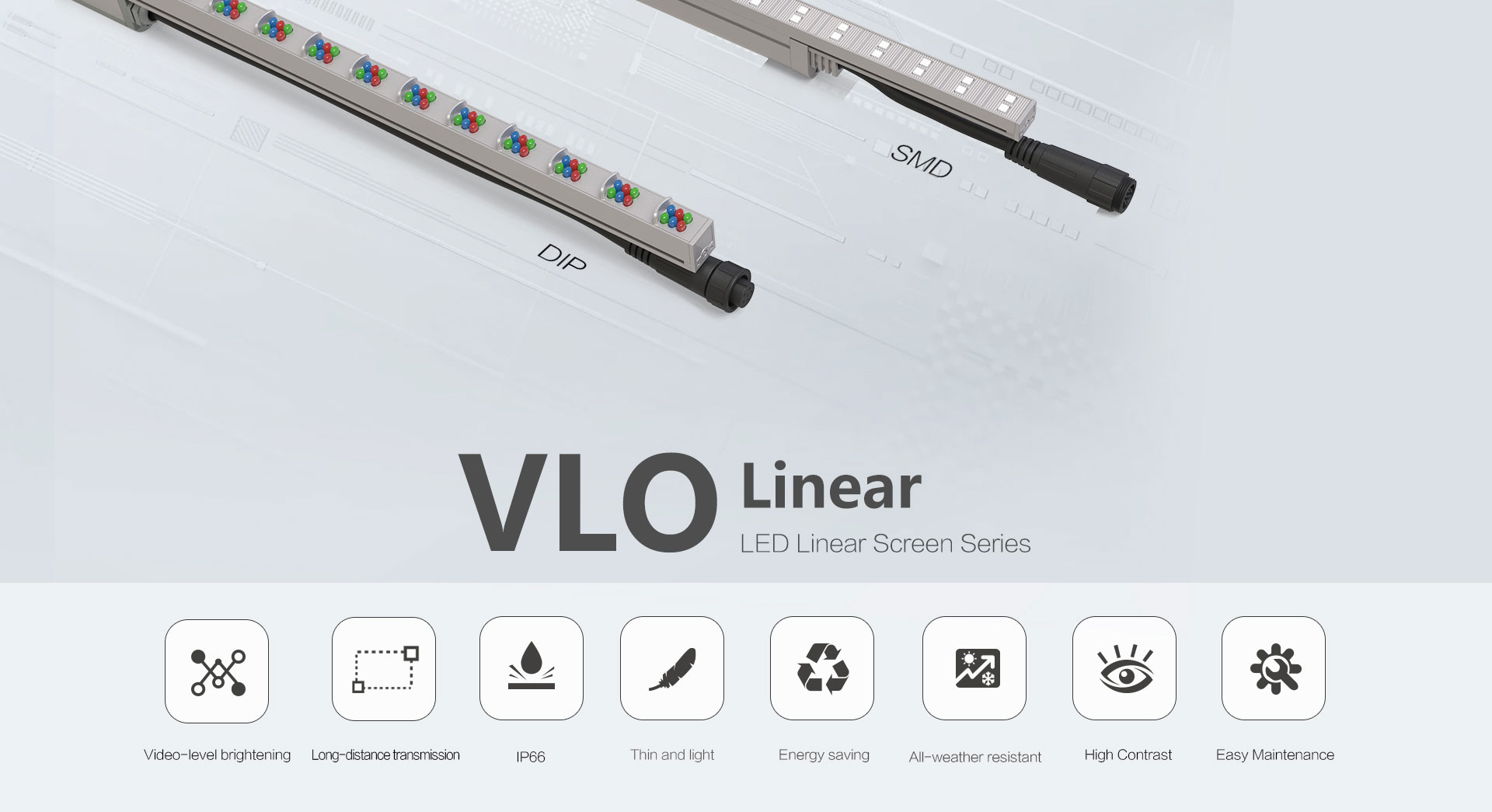

Outdoor Engineering Landscape Linear Led Screen

Outdoor Engineering Landscape Linear Led Screen

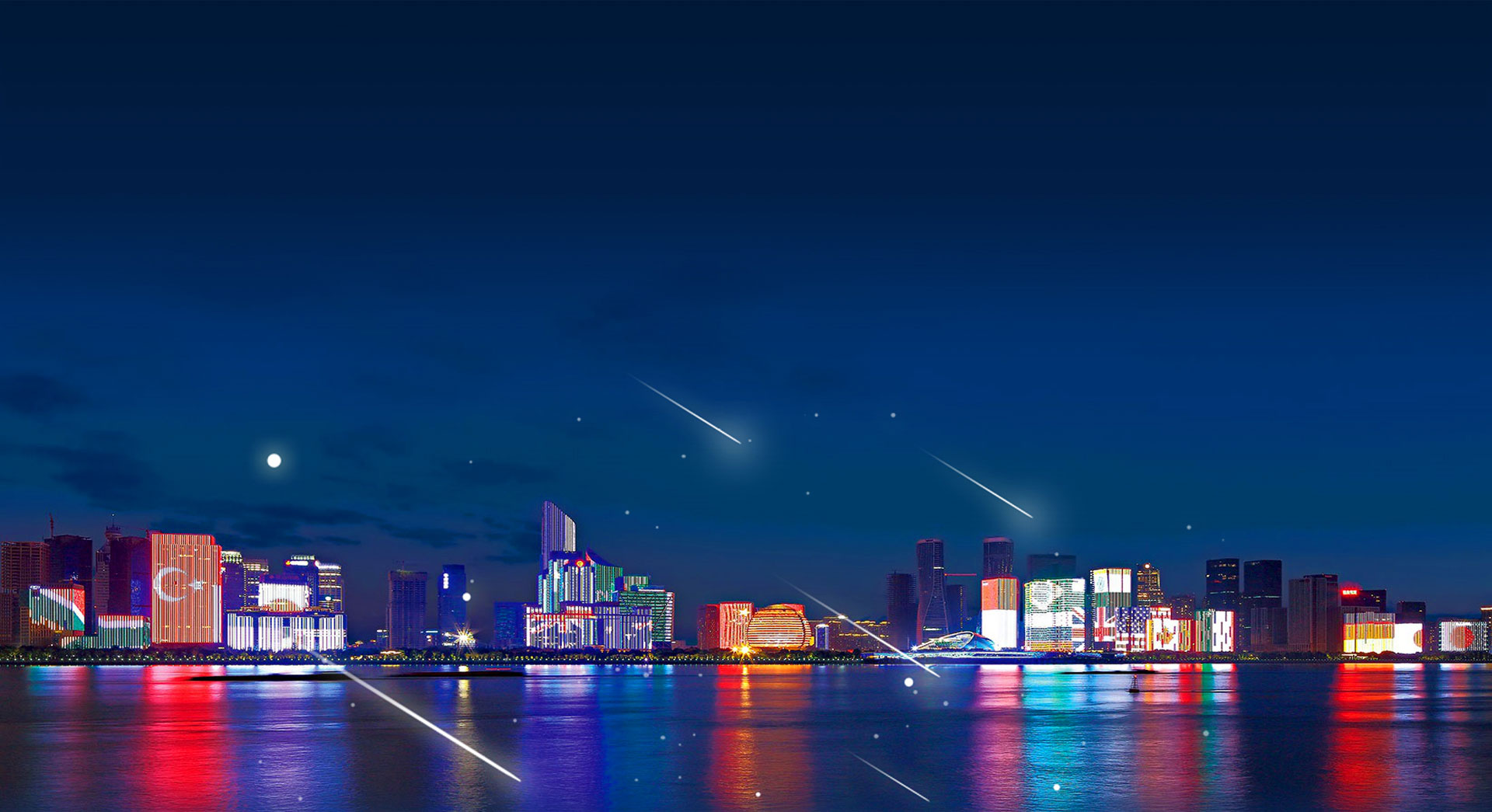

Video-level Brightening Display

While realizing the lighting, the control chip can be used to achieve graphic and video effects, which can meet the level of commercial advertising. It is a custom LED curtain screen widely used in curtain wall landscape and building lighting display, giving the building a colorful and shocking visual experience and creating a hot spot for communication
Video-level Brightening Display

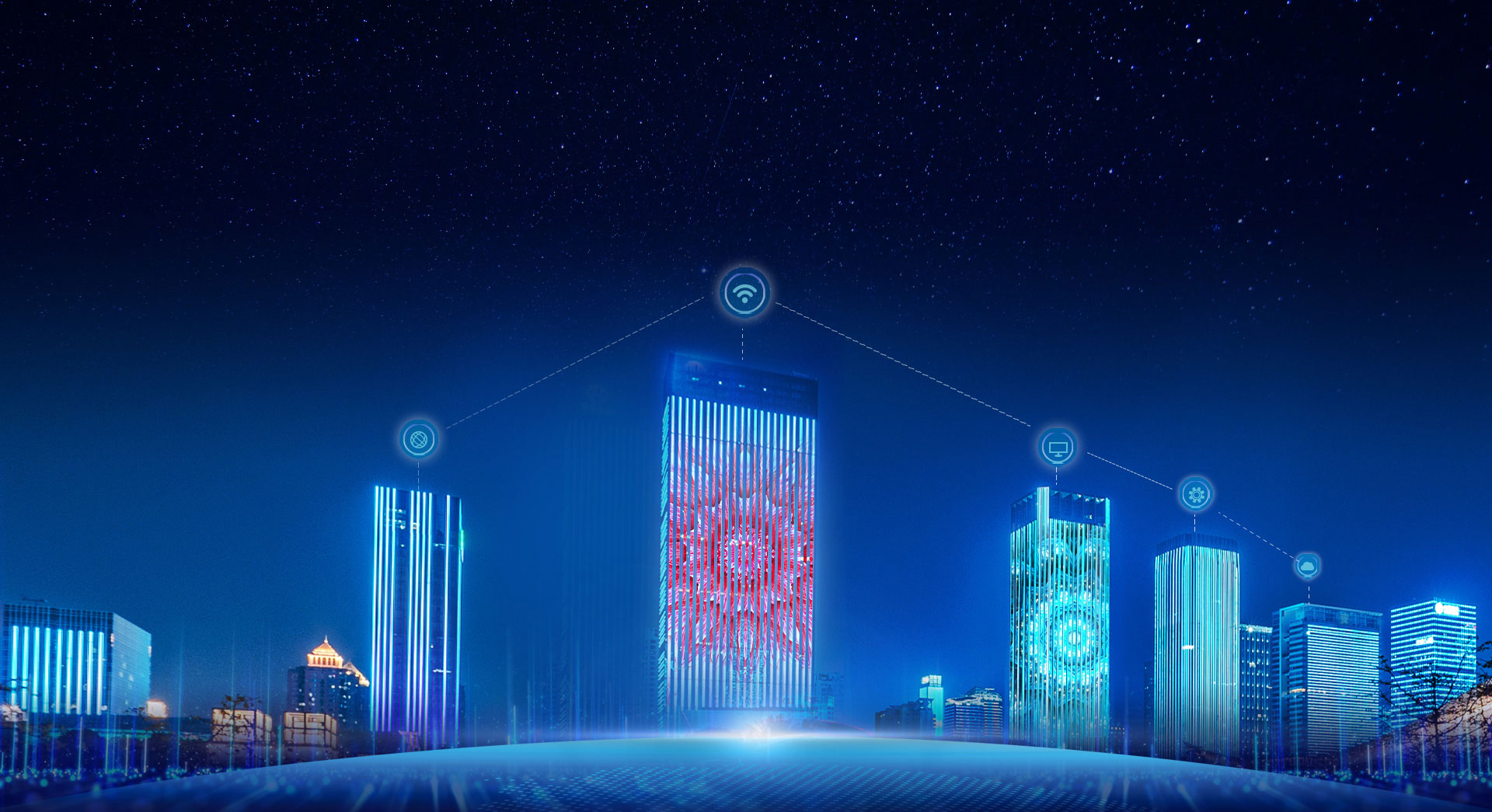

Highly Integrated, Long-distance Transmission

The power supply and the control pick-up card are embedded and integrated together. At the same time, it adopts the transmission principle of high voltage and low current, which can realize super strong pixel loading and long-distance transmission, and realize the maximum single-ended input 100-meter transmission
Highly Integrated, Long-distance Transmission

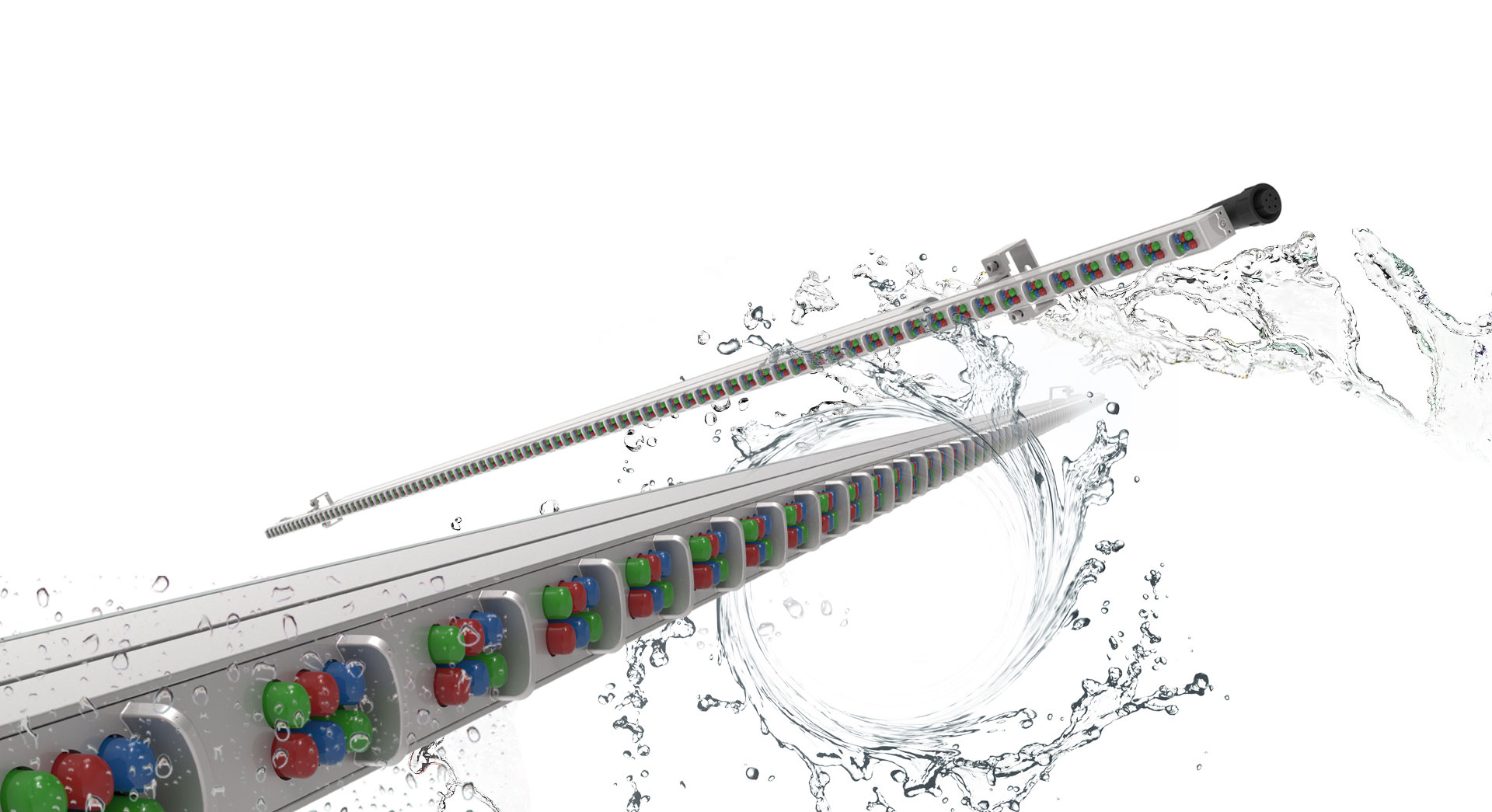

High Protection IP66

The screen is fully filled with polymer silicone, the surface is anti-aging electrostatic spray treatment, self-cleaning, strong corrosion resistance, double waterproof; Automatic cementing welding line packaging lead-free process, super long life of the screen ≥50000 hours
High Protection IP66

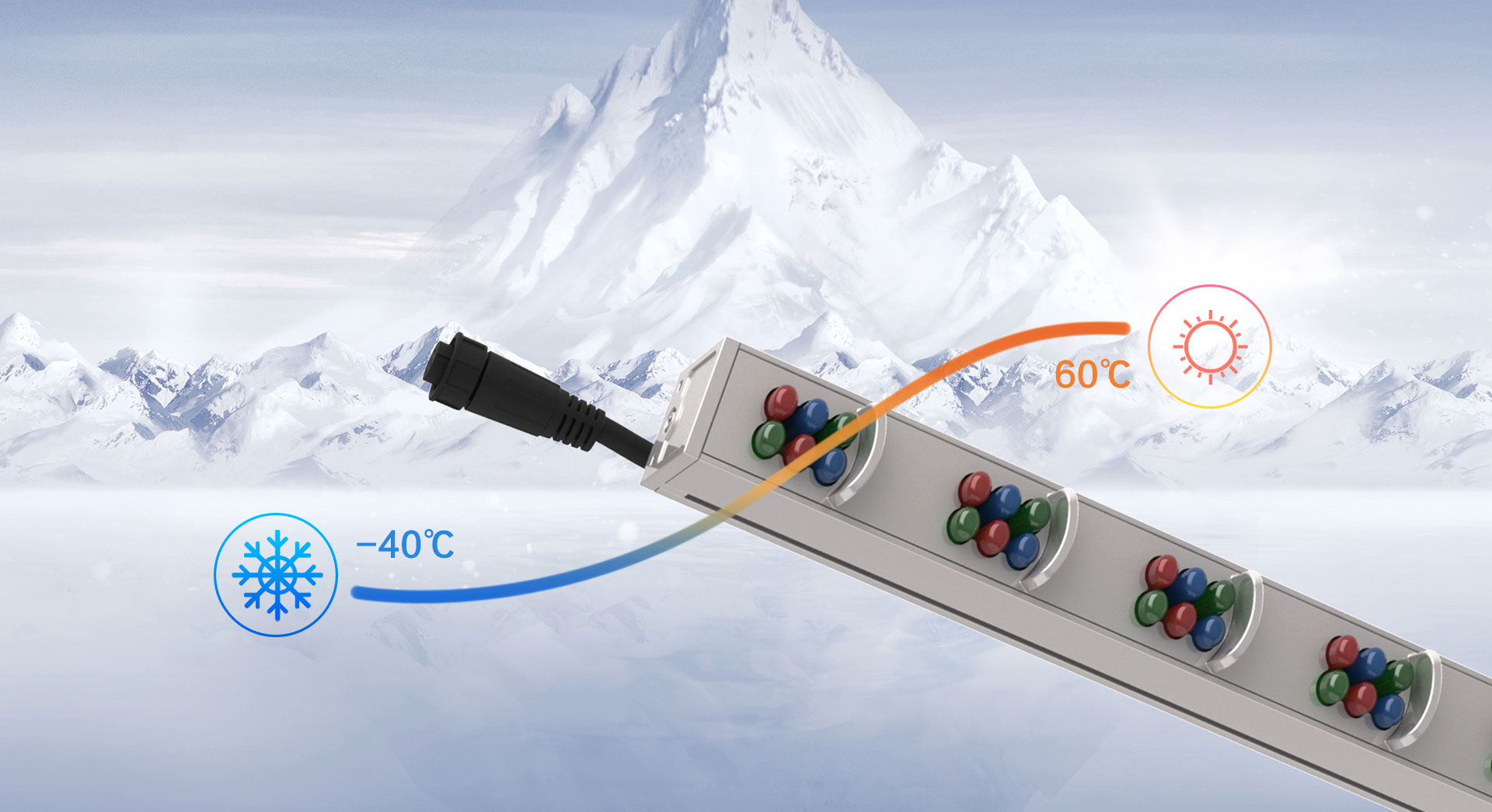

Outdoor all-weather, Meet a variety of environmental applications

High reliability design, it can operate stably in frigid temperatures as low as -40 degrees Celsius and extreme heat as high as 60 degrees Celsius
Outdoor all-weather, Meet a variety of environmental applications

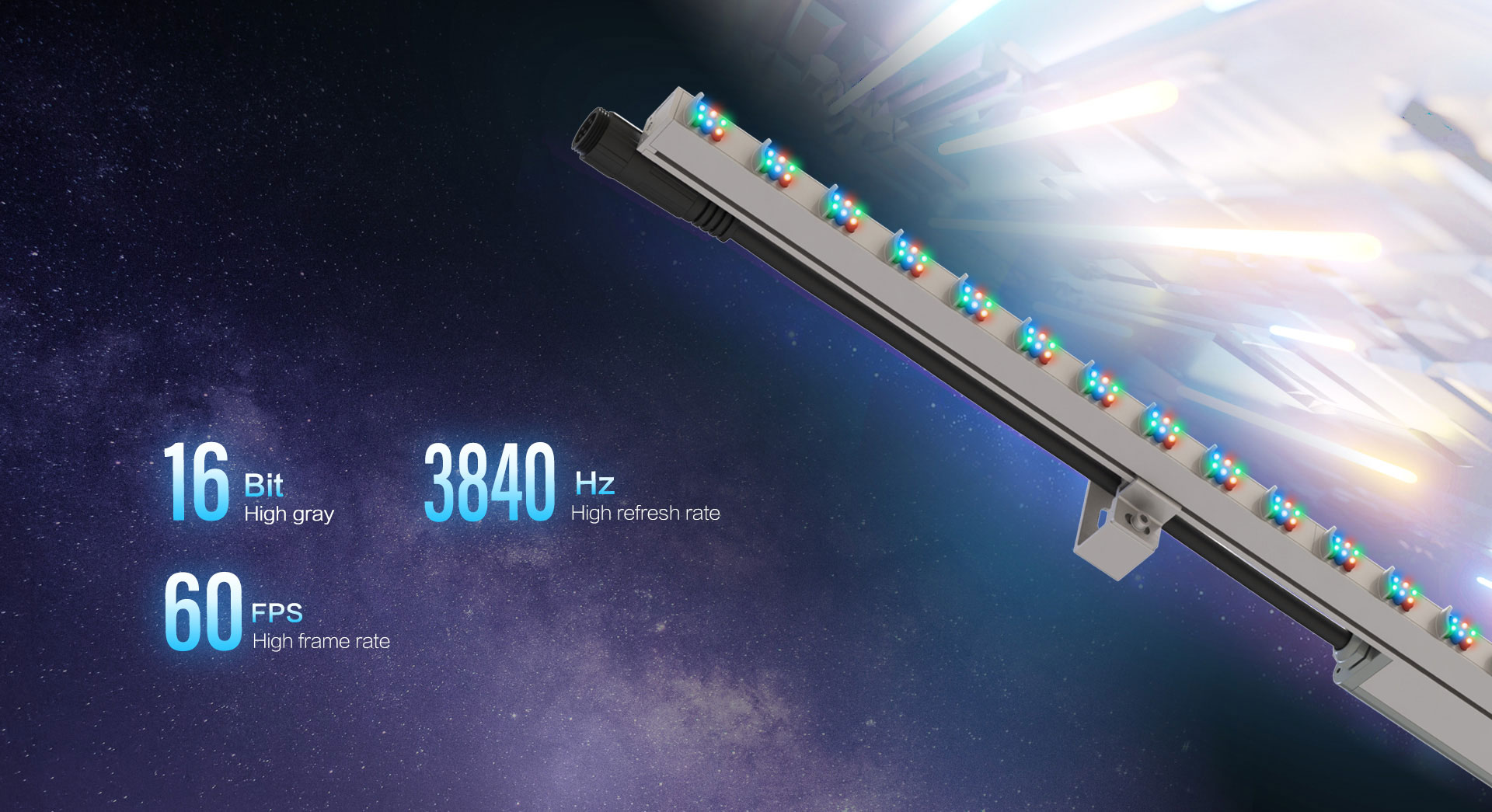

Smooth Flow, Smooth Natural

Smooth Flow, Smooth Natural

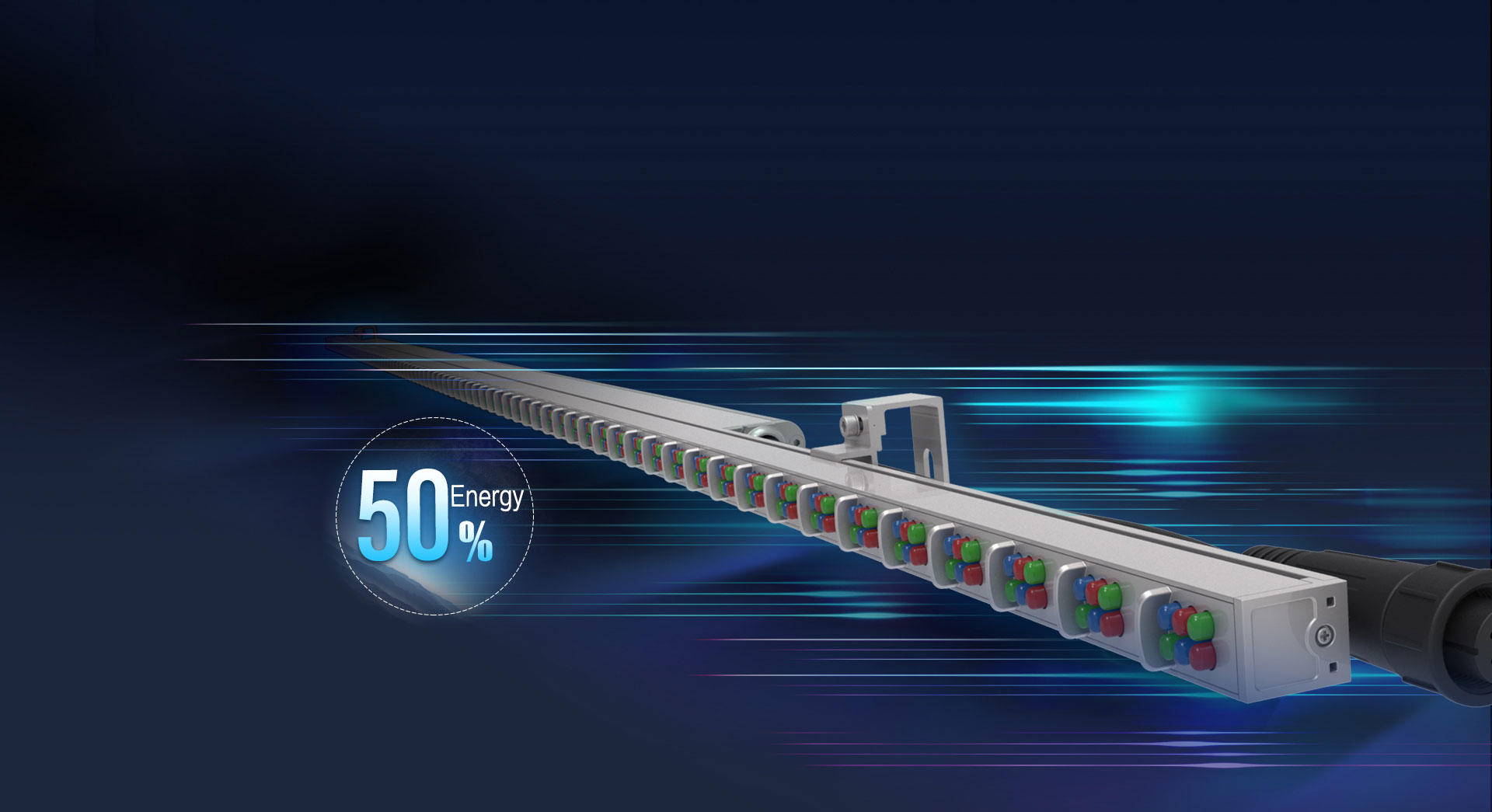

Intelligent power consumption control | saves power & AC equipment

Using tradtional screen need to installe independent air-conditioning cooling system, operation cost is high, and led curtain screen, high transparency, self heat dissipation, save operating costs
Intelligent power consumption control | saves power & AC equipment

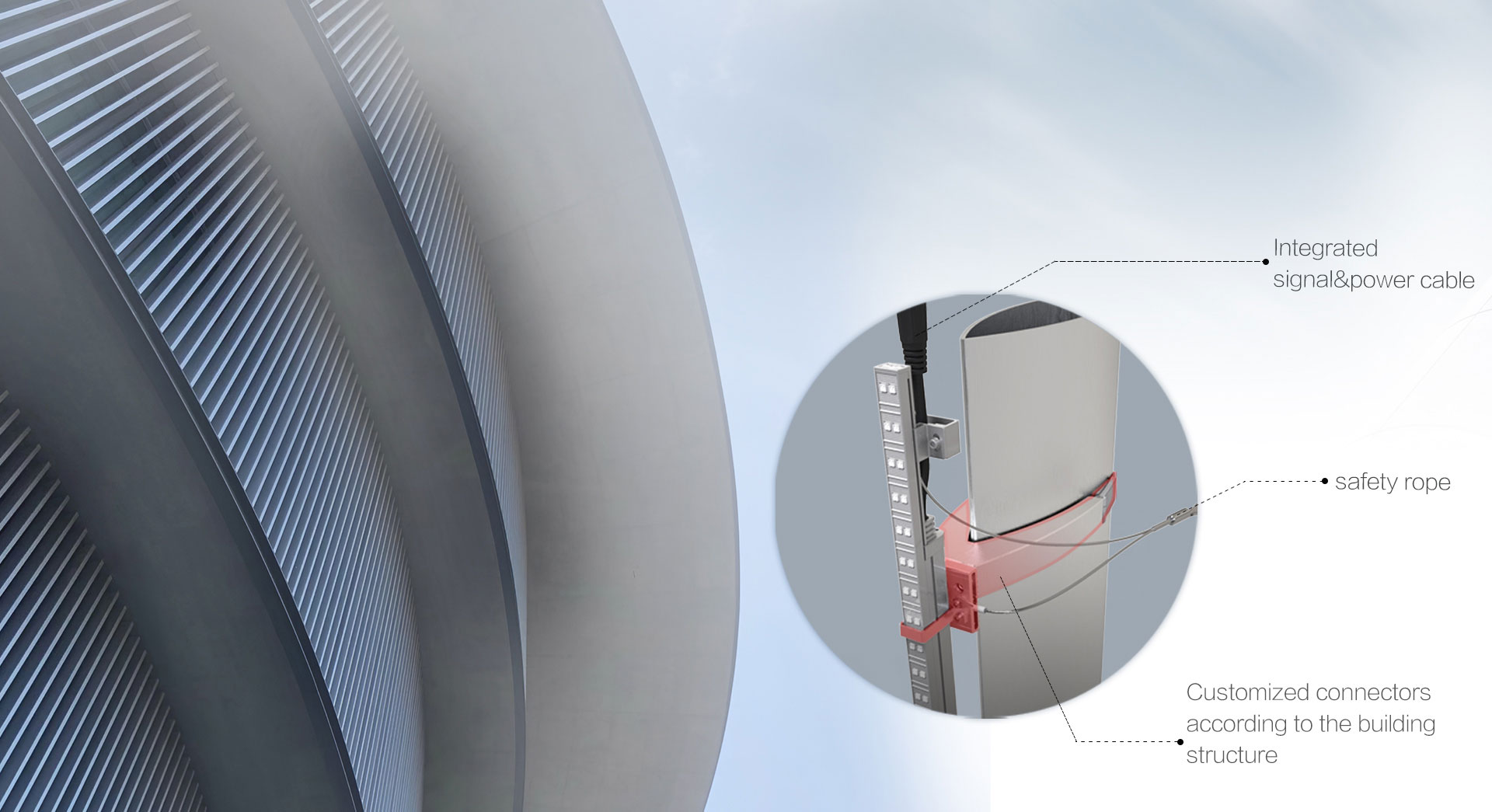

No steel structure, Easy installation & maintenance

It can front installed& maintainenance. Only a few components needed on the wall to supprt the single led strip. No need steel structure
No steel structure, Easy installation & maintenance

Linear-VLO Series Specification

Part NumbeVLO-20-A1VLO-20-A2VLO-25-A2VLO-31.25-A2
Pixel Pitch20mm20mm25mm31.25mm
Pixel CompositionSMD3535-1R1G1BSMD3535-2R2G2BSMD3535-2R2G2BSMD3535-2R2G2B
Pixel Density3.5cd/dot7cd/dot7cd/dot7cd/dot
Pixel Density (dot/m²)50dot/m²50dot/m²40dot/m²32dot/m²
Module Size (mm)1500*15*33mm1500*15*33mm2000*15*33mm2000*15*33mm
Cabinet Weight0.6KG/m0.6KG/m0.8KG/m0.8KG/m
Waterproof LevelIP66


*Note: For more product materials, pleaseDownloadhere, or contact us directly
