Tfree Transparent Led Window Display
+

Tfree Transparent Transparent LED Panel

Tfree series includes :Tfree-F(front led ) series、Tfree-S(side led )series. Leyard Vteam transparent led display is a kind of innovative transparent led display, it is transparent, novel structural, HD high brightness,  Simple application, intelligent control, energy-saving and environmental, novel imaging, etc. it is realized the brand  new, irreplaceable  high-tech display solution and bring wider commercial applications, and le the large media advertising market.


Pixel Pitch:

Tfree-F: P3.9-7.8,  P7.8,  P10.4

Tfree-S: P3.9-7.8,  P7.8,  P10.4,  P15.6


Features of Transparent Transparent LED Panel

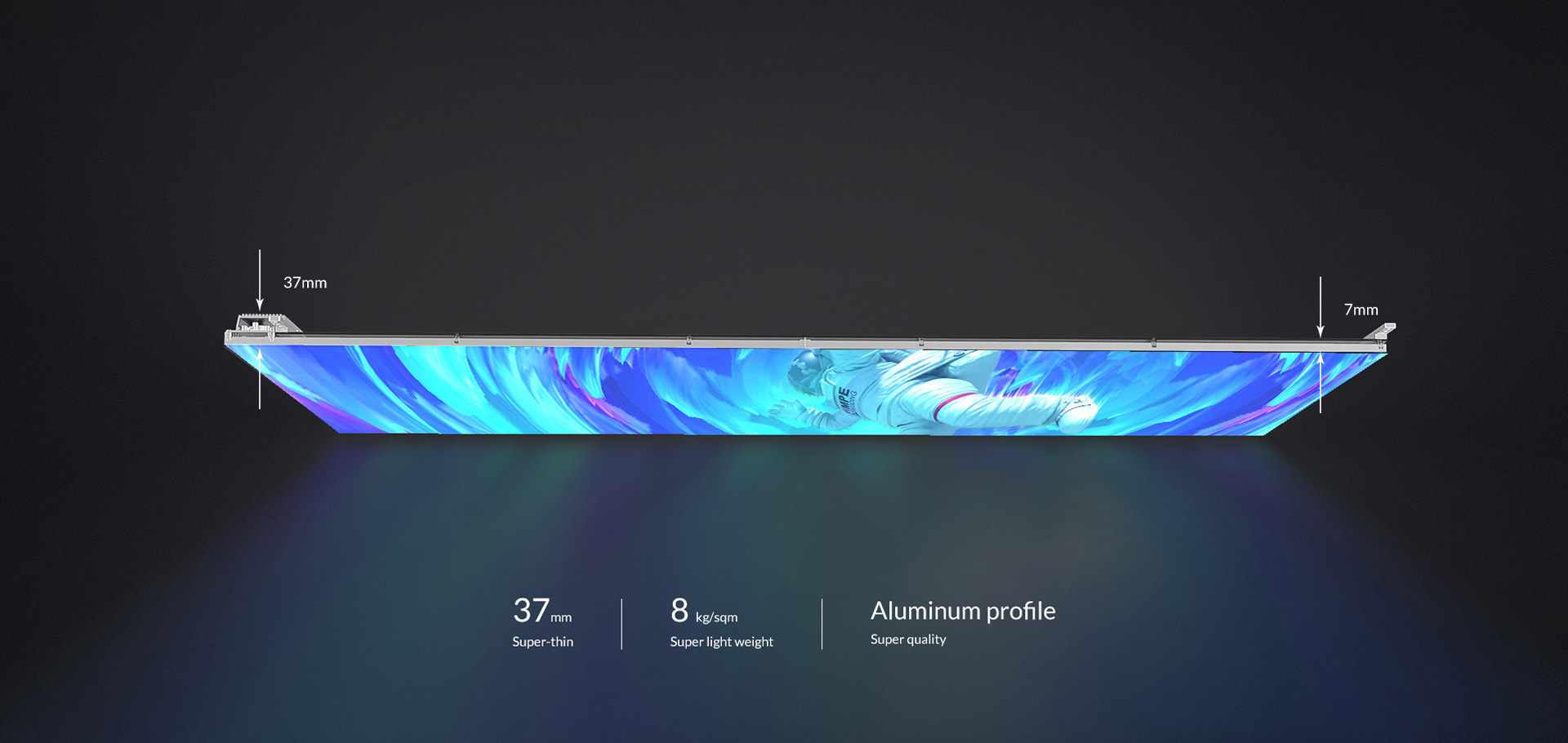

Neat And Picturesque, Ultra-light And Ultra-thin

Free Frames, inner cables design, high-level seamless stitching
Neat And Picturesque, Ultra-light And Ultra-thin

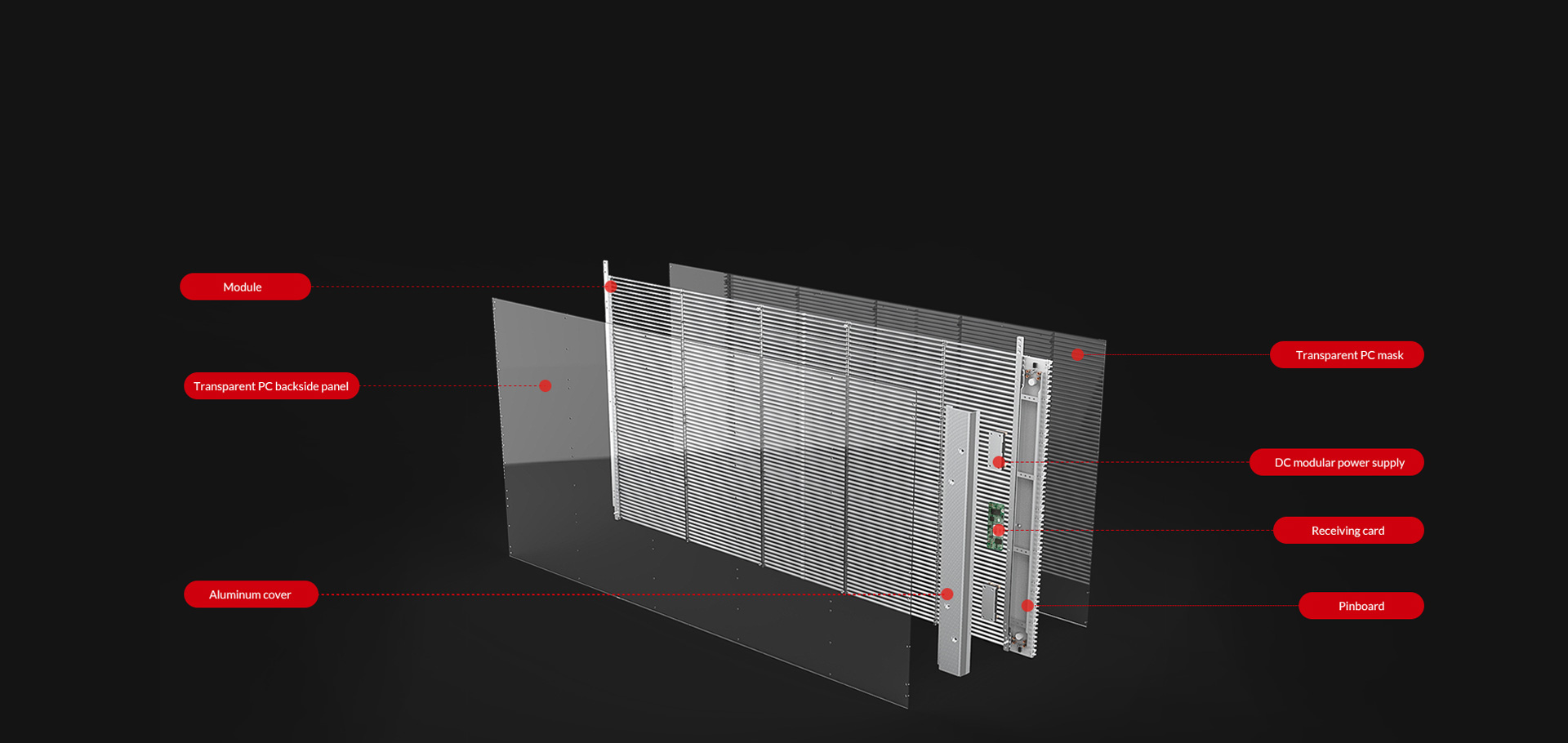

Product Structure

Product Structure

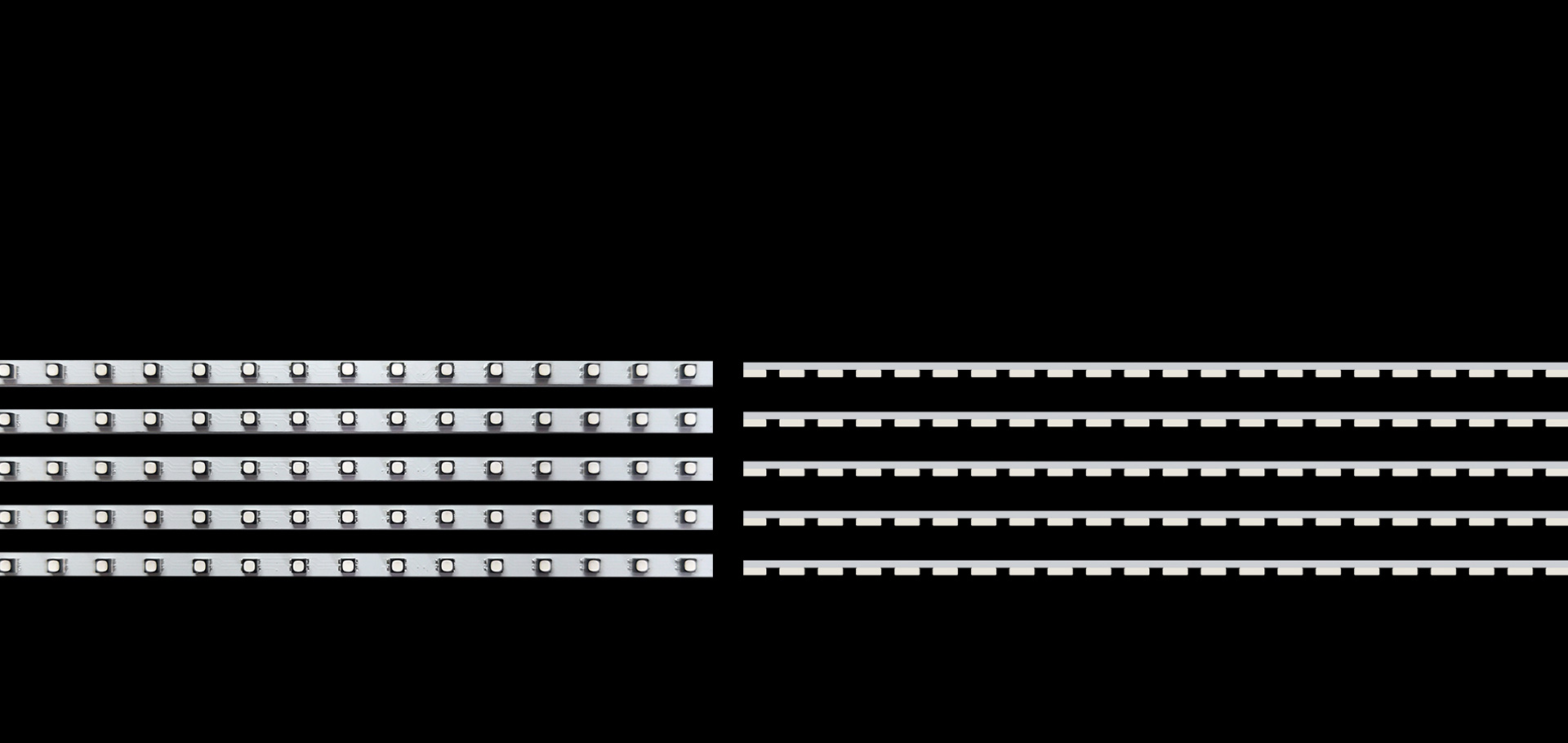

Tfree-f Front Led & Tfree-s Side Led

The Tfree series includes two LED lamp bead luminous placement processes. Tfree-F uses positive luminescence technology, which has a high-cost performance, while Tfree-S uses luminescence measurement technology, which has higher transparency and brightness to meet different user needs.
Tfree-f Front Led & Tfree-s Side Led

High Transparency | 92% Transparency

Transparency up to 61~92% above,When the image is displaying, no see the screen, it appears as if the image in the air directly
High Transparency | 92% Transparency

Rapid Dynamic Display, Natural Light Flow

Rapid Dynamic Display, Natural Light Flow

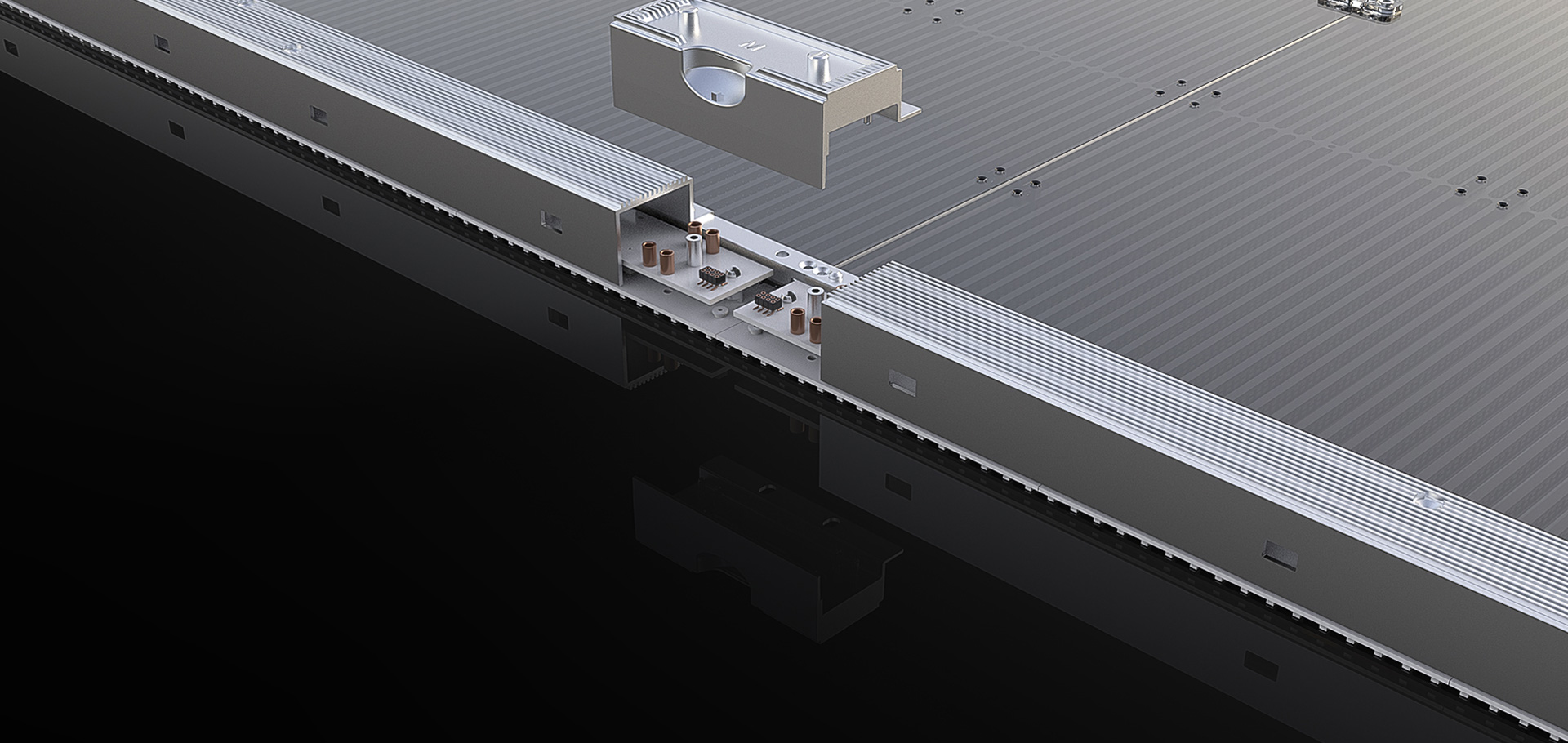

Minimal And Quick Installation

The cabinets connection adopts module plug-in connection and wireless connection between the upper and lower cabinet---Keep the cabinet neat and beautiful
Minimal And Quick Installation

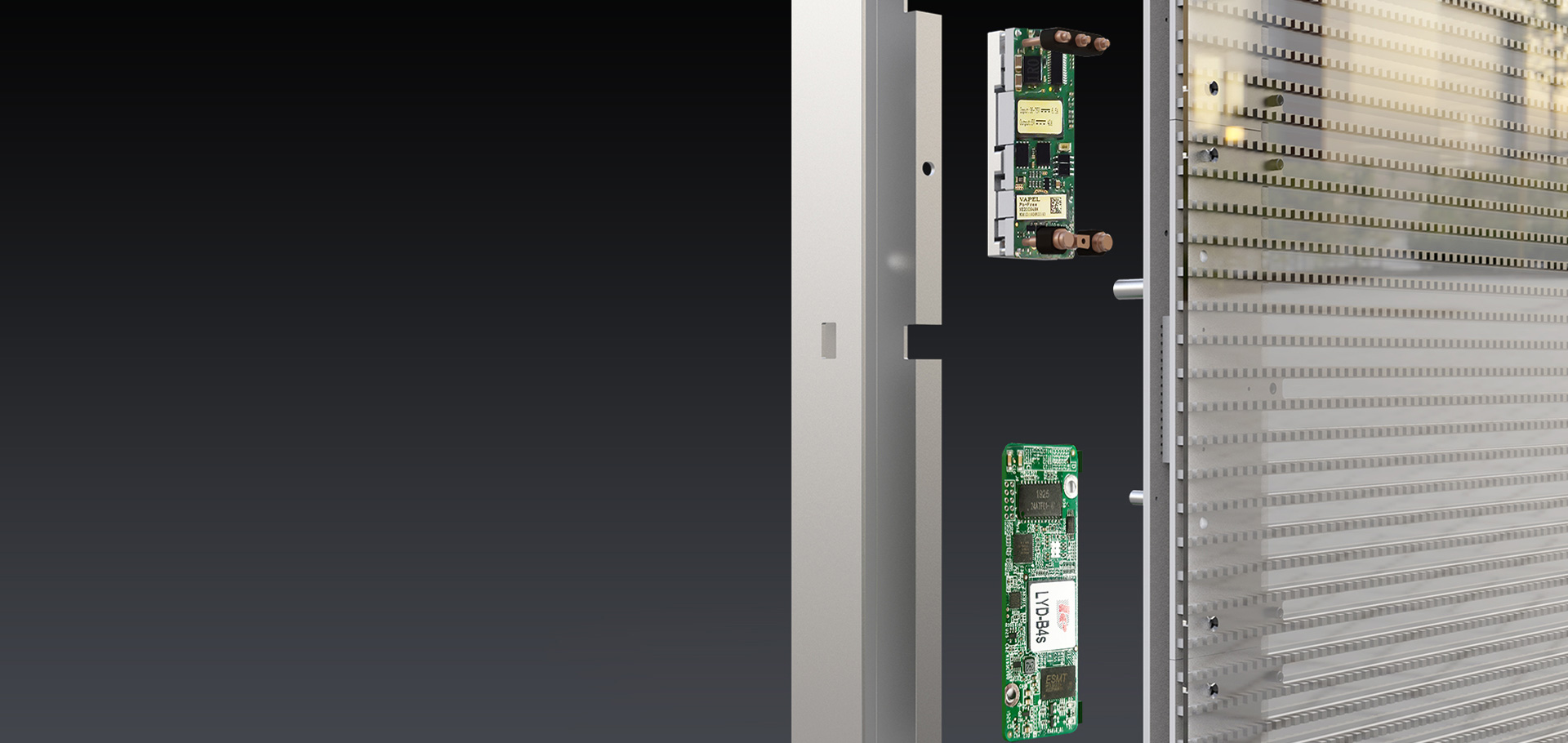

Easy To Maintain

One modular design Patented structure design The LYD-B4S receiving card and DC power supply are integrative modular. Simple and quick disassembly and maintenance
Easy To Maintain

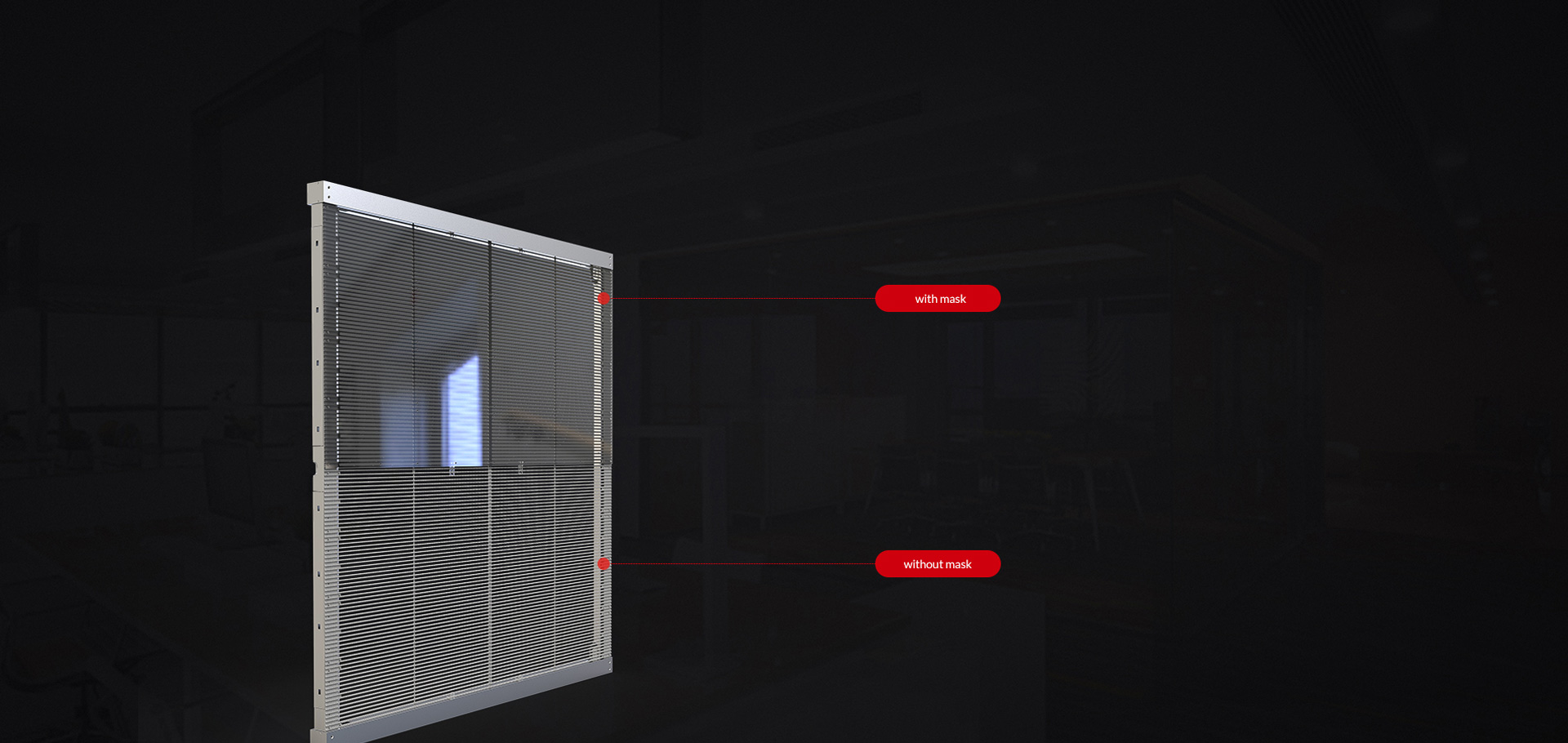

Transparent Pc Mask As Option, No Reflection

Transparent Pc Mask As Option, No Reflection

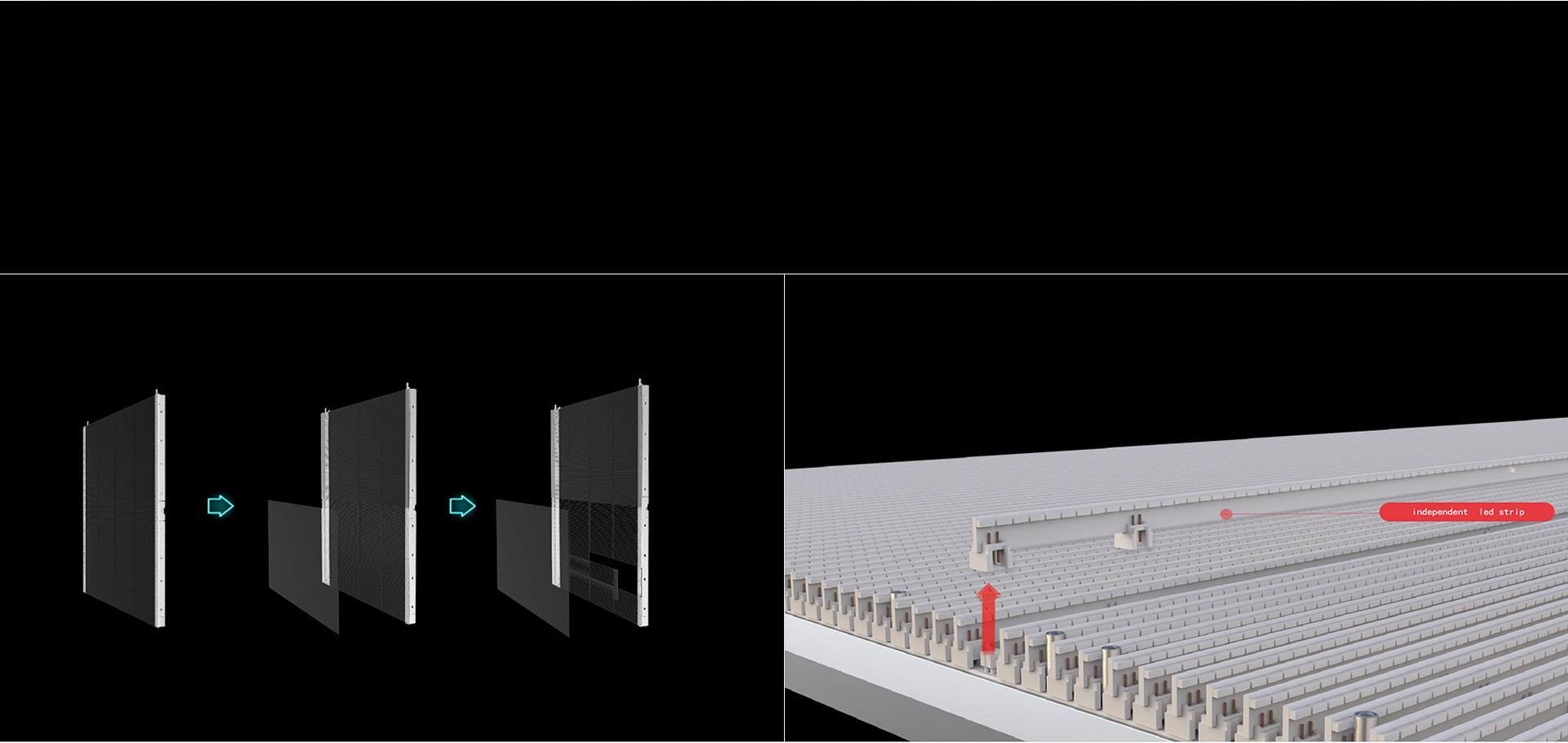

Maintenance

Tfree-F series module front service & Tfree-S series Independent dismounting service for side emitting led strip
Maintenance

Tfree Panel Specification

Part NumberTfree-F3.9Tfree-F7.8Tfree-F10.4Tfree-S3.9Tfree-S7.8Tfree-S10.4Tfree-S15.625
Pixel Pitch (H/V)3.9683/7.8125mm7.8125mm10.4167mm3.9683/7.8125mm7.9365/7.8125mm10.4167mm15.625mm
LED ConfigurationSMD2121/1921SMD2121/1921SMD2121/1921SMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDE
Brightness800CD/m2           4000CD/m2800CD/m2           4000CD/m2800CD/m2           3000CD/m23000~5000CD/m23000~5000CD/m23000~5000CD/m23000~5000CD/m2
Pixel Density32256dot/m216384dot/m29216dot/m232256dot/m216128dot/m29216dot/m24096dot/m2
Transparency≧61%≧61%≧70%≧82%≧82%≧88%≧92%
Cabinet Size1000*500*37mm    500*500*37mm1000*500*37mm   1000*250*37mm
Cabinet Resolution252*64dot                 126*64dot128*64dot                 64*64dot96*48dot           48*48dot252*64dot                 252*32dot126*64dot                 126*32dot96*48dot           96*24dot64*32dot           64*16dot
Cabinet Weight4.0kg/Panel   2.0kg/Panel4.0kg/Panel   2.0kg/Panel
IP Rating ( front/back)IP30IP30


*Note: For more product materials, pleaseDownloadhere, or contact us directly
