V-Spirit
+

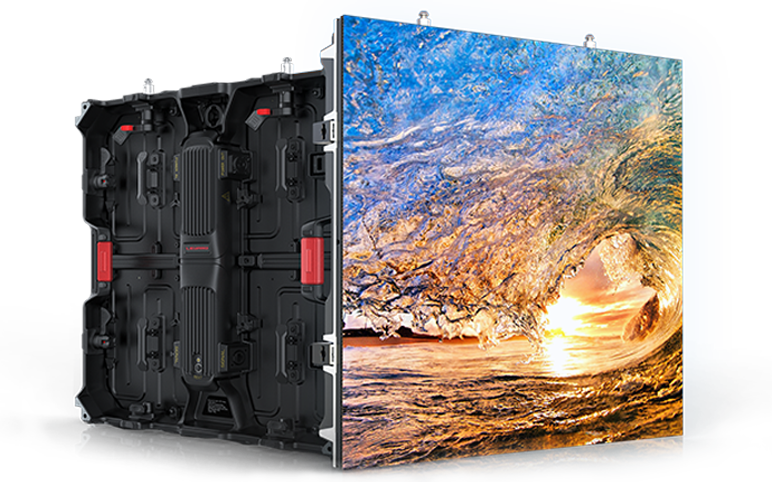

Rental LED Screen-V-Spirit Series

V-Spirit rental series include VSI indoor rental series, VSO outdoor rental series, VSF floor tile rental series. It is a new generation of smart display screen rental series. It adopts an integrated high-strength frame design, modular design of the cabinet, modular power supply.  It is widely used in concert, TV party, Large-scale entertainment programs, commercial exhibitions.


Pixel Pitch:

VSI:    P1.5,  P2.5,  P2.9,  P3.9

VSO:  P2.8,  P3.9,  P4.8

VSF:P3.9,  P4.8

V-Spirit Features

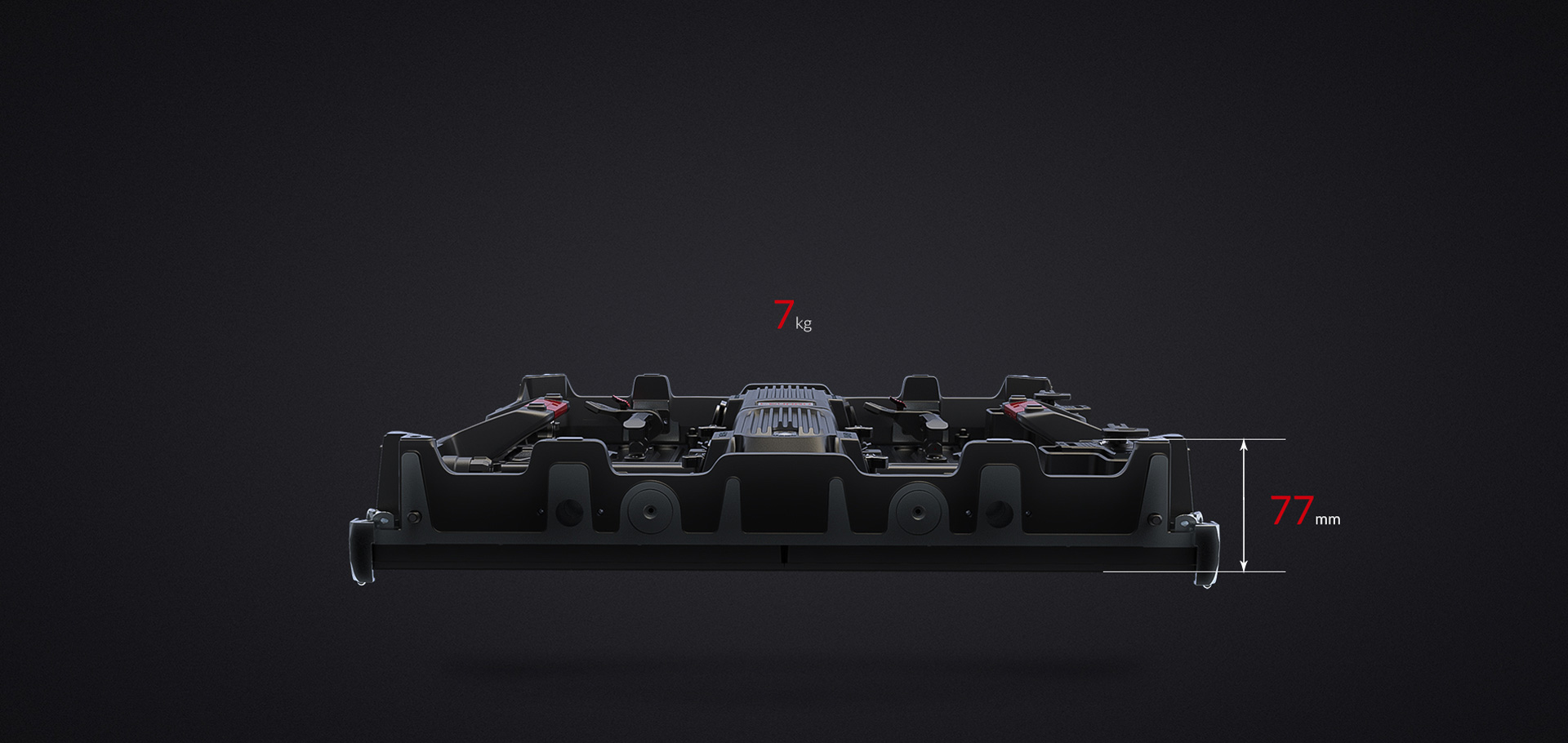

Light-weight
Integrated compact frame design, lightweight
Light-weight

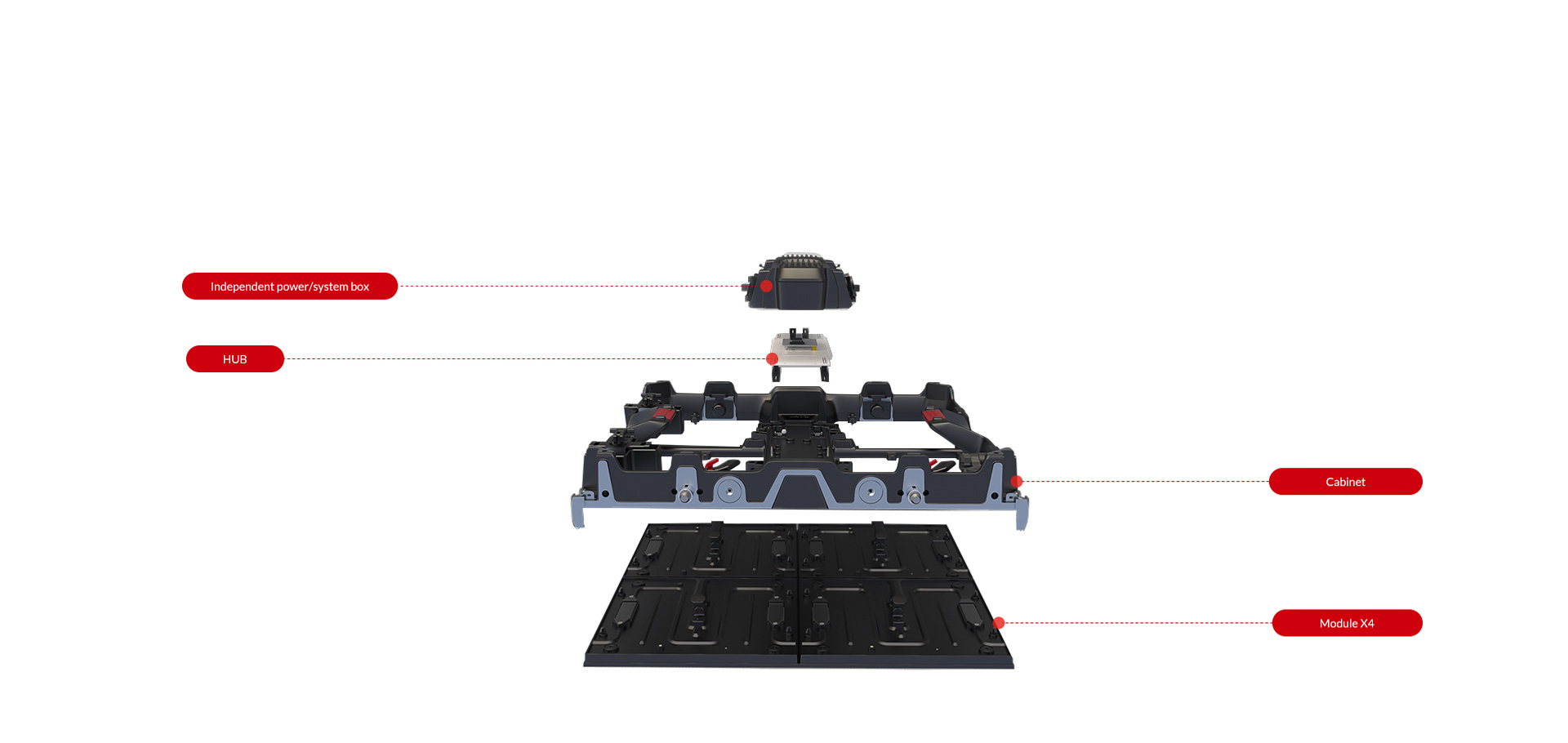

Product Structure
Product Structure

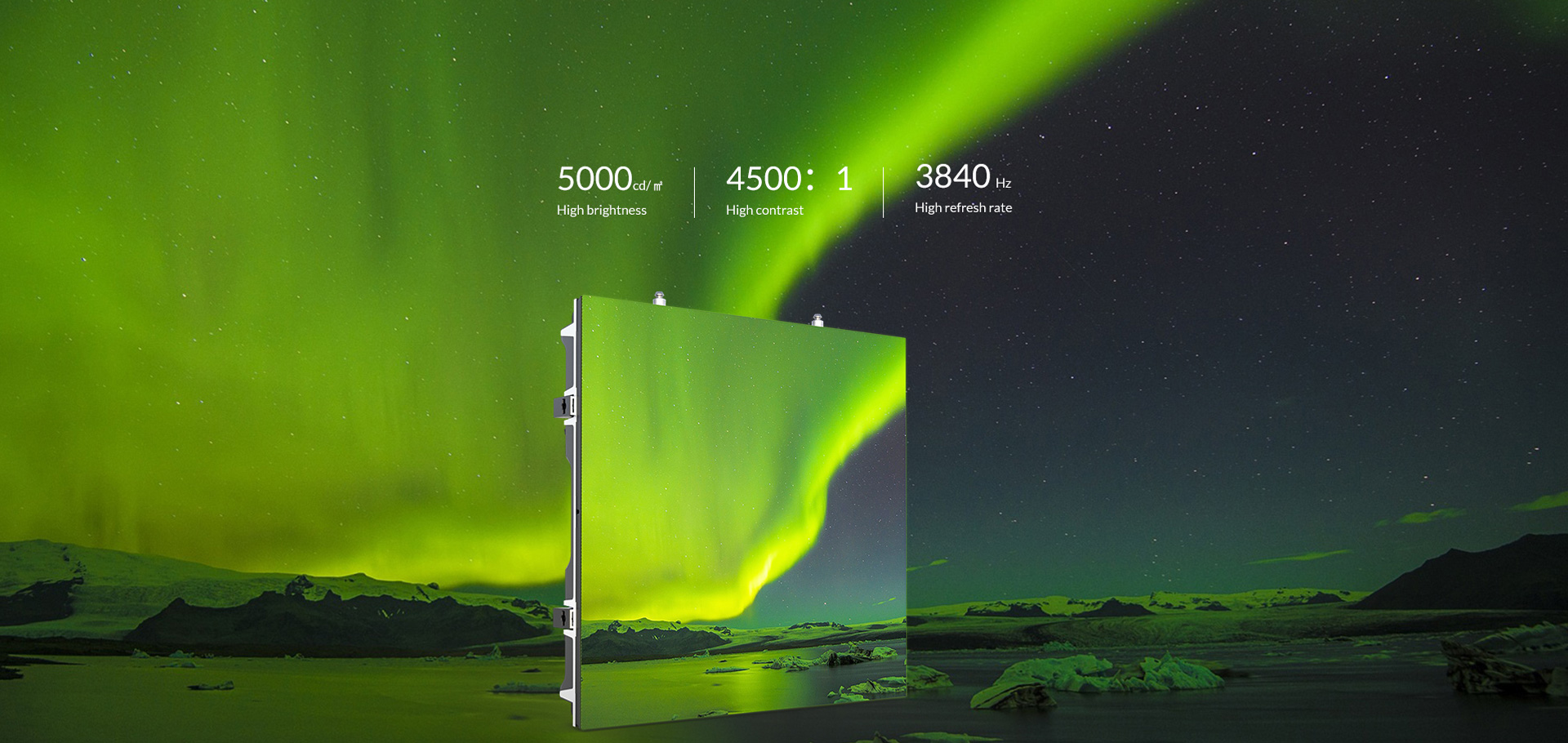

Rapid Dynamic Display, Natural Light Flow
Rapid Dynamic Display, Natural Light Flow

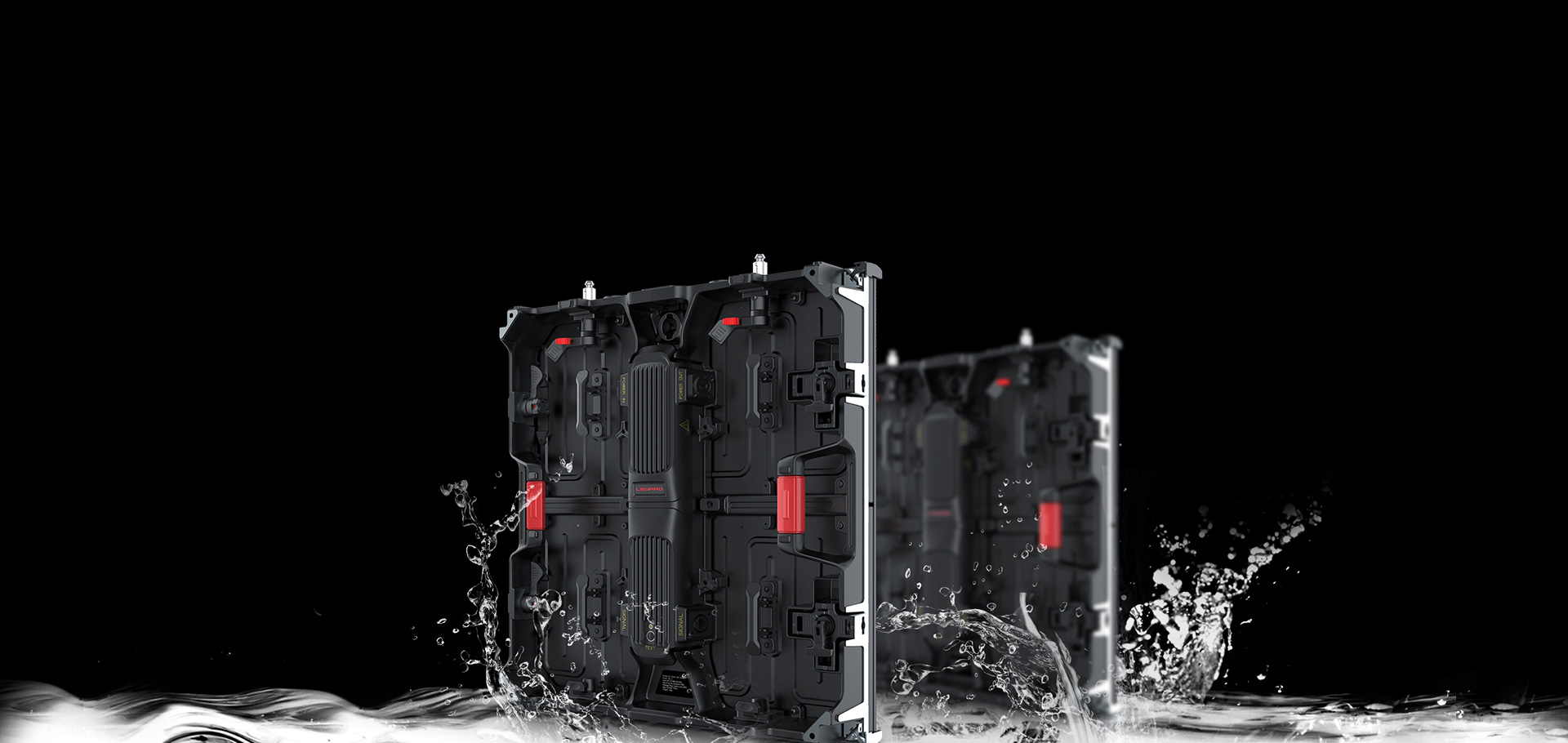

Waterproof And Dustproof
Integrated glue process design, military-grade IP65 full protection
Waterproof And Dustproof

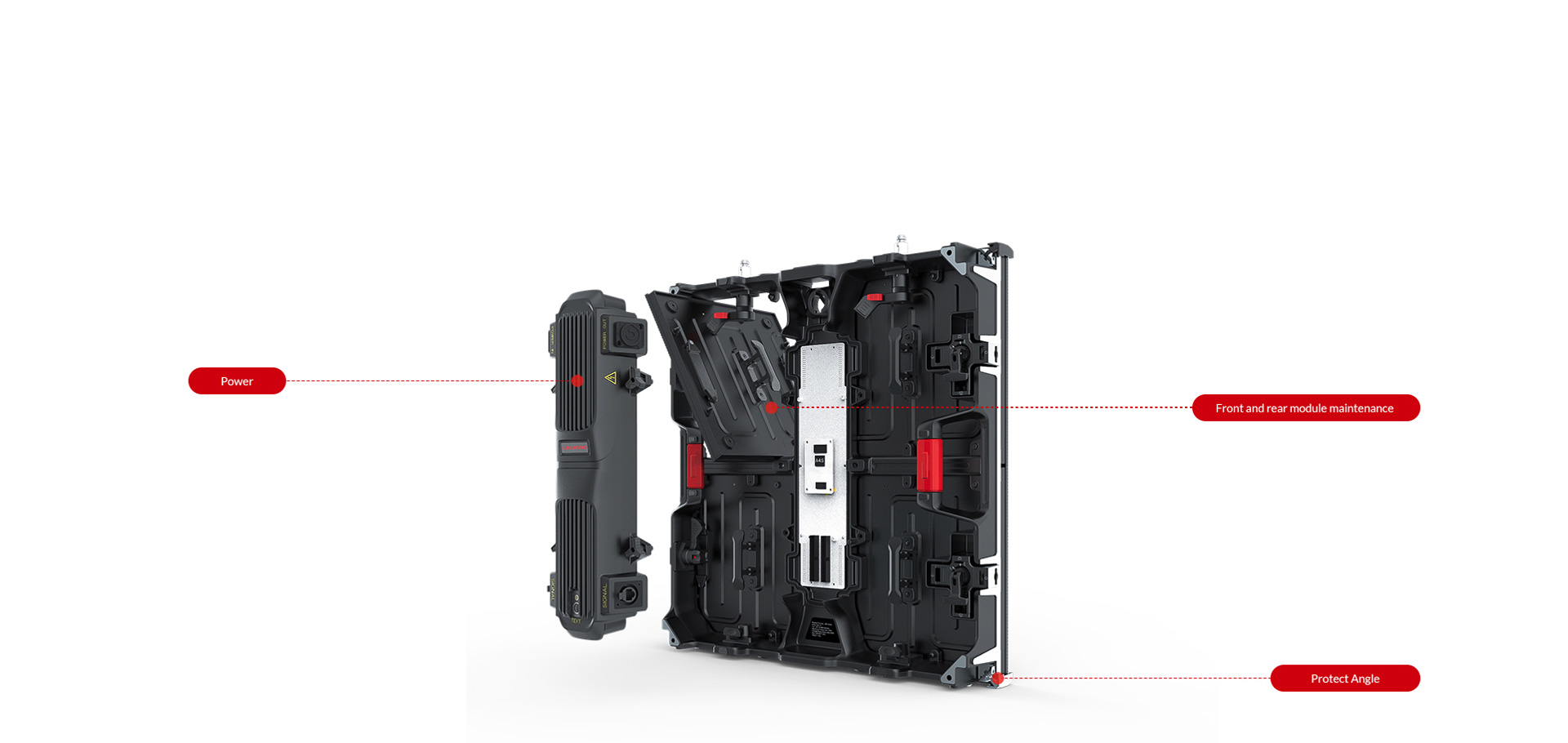

Modular Design
Front and rear module maintenance, independent PSU unit as option
Modular Design

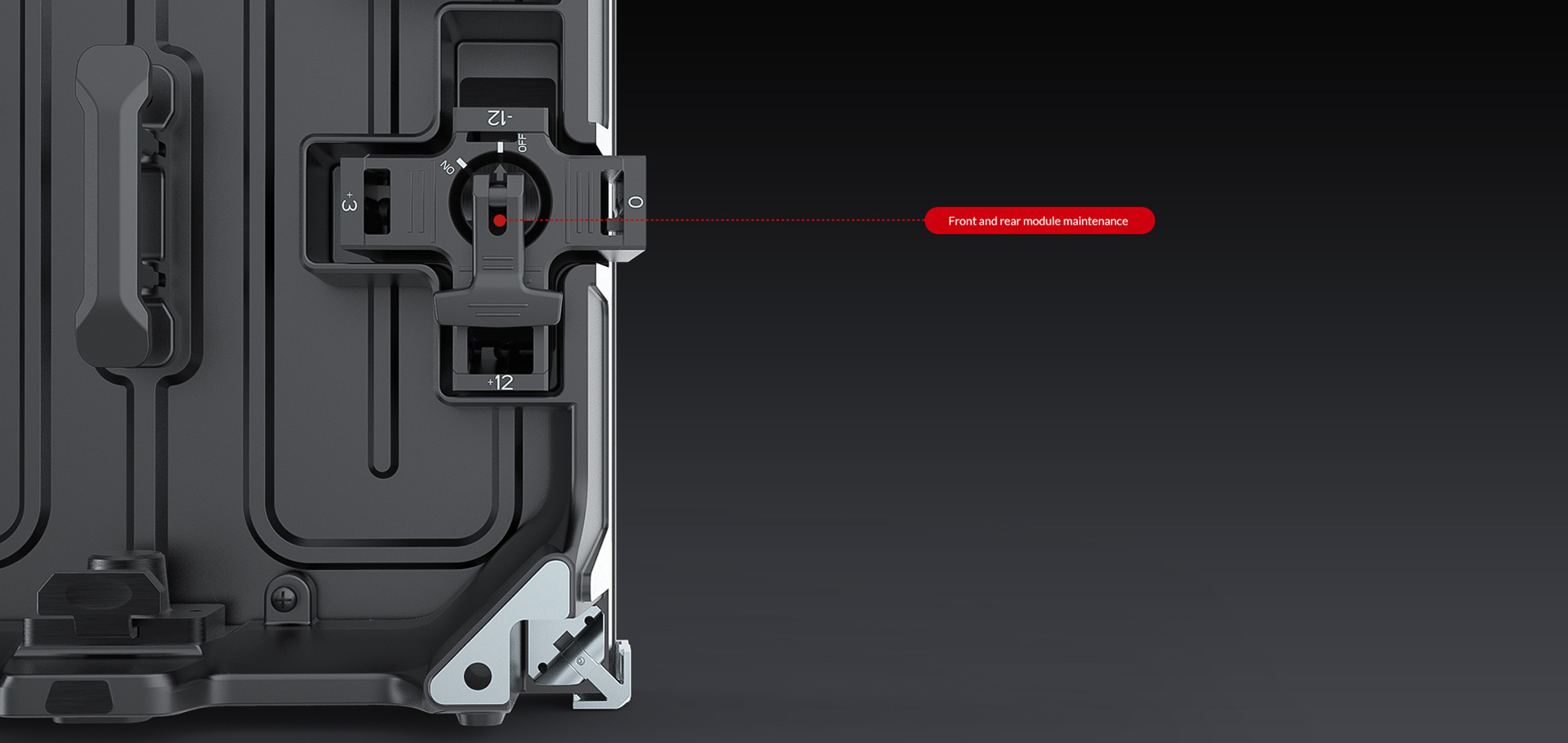

Convex And Concave Arc
VSO (+12° +3° 0° -12°) VSI (+5° -2.5° 0° -5°)
Convex And Concave Arc

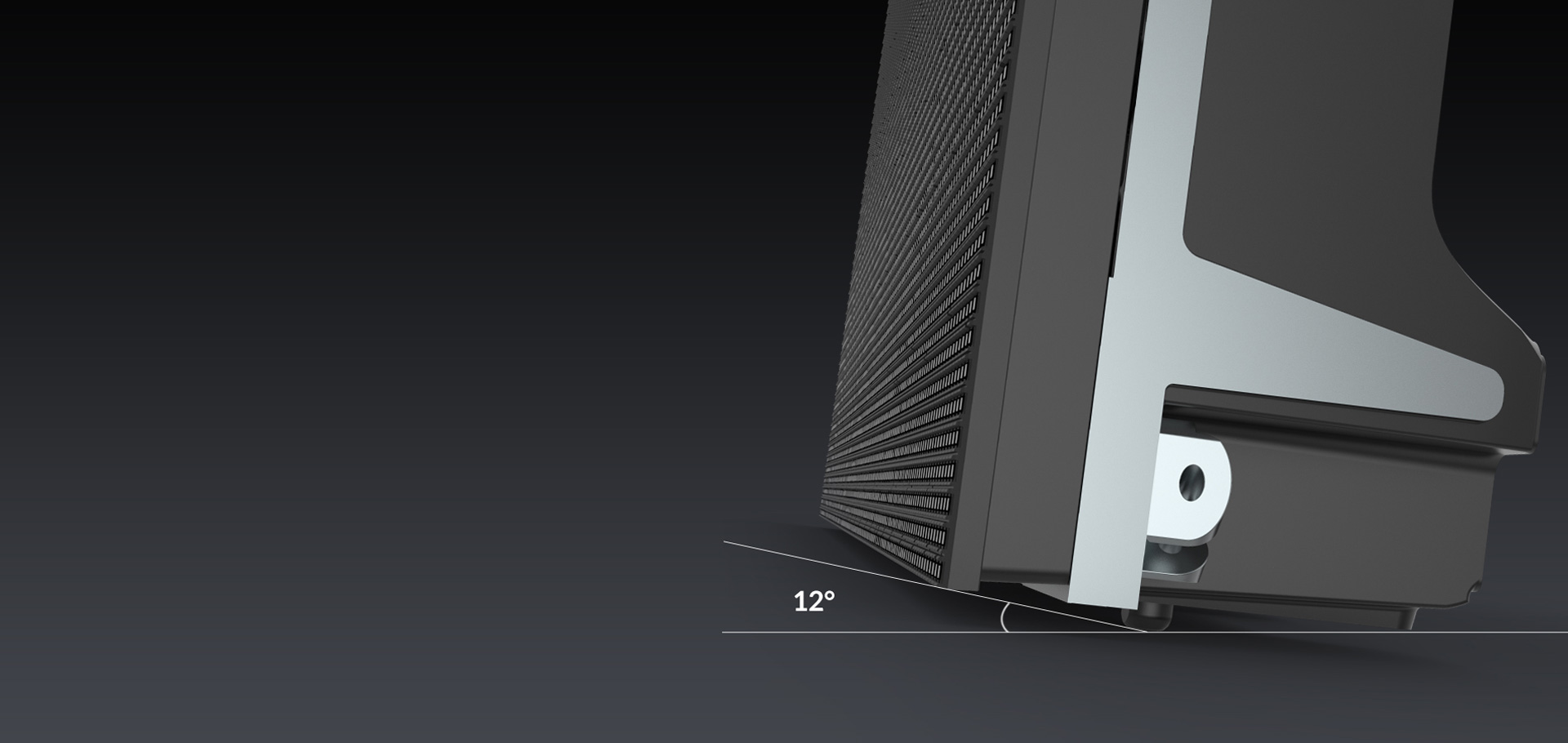

Anti-knock Design
The box body adopts anti-bump design, which can protect the LED tube in the module,Effectively prevent the deformation of the bottom shell and mask due to external force,And affect the overall display
Anti-knock Design

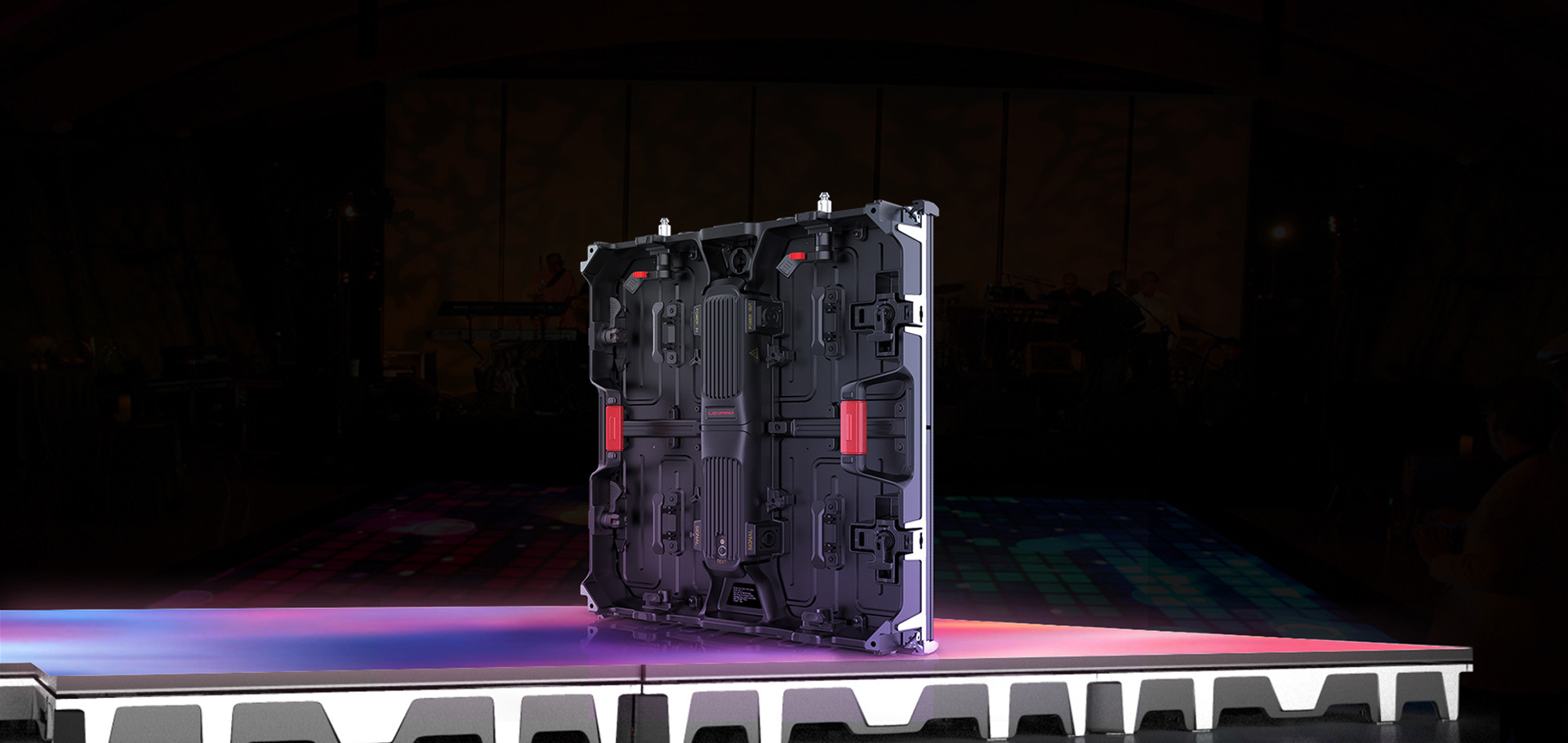

Smart Interaction
Upgraded into VSF floor tile screen with interactive functions
Smart Interaction

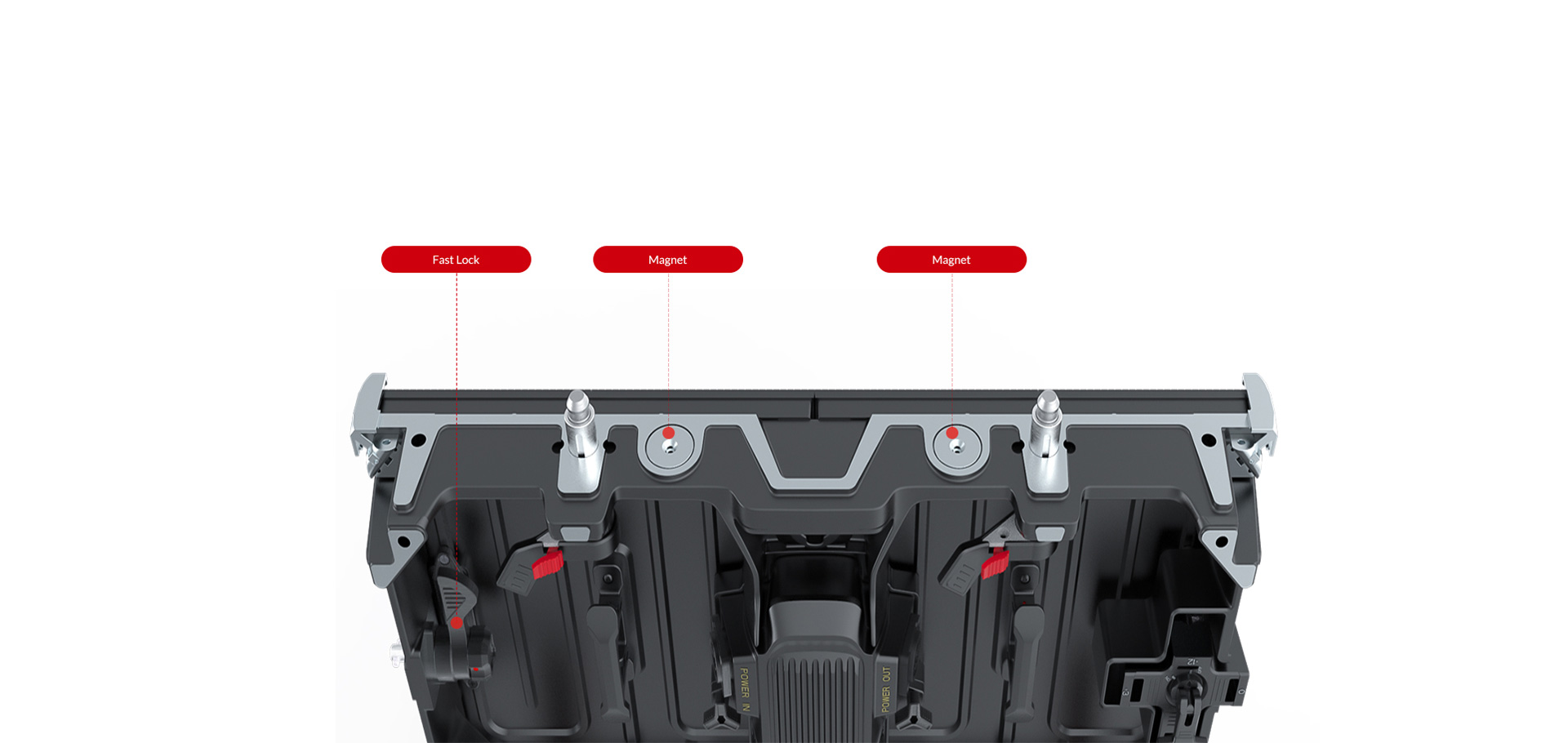

Fast Assemble
Fast lock design and fast locking device for quick and easy installation
Fast Assemble

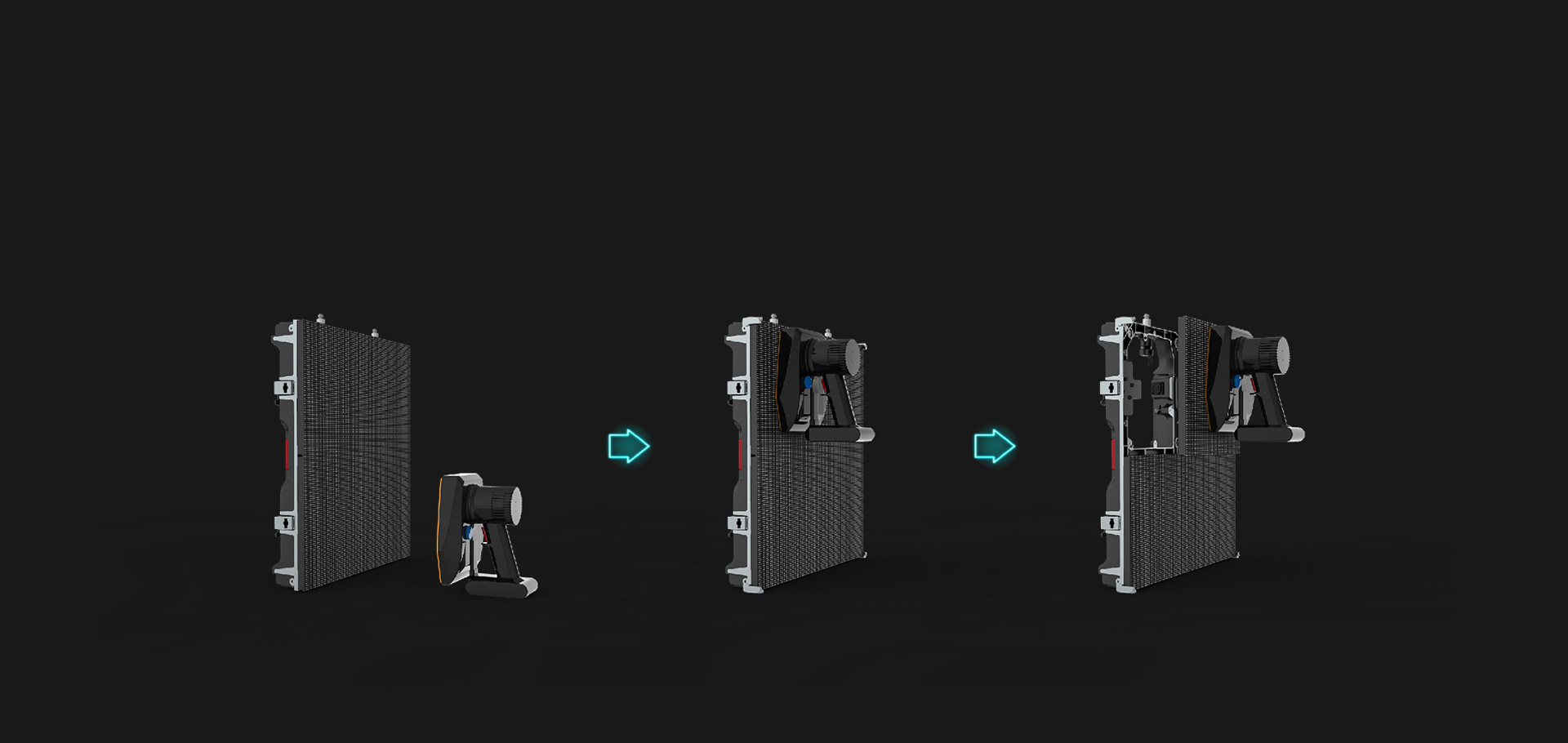

Maintenance
Maintenance

V-Spirit Panel Specification

Part NumberVSI-1.5VSI-2.5VSI-2.6VSI-2.9VSI-3.9VSO-2.8VSO-3.9VSO-4.8VSO-F 3.9VSO-F 4.8
Pixel Pitch1.56mm2.5mm2.6mm2.97mm3.91mm2.84mm3.9mm4.8mm3.9mm4.8mm
LED ConfigurationIMD-F15SMD1515SMD1515SMD2121SMD2121SMD1415SMD1921SMD1921SMD1921SMD1921
Pixel Density409600dot/m2160000dot/m2147456dot/m2112896dot/m265536dot/m2123904/m265536dot/m243264dot/m265536dot/m243264dot/m2
Module Size250x250mm250x250mm250x250mm
Module Resolution160x160dot100x100dot96x96dot84x84dot64x64dot88x88dot64x64dot52x52dot64x64dot52x52dot
Cabinet Size500x500x77mm500x500x77mm500x500x85mm
Cabinet Resolution320x320dot200x200dot192x192dot168x168dot128x128dot176x176dot128x128dot104x104dot128x128dot104x104dot
Cabinet Weight6.5kg/Panel        7.5kg /Panel7.0kg/Panel        8.0kg /Panel

9 kg/Pane

l10kg /Panel

IP Rating ( front/back)IP30IP65IP65
EnvironmentINDOOROUTDOOROUTDOOR
Brightness600CD/m21000CD/m21000CD/m21000CD/m21000CD/m25000CD/m25000CD/m25000CD/m21100CD/m21100CD/m2


*Note: For more product materials, pleaseDownloadhere, or contact us directly
Related LED Displays Products
VTX VTX

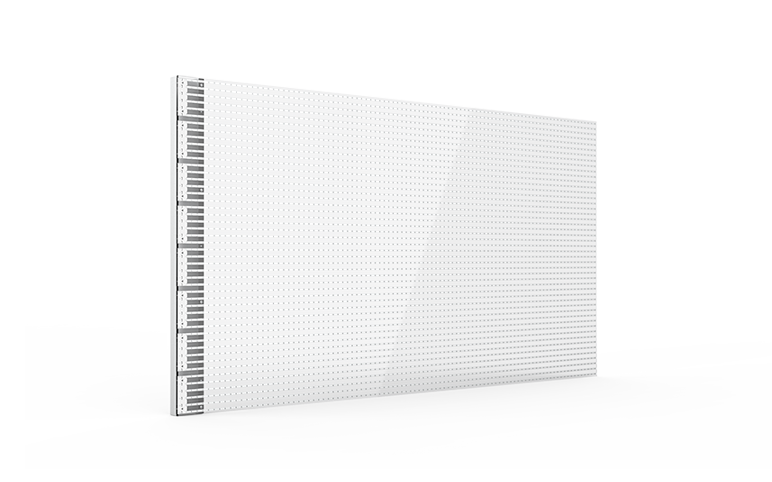

Transparent Led Display | VTX Ultra Thin Film Series
