V-Rhea
+

Rental Led Screen V-Rhea Series

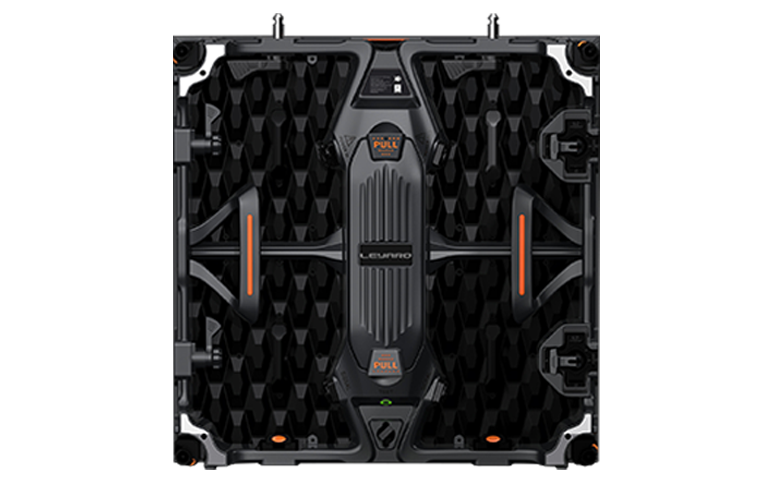

V-Rhea is a new generation of indoor rental series with strong frame design, the modular design of cabinets, modules and power boxes. It chooses black SMD1515 and dark black masks to make better effects with a low grayscale. It adopts front and back service to make cabinet maintenance more convenient.


Pixel Pitch

P2.5 / P2.9 / P3.9 / P4.8

V-Rhea Features

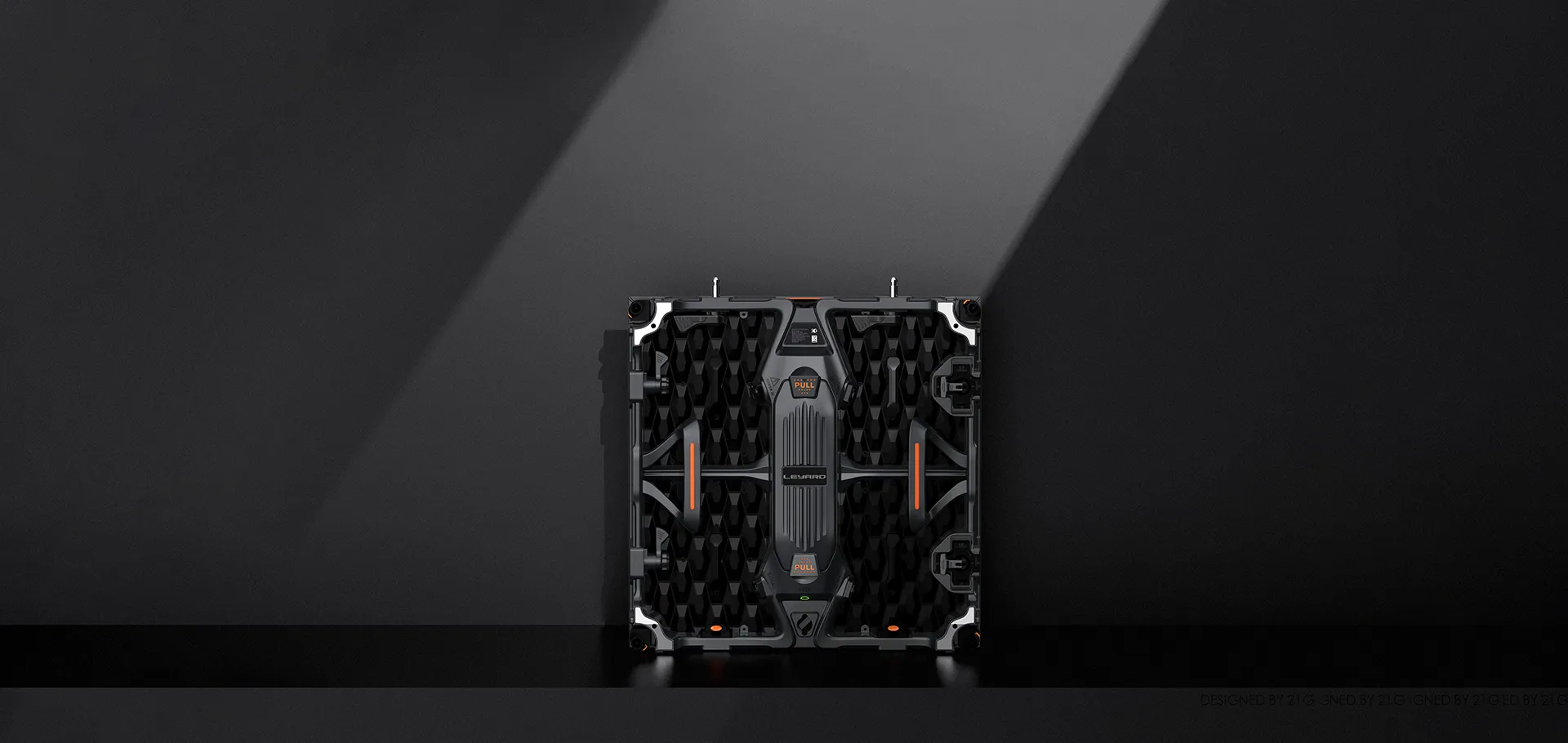

Light Weight
Lightweight and strong, die-cast aluminum frame with 8.6kg/panel
Light Weight

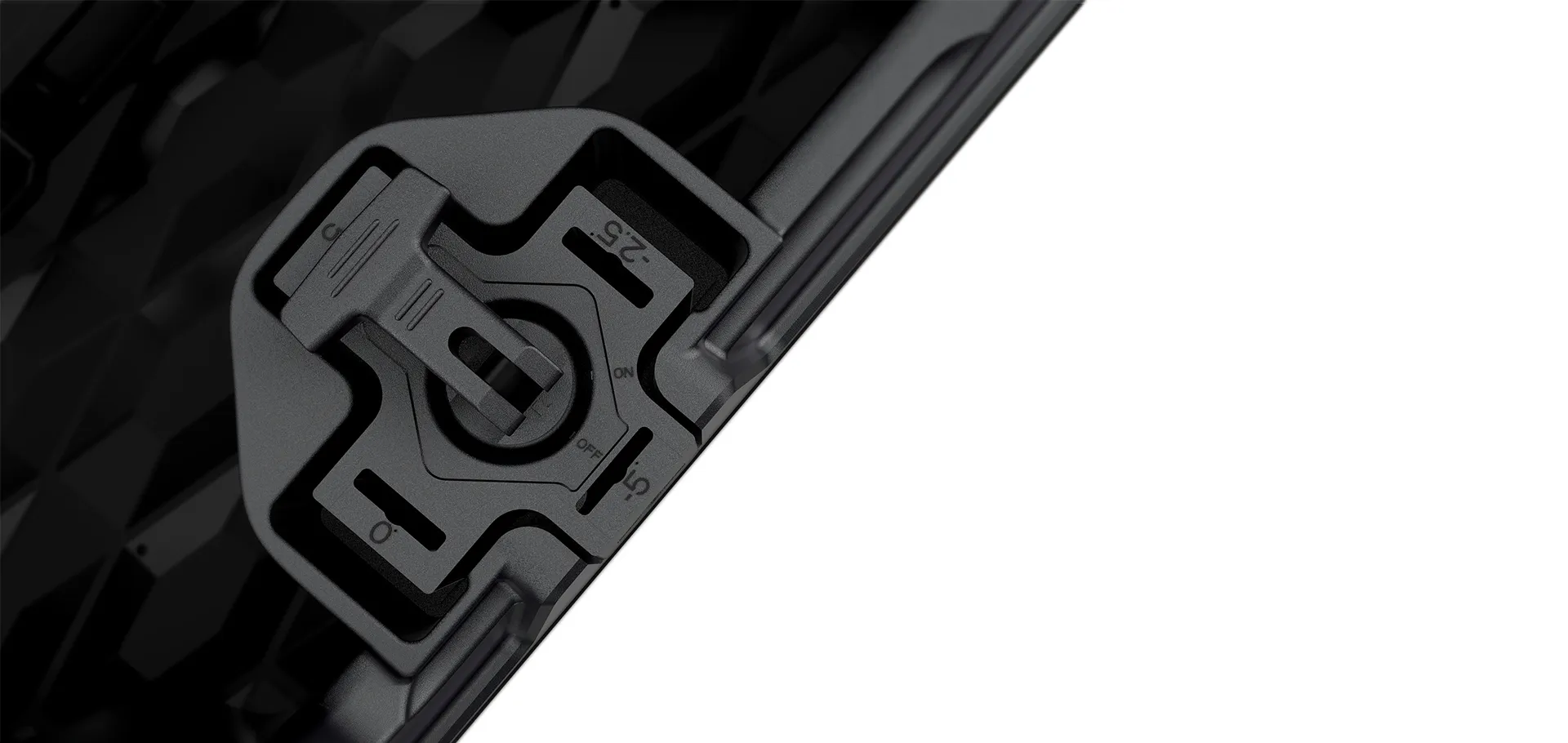

Internal and External Arc Design
Unique fast lock, easy and fast assembling, adopt 4 arcs (-5° -25° 0° 5°)
Internal and External Arc Design

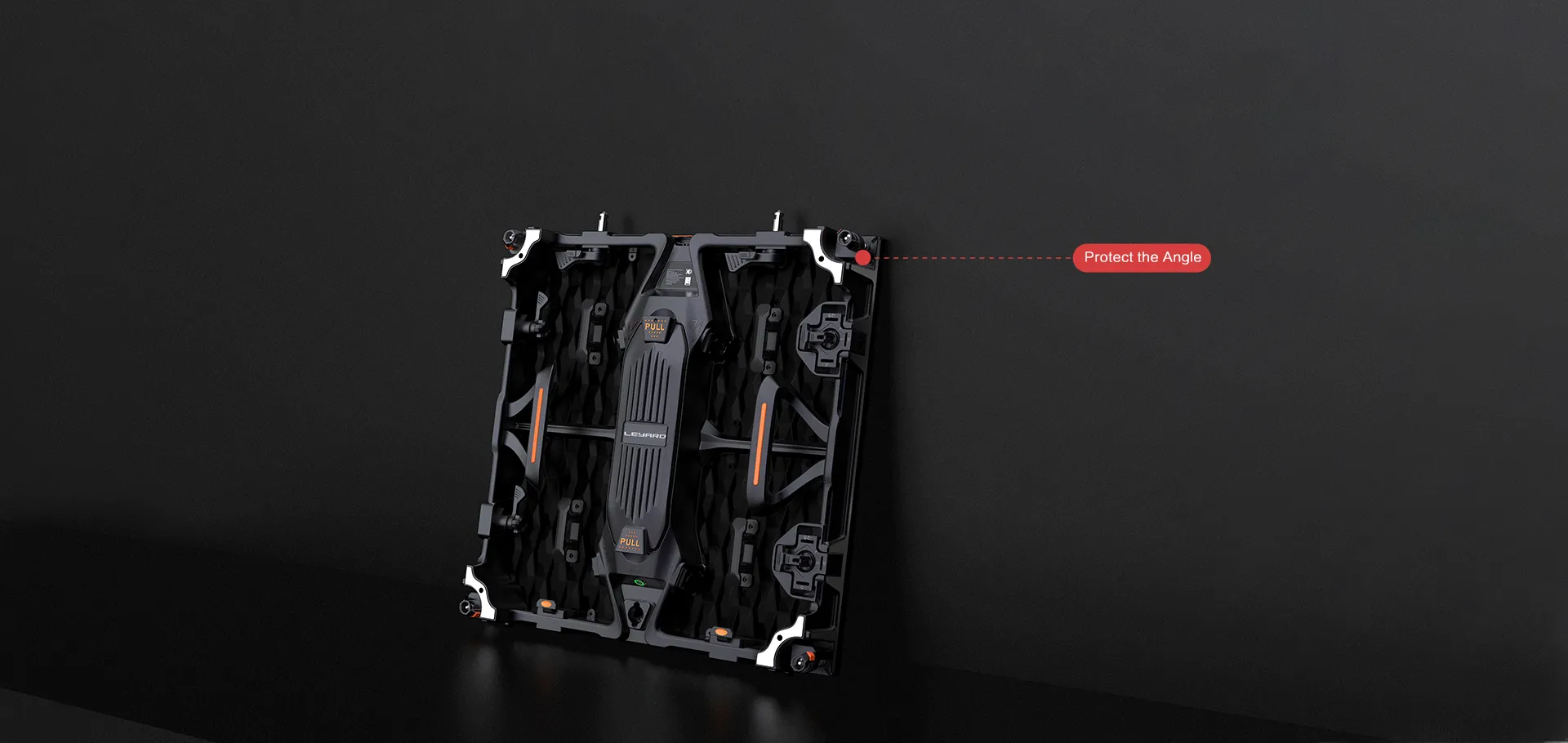

Protection Corner Design
Better protection for cabinet and module when standing and transporting
Protection Corner Design

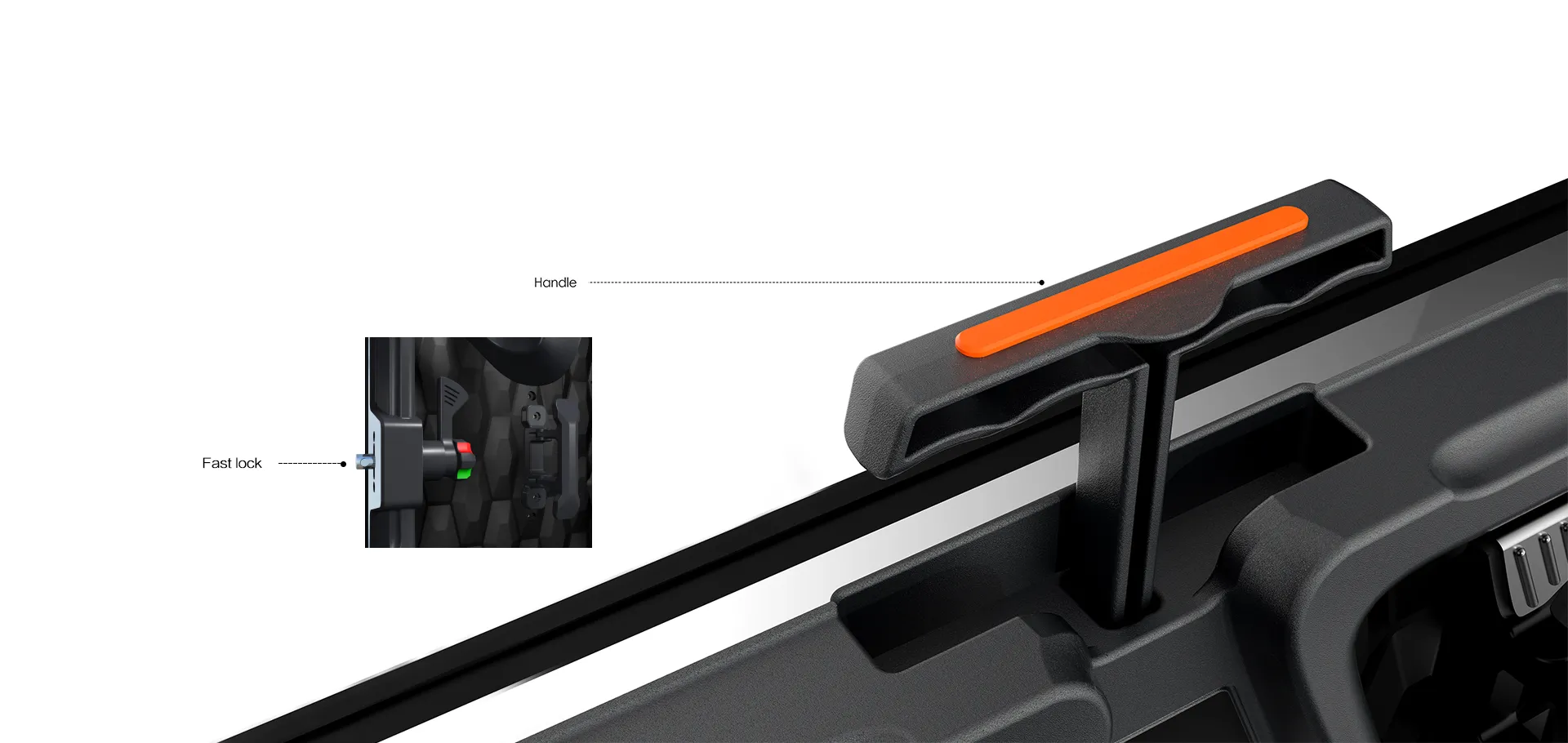

Quick Installation
Advanced locking system for quick and easy installation
Quick Installation

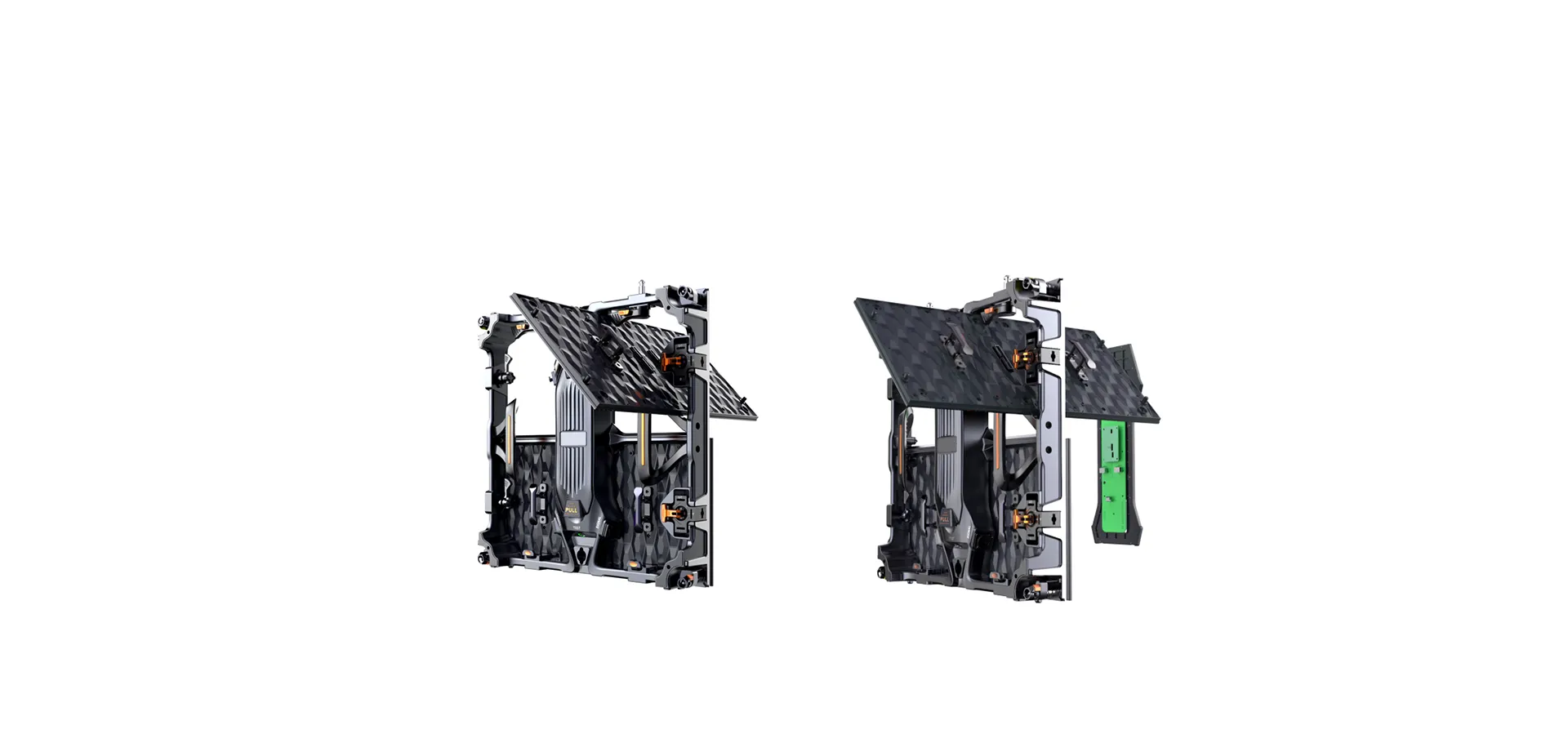

Front/Rear Service
Modular design, front and rear maintenance, independent disassembling cabinet
Front/Rear Service

V-Rhea Panel Specification

Part NumberV-Rhea-2.5V-Rhea-2.9V-Rhea3.9V-Rhea-4.8
Pixel Pitch2.5mm2.97mm3.91mm4.81mm
LED Configuration SMD1515SMD1515SMD2121SMD2121
Pixel Density 160000dot/m2112896dot/m265536dot/m243264dot/m2
Module Size500x250X15mm
Module Resolution 200x100dot168x84dot128x64dot104x52dot
Cabinet Size500x500x81mm
Cabinet Resolution 200x200dot168x168dot128x128dot104x104dot
Cabinet Weight 8.6kg /Panel
IP Rating ( front/back)IP30
EnvironmentINDOOR
Brightness 1000-1500CD/m21000-1500CD/m21000-1500CD/m21000-1500CD/m2


*Note: For more product materials, pleaseDownloadhere, or contact us directly
