Transparent LED Screen Display
+

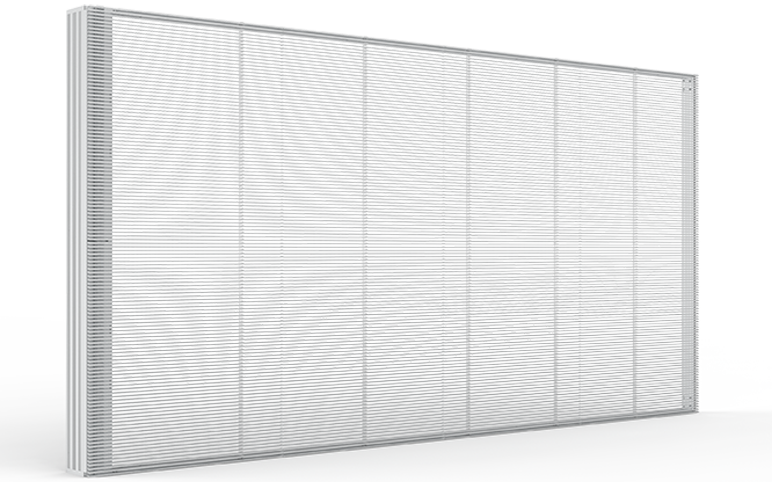

Isky LED Curtain Screen

Isky project series has Isky-N series (no tube) and Isky-T series( with tube). Leyard Vteam transparent led screen display is a kind of innovative transparent led display, which does not affect the building space and building lighting. Transparent led display panel has successfully realized commercial display, built new retail, new experience, and new business forms for smart cities, and integrated smart quotient into modern city.


Pixel Pitch:

Isky-N: P3.9-7.8, P7.8,  P10.4,  P12.5,  P15.6

Isky-T: P10.4,  P12.5,  P15.6

Features of LED Curtain Screen

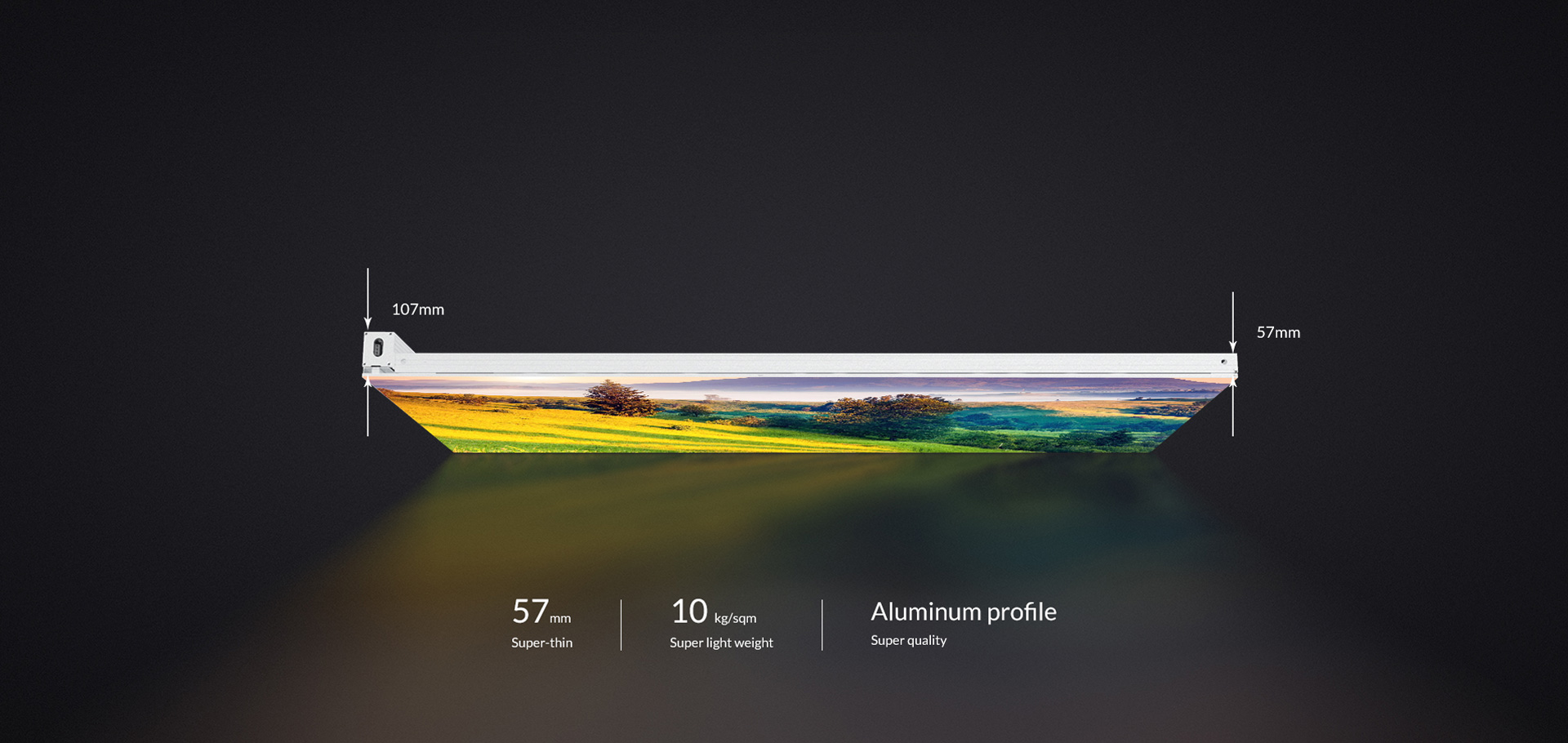

Simple And Stylish, Reflecting Technology First

Concealed cabinet series line, neat and beautiful
Simple And Stylish, Reflecting Technology First

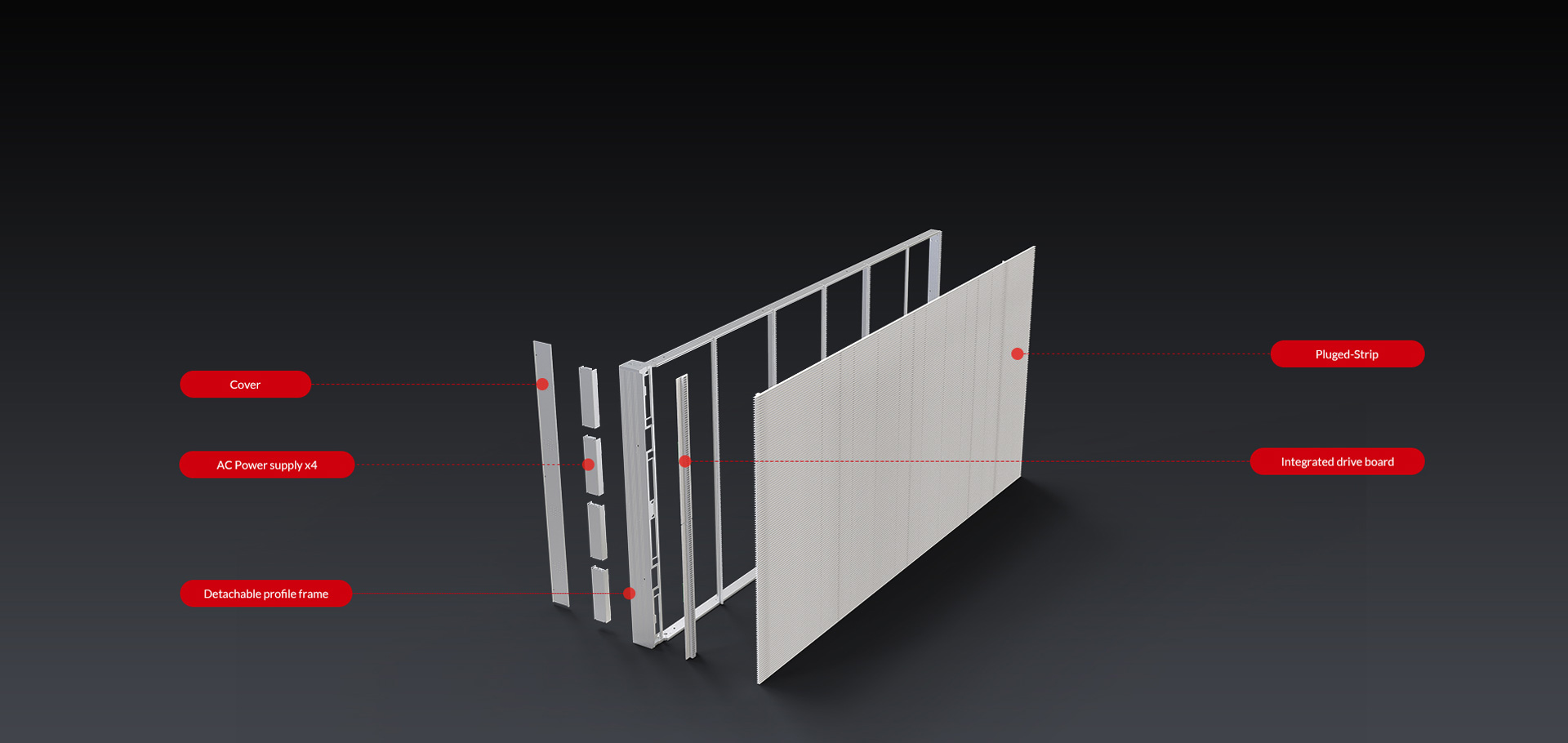

Product Structure

Product Structure

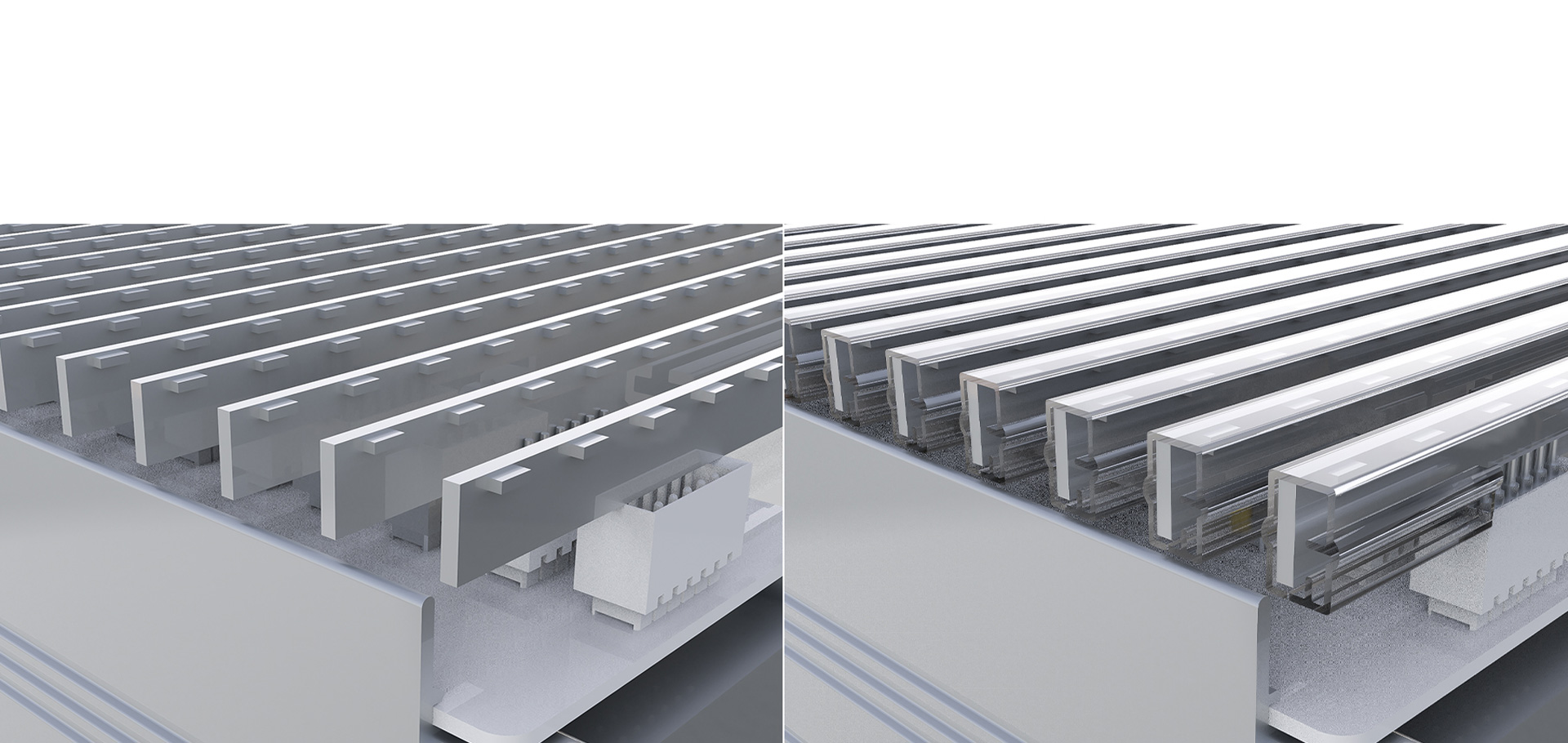

Isky-n Series (No Tube) & Isky-t Series( With Tube)

Isky-n Series (No Tube) & Isky-t Series( With Tube)

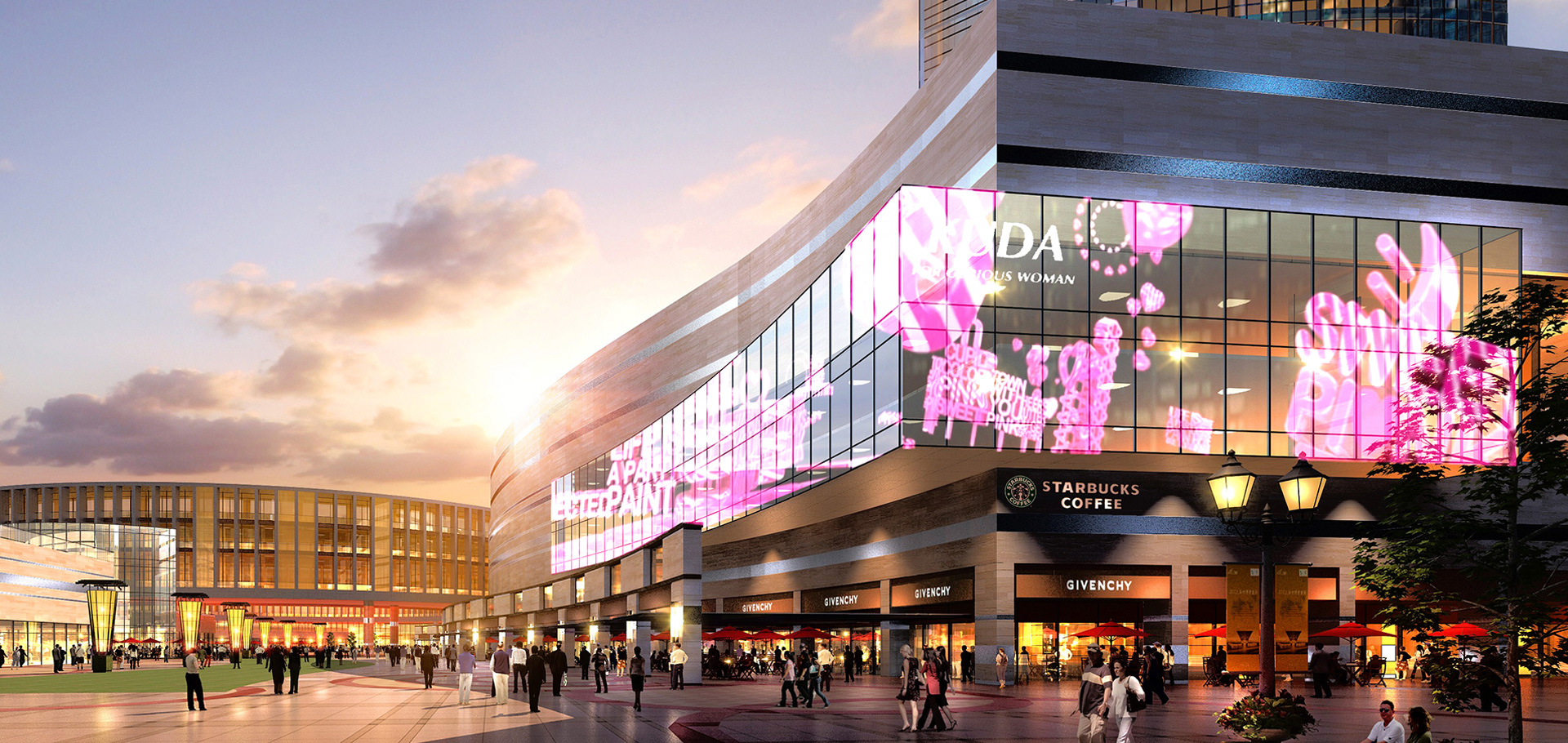

Super Transparecy | 75~90%

Side emitting, make the transparency over 90%
Super Transparecy | 75~90%

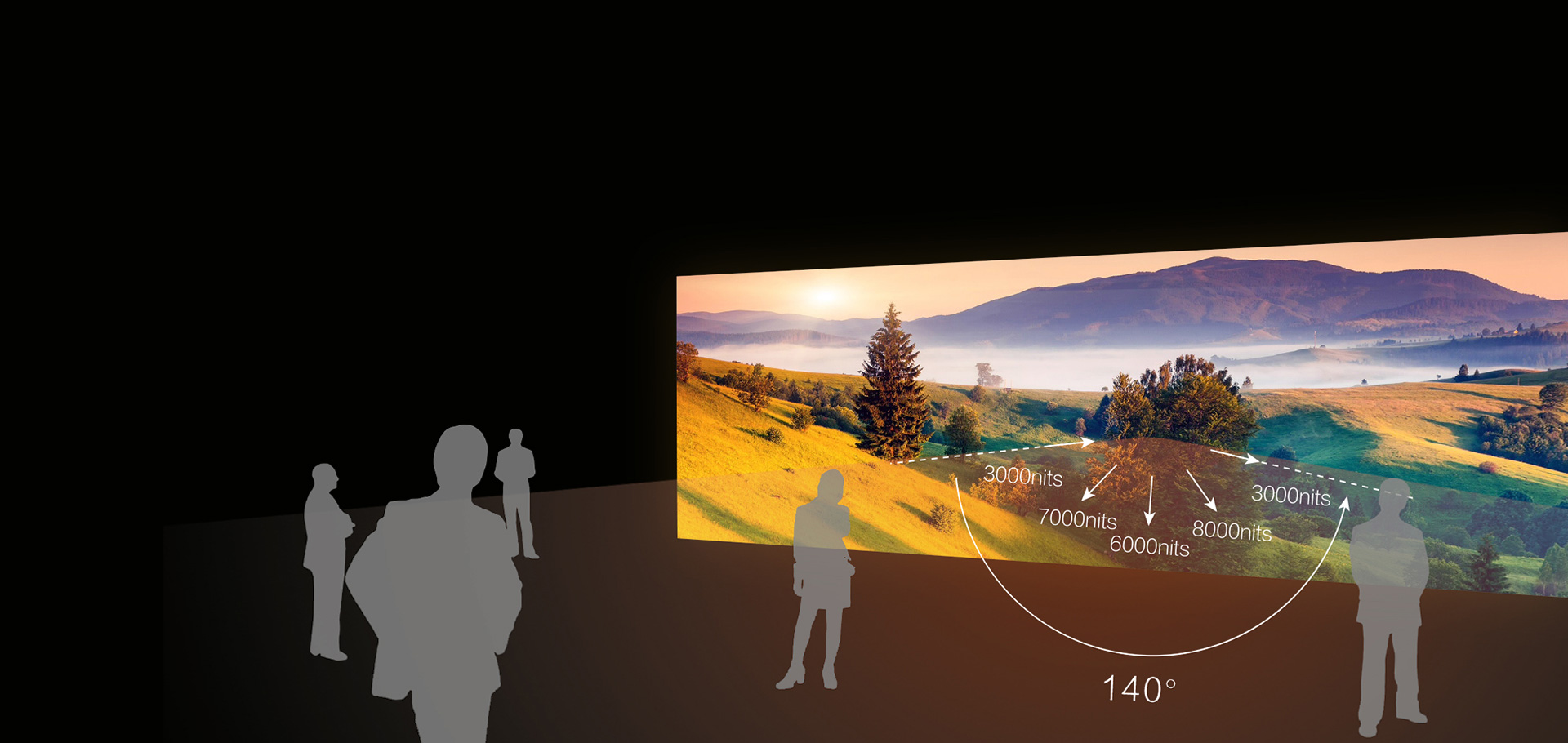

High Brightness | 6000nit/㎡ & Widen View

High brightness display, visible even in strong light, small-angle brightness loss, each side has different highlights
High Brightness | 6000nit/㎡ & Widen View

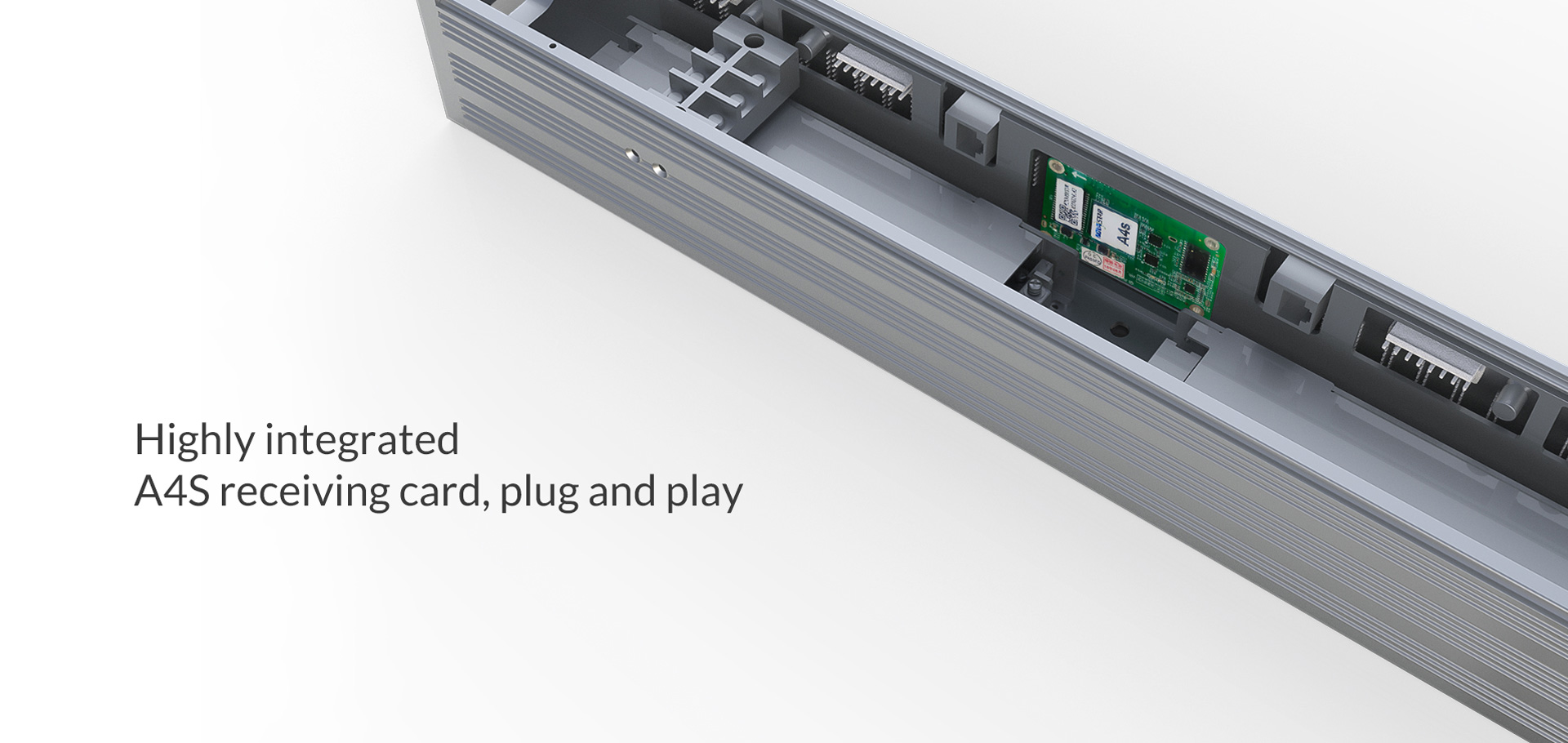

Highly Integrated

A4S receiving card, plug and play
Highly Integrated

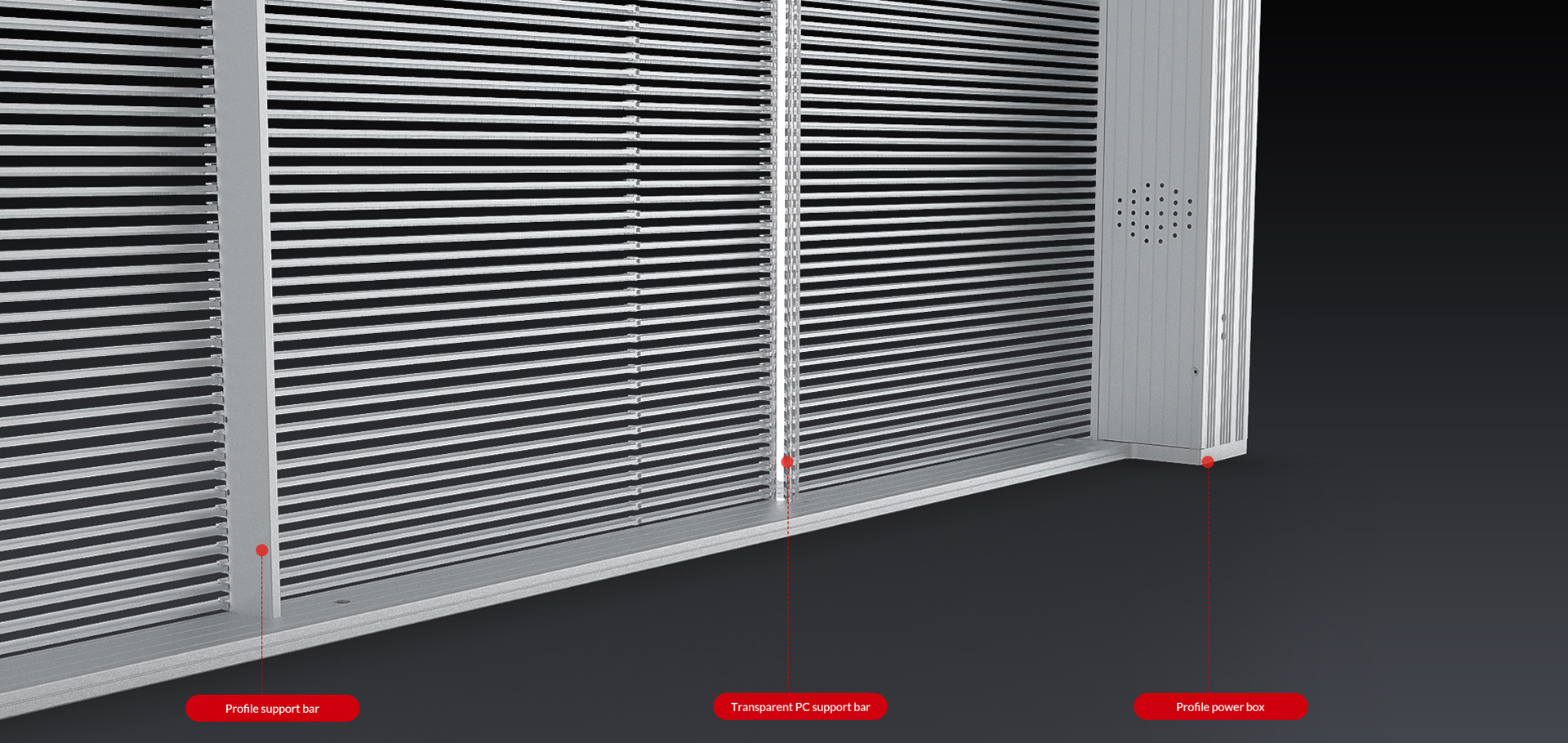

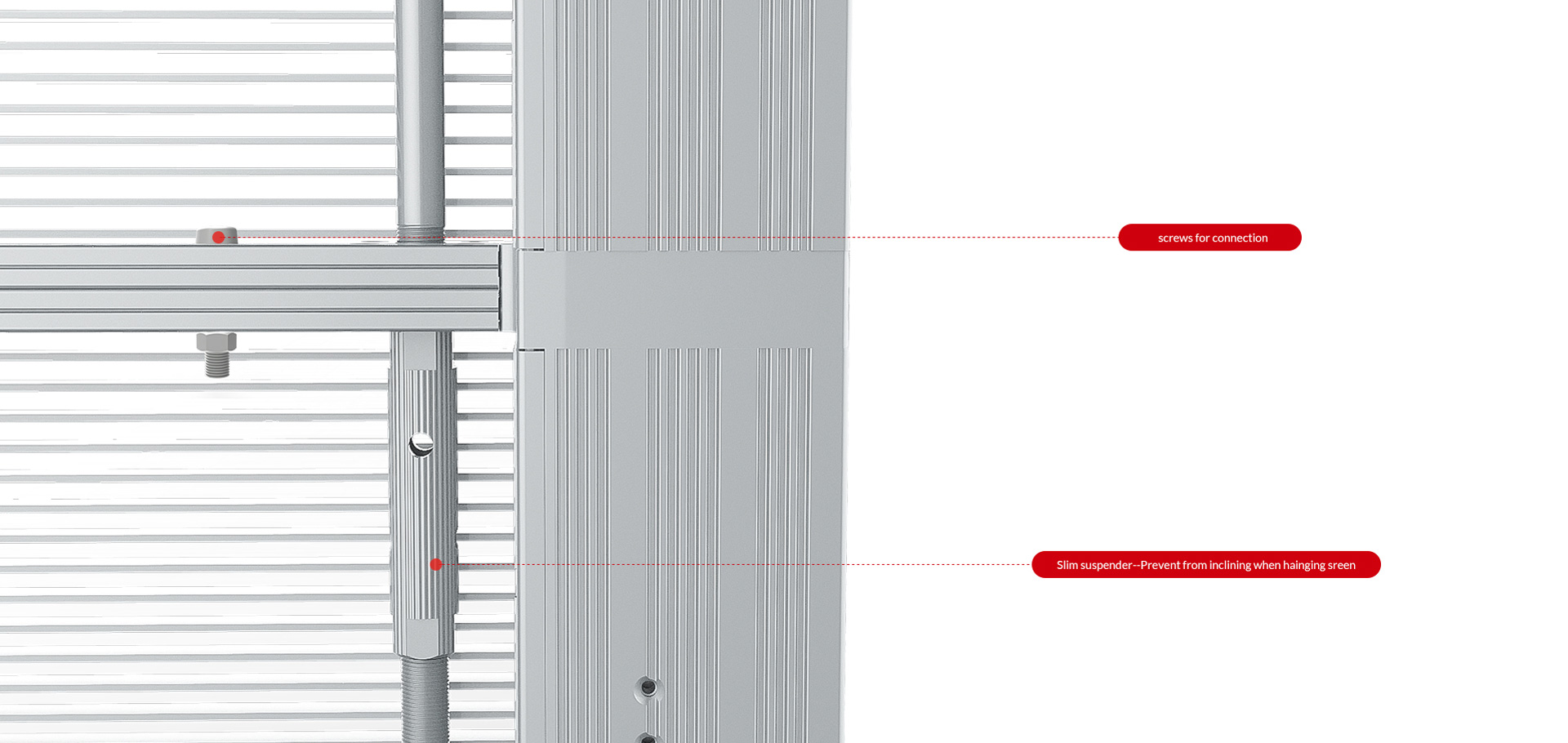

Details Show

Details Show

Details Show

Details Show

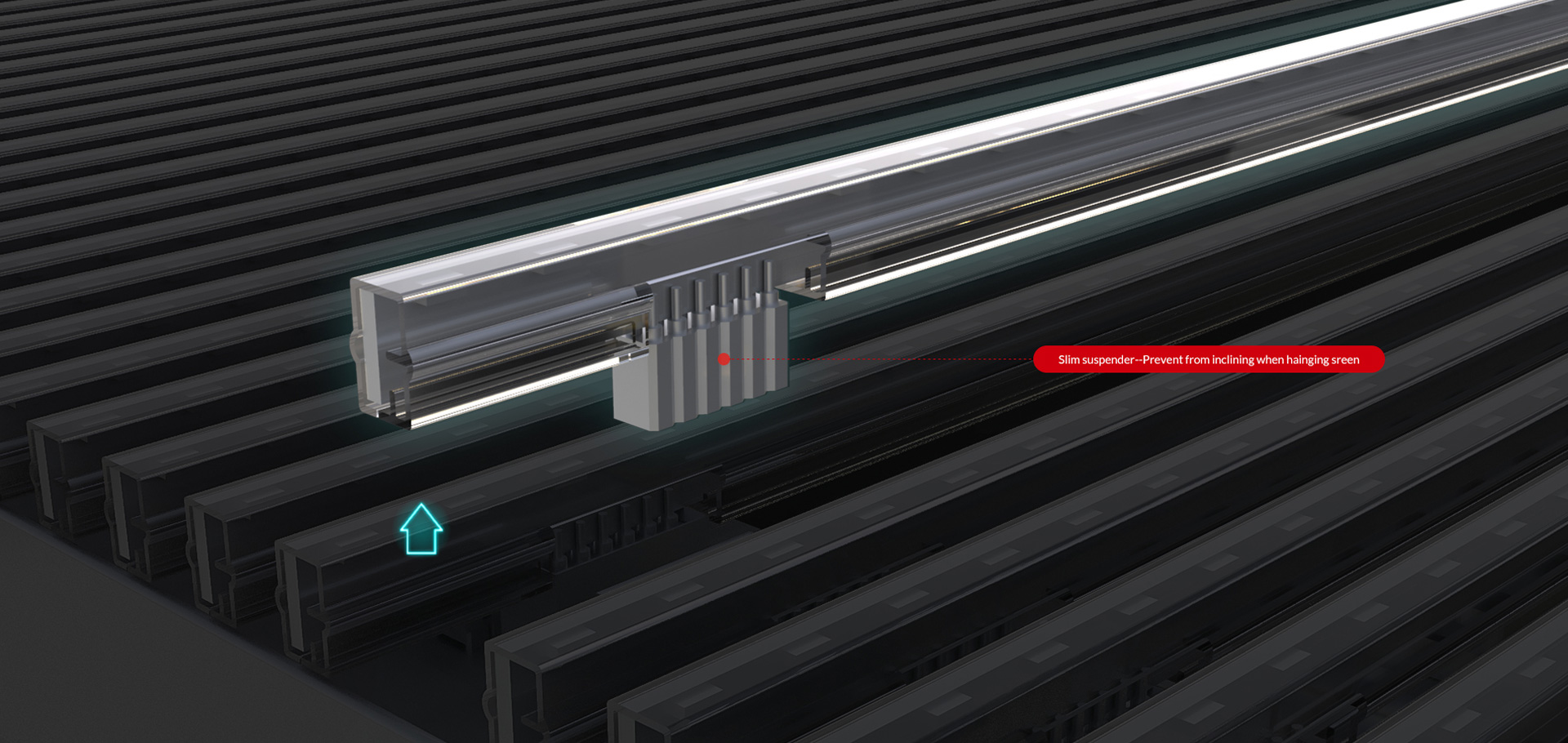

Maintenance Show

Maintenance Show

Isky Panel Specification

Part NumberIsky-N3.9Isky-N7.8Isky-N10.4Isky-N12.5Isky-N15.625Isky-N20.8Isky-T10.4Isky-T12.5Isky-T15.625Isky-T20.8
Pixel Pitch (H/V)3.9683mm/7.8125mm7.9365/7.8125mm10.4167mm12.5mm15.625mm20.8332mm10.4167mm/12.5mm12.5mm15.625mm20.8332mm
LED ConfigurationSMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDESMD3510 SIDE
Brightness5000~5500CD/m25000~5500CD/m25000~5500CD/m25000~5500CD/m25000~5500CD/m23500~4000CD/m25000~5500CD/m25000~5500CD/m25000~5500CD/m23500~4000CD/m2
Pixel Density32256dot/m216128dot/m29216dot/m26400dot/m24096dot/m22304dot/m27680dot/m26400dot/m24096dot/m22304dot/m2
Transparency≧75%≧75%≧80%≧85%≧90%≧92%≧80%≧85%≧90%≧92%
Cabinet Size2000*1000*57mm
Cabinet Resolution504*128dot252*128dot192*96dot160*80dot128*64dot96*48dot192*80dot160*80dot128*64dot96*48dot
Cabinet Weight13kg/m213kg/m212kg/m212kg/m210kg/m210kg/m212kg/m212kg/m211kg/m211kg/m2
IP Rating ( front/back)IP30IP43


*Note: For more product materials, pleaseDownloadhere, or contact us directly
