VTX Ultra Thin Film Series

Flexible transparent LED film screen that can be pasted directly has the characteristics of bending, cutting, not limited by size and shape, adapting to arc structure, ultra-light and ultra-thin, high permeability and so on. It relies on the appearance of almost invisible energy saving, safety and beauty and other advantages, can enhance the sense of science and technology of the business environment, modern sense, render atmosphere, attract people. It can create high-tech intelligent display playing platform, commercial value is huge.


Point spacing:

P3.9-7.8, P7.8 P5.2-10.4, P10.4


VTX Features

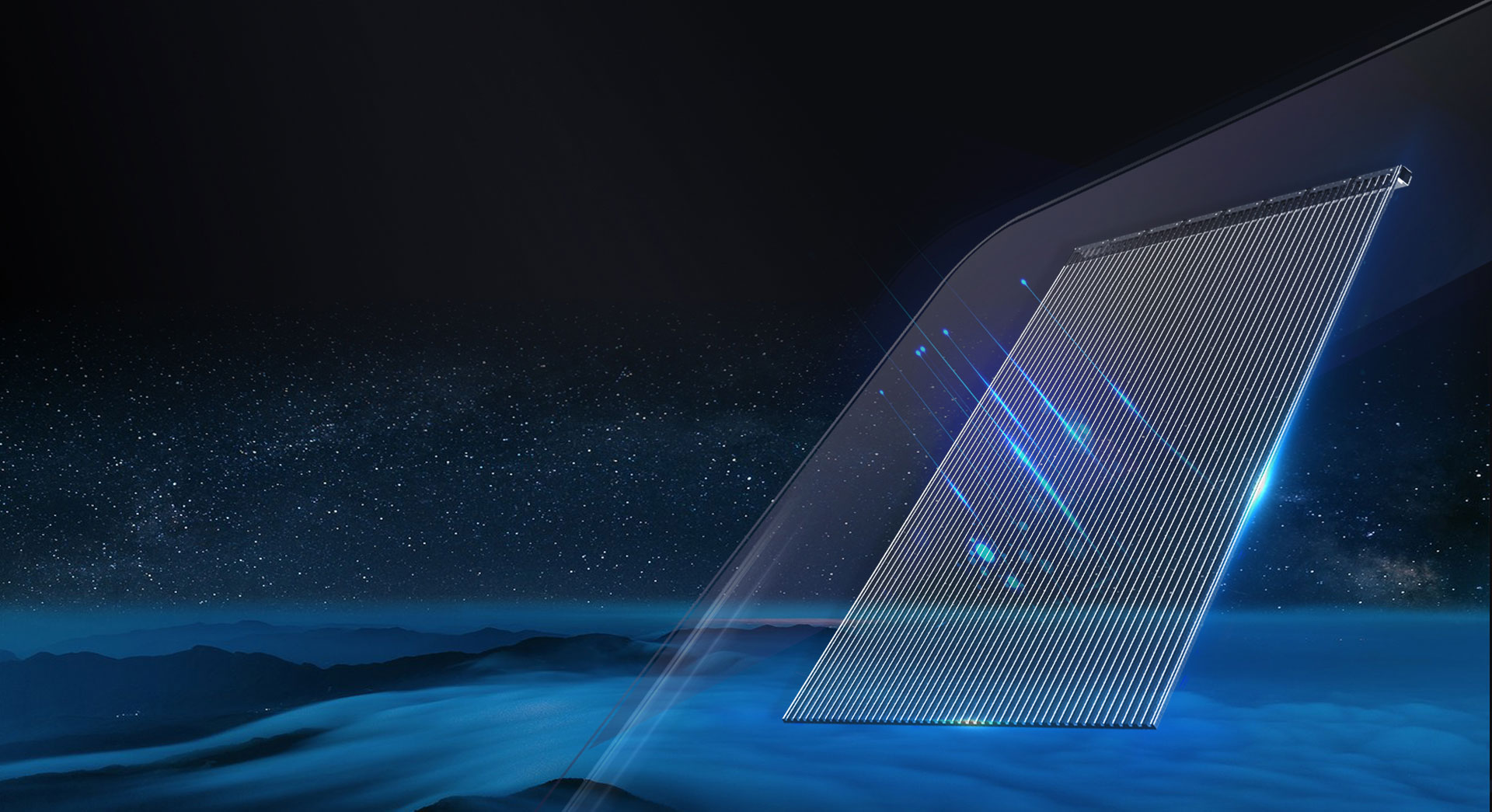

VTX film screen series
can be attached to glass As thin as paper, qiuckly stick and use
VTX film screen series

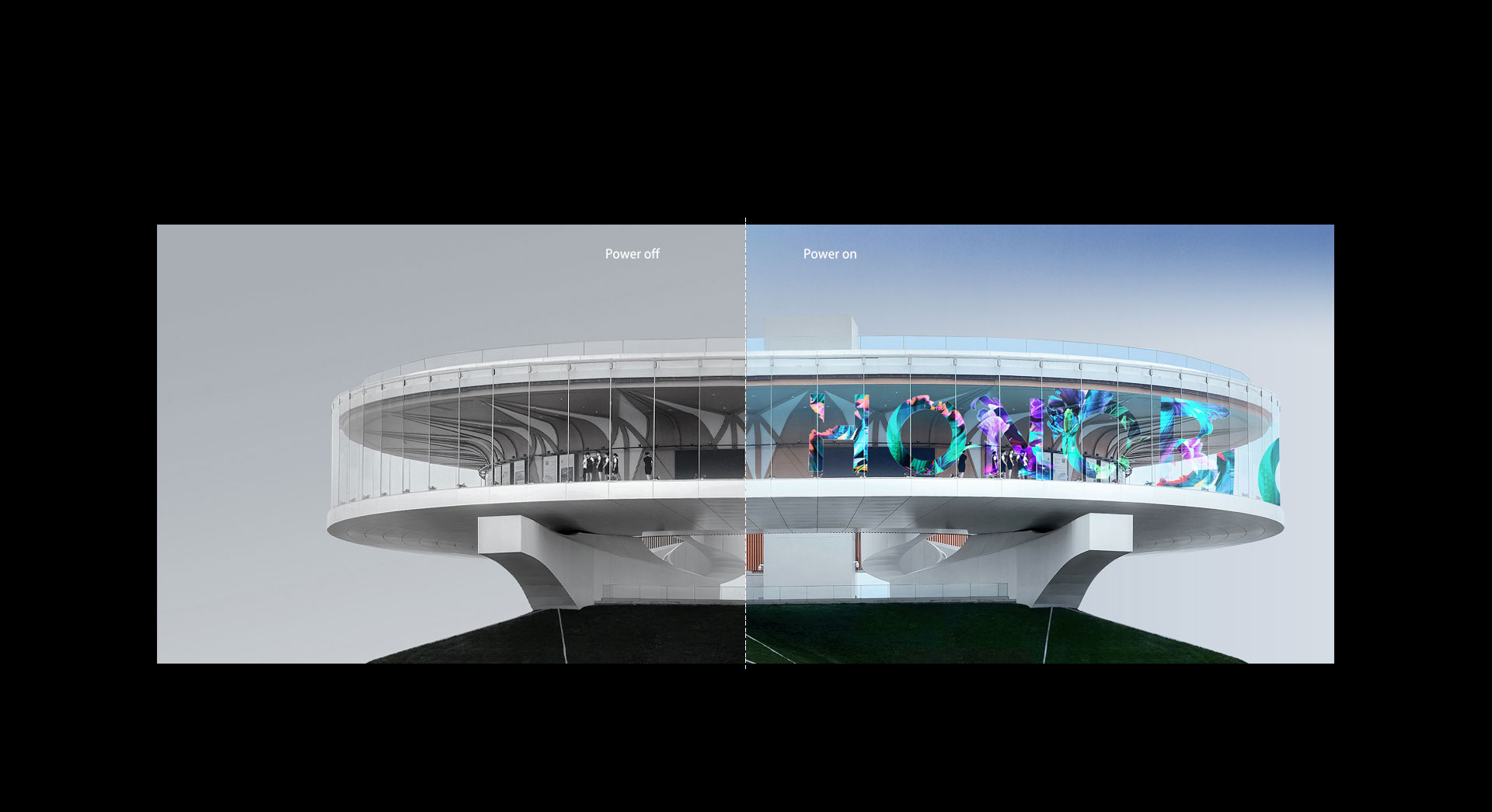

Transparent Display
High permeability, not change the original design structure, not affect the daily lighting. You can hardly see the screen, which is perfectly integrated into the glass when the screen stops working,
Transparent Display

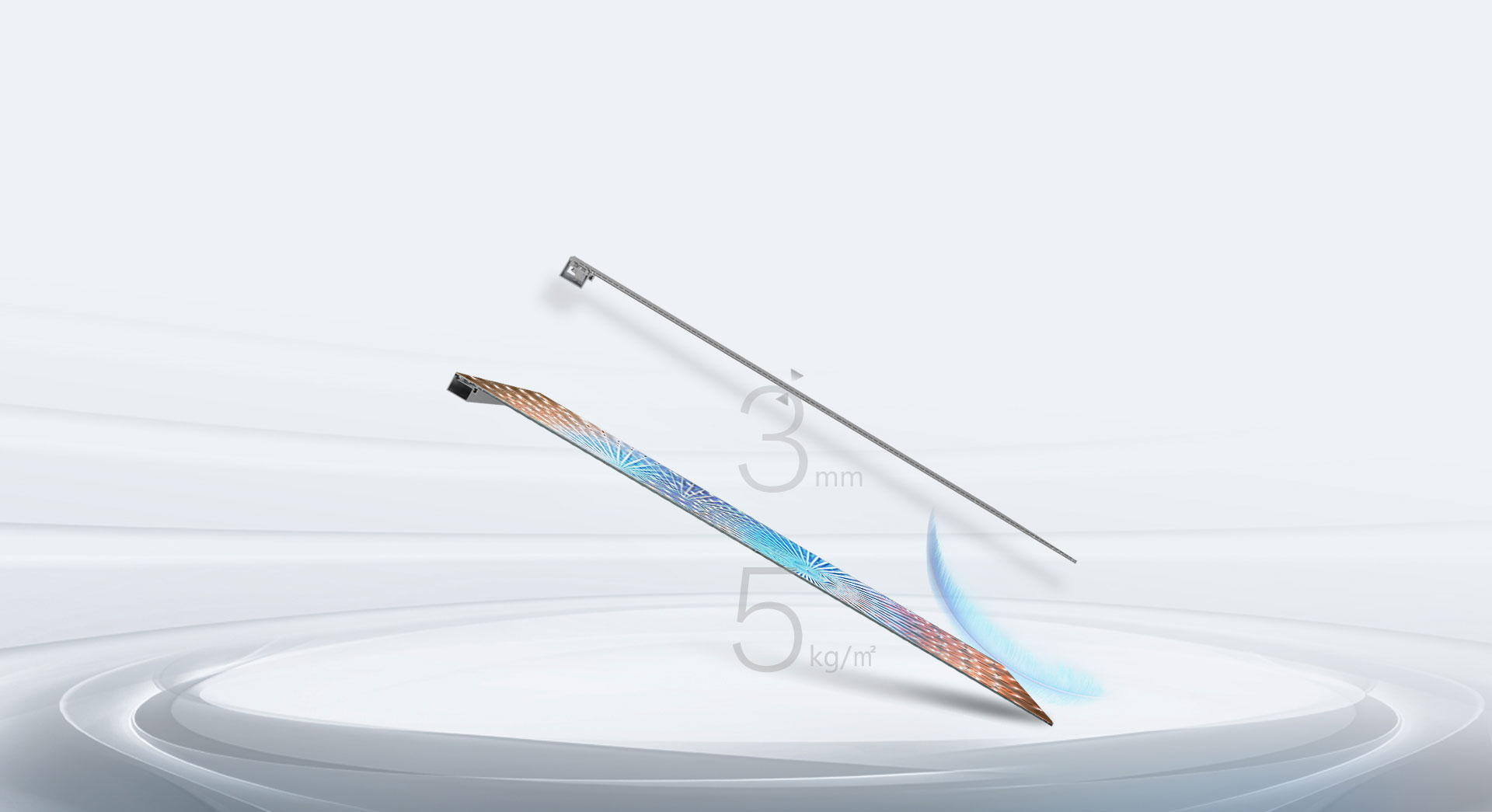

Super Light and Thin
As thin as a wallpaper with a thickness of only 3mm and a weight of up to 5kg/㎡
Super Light and Thin
Flexible
No matter inside arc type, outside arc type, or 90° corner or 270° curved surface, ultra-thin film screen can bend freely, bringing unexpected stereo vision surprise
Flexible
Cuttable
Support arbitrary cutting, not limited by size and shape, to meet different requirements to meet the size of more creative display
Cuttable
Wide Viewign Angle
160° for each angle, no dead Angle and no color bias. Covering people in a larger area and attracts people and traffic in a wider area
Wide Viewign Angle

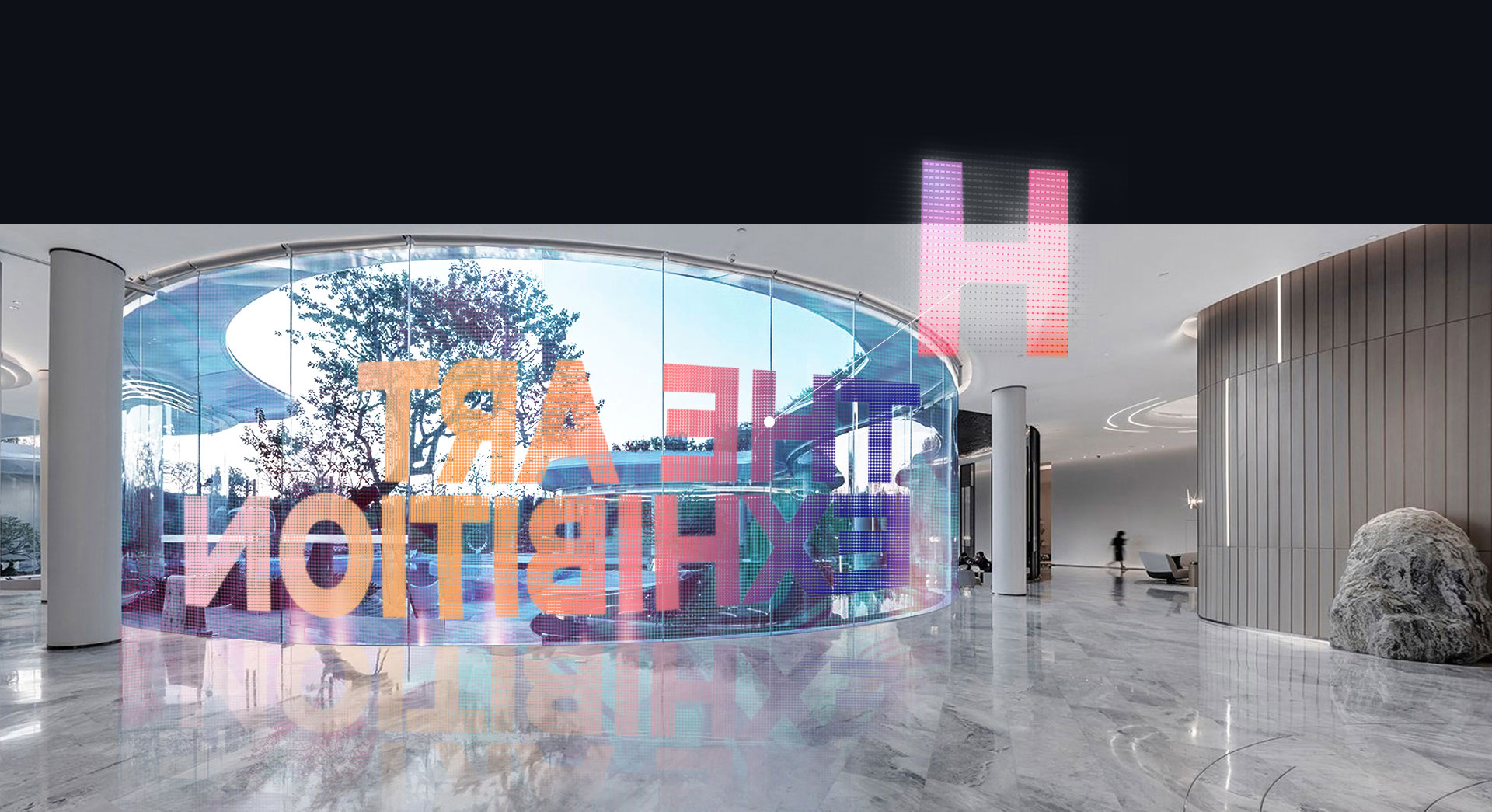

Safe and Beautiful
No components on the screen, hidden power supply, safe and reliable, clean and beautiful
Safe and Beautiful

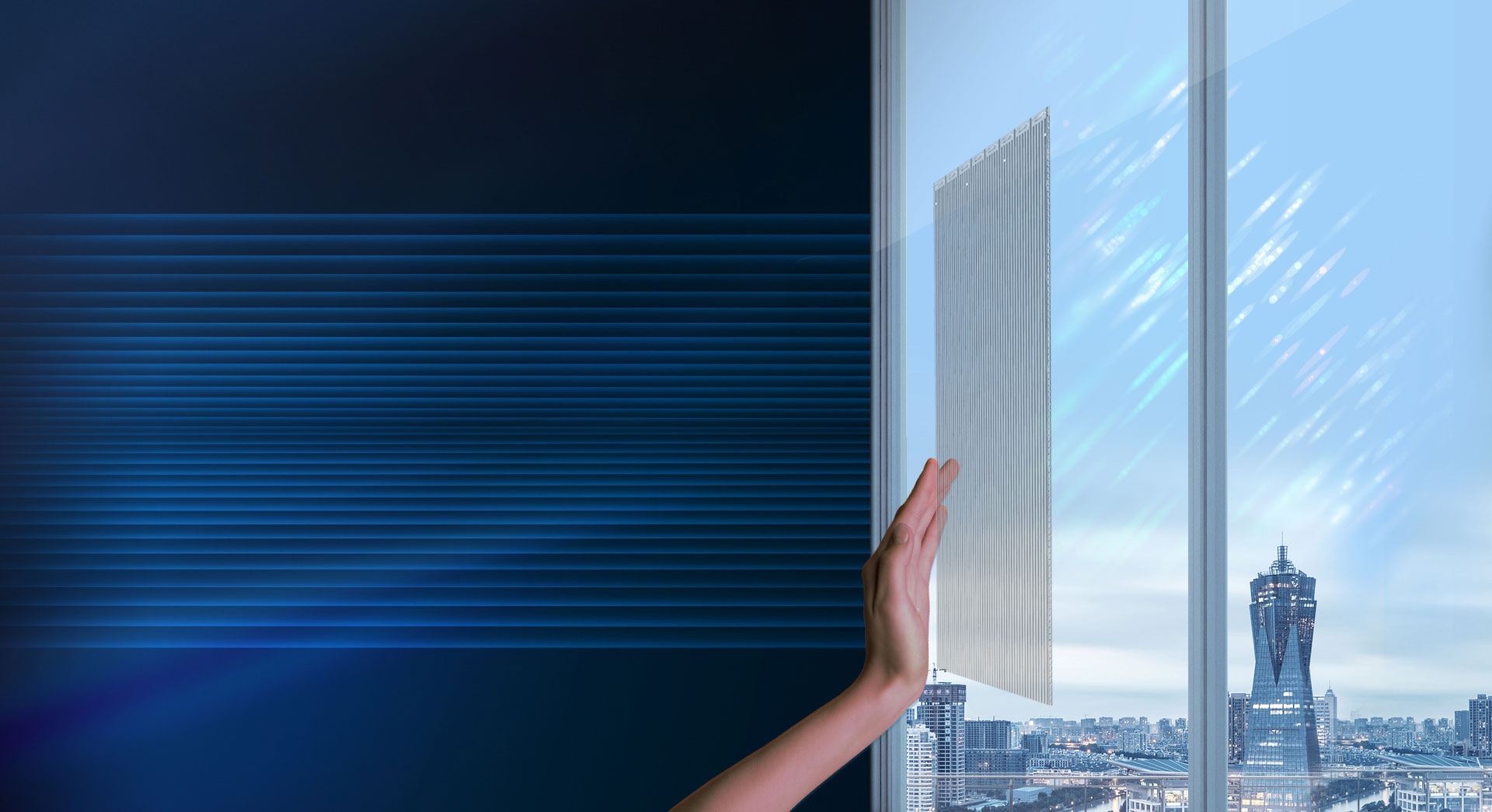

Minimal Quick Installation
Simple and fast. Simply tear off the film and stick it on the glass to complete the installation
Minimal Quick Installation

VTX Series Specification

Part NumberVTX 3.9-7.8VTX 7.8VTX 5.2-10.4VTX 10.4
Pixel Pitch (H/V)H:3.90625mm;   V:7.8125mmH:7.8125mm;   V:7.8125mmH:5.20833mm;   V:10.41666mmH:10.41666mm;   V:10.41666mm
LED ConfigurationSMD(1R1G1B)SMD(1R1G1B)SMD(1R1G1B)SMD(1R1G1B)
Brightness2000-4000CD/m22000-4000CD/m22000-4000CD/m22000-4000CD/m2
Pixel Density32768dot/m216384dot/m218432dot/m29216dot/m2
Transparency≤60%≤60%≤70%≤70%
Module size1000*500*5mm  Box(without power supply: 40mm, with power supply: 80mm)
Module resolution256*64128*64192*4896*48
Film thickness≤3mm≤3mm≤3mm≤3mm
Membrane weight≤3.5 kg/Panel≤3.5 kg/Panel≤3.5 kg/Panel≤3.5 kg/Panel
IP Rating ( front/back)IP30IP30IP30IP30


*Note: For more product materials, pleaseDownloadhere, or contact us directly
